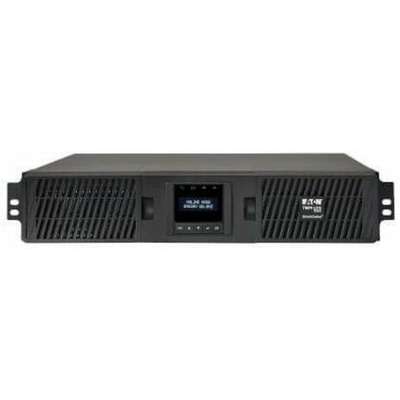

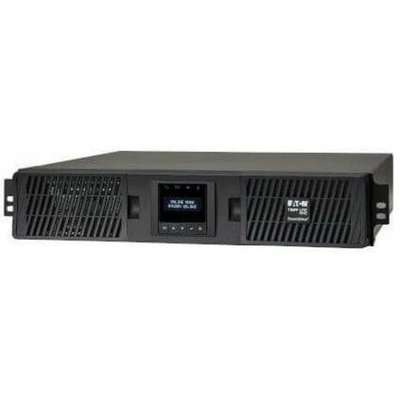

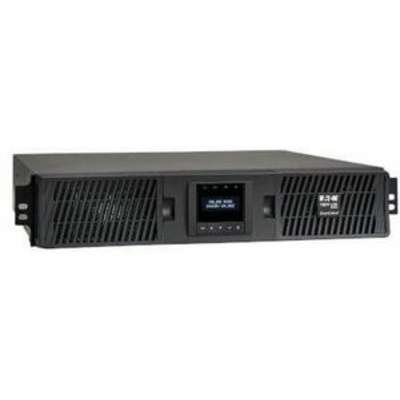

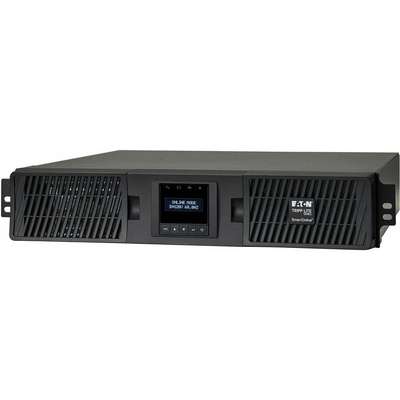

Tripp Lite SMART ONLINE UPS 2200VA 120V RM 1800W 2U LCD USB DB9 7 OUT

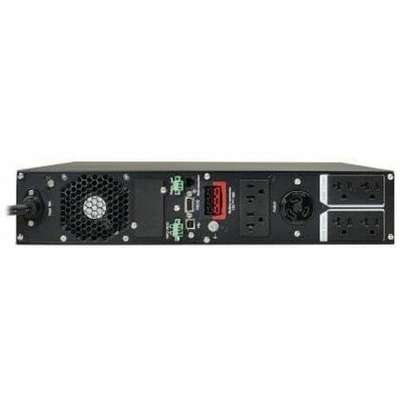

Rear View
Updated design for 2023
Protects equipment against blackouts, brownouts, transient surges and line noise
Keeps equipment running during outages to allow time for file saves and safe shutdown
Zero transfer time between on-line and battery modes for uninterrupted operation
Included WEBCARDLXE network card enables full remote access and control 24/7
Menu-driven LCD keeps you up to date with status info and other vital analytics
SmartOnline SU2200RTXLCDN 2000VA Rack/Tower UPS
WEBCARDLXE Network Management Card
USB Cable
DB9 RS232 Cable
Rack-mounting Hardware

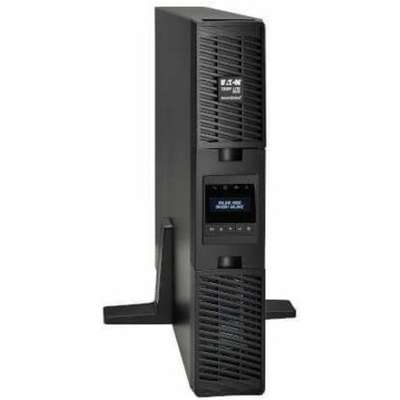

Tower Support Stands
Safety Instructions
Quick Start Guide
Product Name: SMART ONLINE UPS 2200VA 120V RM 1800W 2U LCD USB DB9 7 OUT
Product Type: Double Conversion Online UPS
Phase: Single Phase
Receptacle Type: NEMA 5-20RNEMA L5-20R
Product Family: SmartOnline
Backup / Run Time (Half Load): 20.20 Minute
Backup / Run Time (Full Load): 7.70 Minute
Load Capacity (VA): 2000 VA
Load Capacity (Watt): 1800 W
Replaceable Battery: Yes
Energy Star: Yes
Receptacle Detail: 6 x NEMA 5-20R1 x NEMA L5-20R
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Restriction of Hazardous Substances (RoHS)
Rack Height: 2U

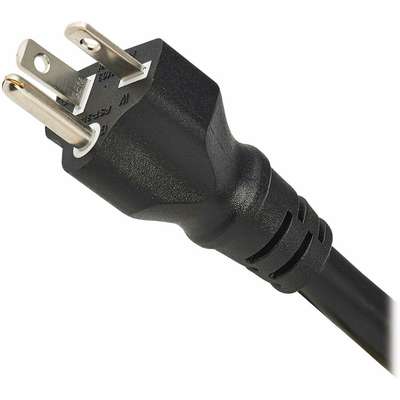

Plug / Connector Type: NEMA 5-15P

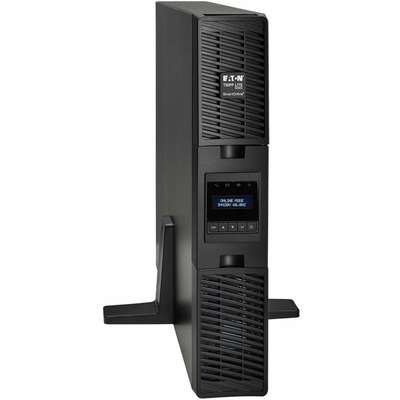

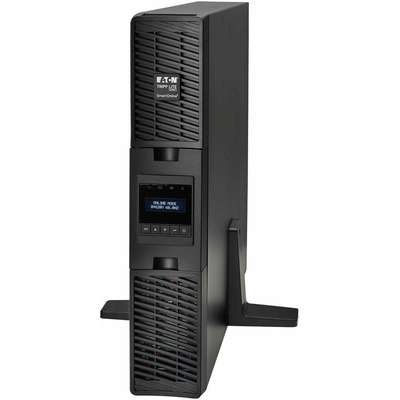

Form Factor: Rack/Tower
Network Management: SNMP
Waveform Type: Pure Sine Wave
Hot Swappable: Yes
Input Voltage: 120 V AC
Battery Chemistry: Lead Acid
Input Frequency: 60 Hz
Environmentally Friendly: Yes
USB: Yes
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Serial Port: Yes
Battery Characteristics: Valve-regulated
EMI / RFI Noise Filter: Yes
DC System Voltage: 72 V DC
Energy Saving: High efficiency economy mode operation; Individually controllable load banks
Maximum Operating Elevation: 9842.52 ft
Storage Temperature: 32°F (0°C) - 104°F (40°C)
Transfer Time: 0 ns
Typical Battery Recharge Time: 3 Hour
Input Power Factor: 0.99
Output Power Factor: 0.9
Country of Origin: China
Height: 3.4"
Width: 17.3"
Depth: 23.8"
Output Frequency: 60 Hz
Alarm: Remote ShutdownUPS StartUpPower FailureOverloadUPS FaultLow Battery
Status Indicators: 4 x status-indicating LEDs
Product Model: SU2200RTXLCDN
Overload Protection: Yes
Product Line: SmartOnline
Display: LCD
Surge Energy Rating: 190 J
Sound Emission: 47 dB
Limited Warranty: 2 Year
Output Voltage: 100 V AC110 V AC115 V AC120 V AC127 V AC
Manufacturer: Tripp Lite
Manuf Part#: SU2200RTXLCDN
Price: $1609.26
Availability: In Stock
