TRENDnet 10-Port Industrial EN 50155 M12 Gigabit PoE+ Railway Switch

Power over Ethernet (PoE+) Eight M12 gigabit PoE+ ports on this M12 PoE+ switch deliver up to 30W of PoE+ power per port with a total power budget of 200W @ 56V DC
EN 50155 Compliance This industrial EN 50155 Ethernet switch is certified for railway and rolling stock applications (EN 50155, EN 50121-3 / EN 50121-4)
Extreme Temperature Range An extreme operating temperature range of -40° - 75° C (-40° - 167° F) allows for installations in extreme hot or cold environments
Power Supports an input voltage range from 24 - 56V DC with M12 interfaces for moving bus, train, automobile, and other rolling stock applications
Shock and Vibration Resistant Rated for a high-degree of shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6) Wall Mount
Wall mounting design
DIN-Rail IP40 rated metal enclosure with included DIN-Rail
Switching Capacity 20Gbps switching capacity
Jumbo Frame Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
Grounding Point Grounding point protects the M12 Ethernet switch from external electrical surges
10-Port Industrial EN 50155 M12 Gigabit PoE+ Railway Switch
Quick Installation Guide
Wall Mount and DIN-Rail kit
Product Name: 10-Port Industrial EN 50155 M12 Gigabit PoE+ Railway Switch
Product Type: Ethernet Switch
Ethernet Technology: Gigabit Ethernet
Media Type Supported: Twisted Pair
Total Number of Network Ports: 10
PoE (RJ-45) Port: Yes
TAA Compliant: Yes
Form Factor: Wall MountableDIN Rail Mountable
Power Consumption: 5.76 W
Power Source: DCPoE+
Layer Supported: 2

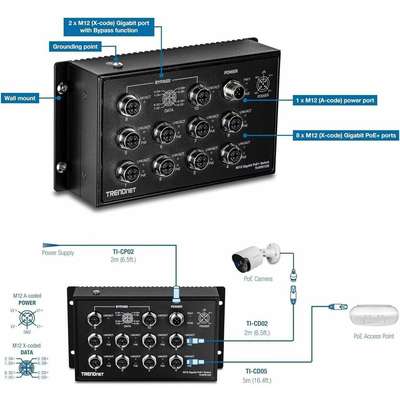

Port / Expansion Slot Details: 8 x M12 (X-code) Gigabit PoE+ ports2 x M12 (X-code) Gigabit Ports with Bypass Function1 x M12 (A-code) Power Port
PoE Budget: 200 W
Networking Standards: IEEE 802.3IEEE 802.3uIEEE 802.3abIEEE 802.3xIEEE 802.3afIEEE 802.3at
Product Material: Metal
Country of Origin: Taiwan
Height: 2"
Width: 6.3"
Depth: 3.8"
Product Model: TI-XPG102
Network Technology: 10/100/1000Base-T
Input Voltage: 24 V DC56 V DC
Limited Warranty: Lifetime
Number of M12 Connectors: 10
MTBF: 510037 Hour
Manufacturer: TRENDnet
Manuf Part#: TI-XPG102
Price: $724.14
Availability: In Stock
