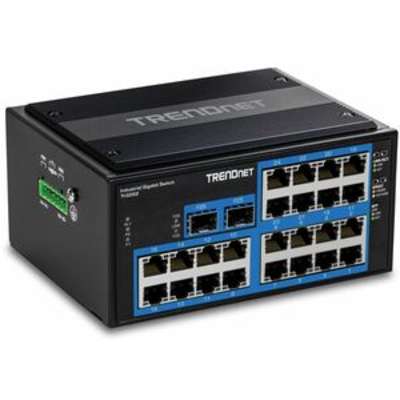

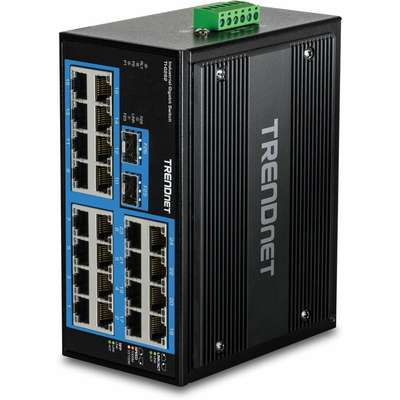

TRENDnet 26-Port Hardened Industrial Gigabit DIN-Rail Switch

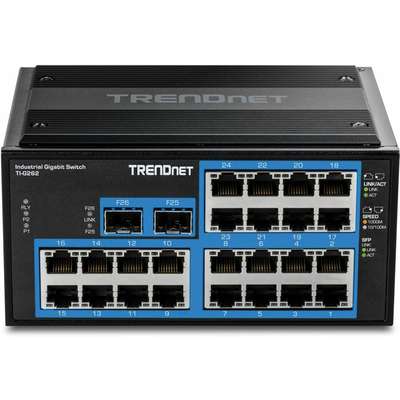

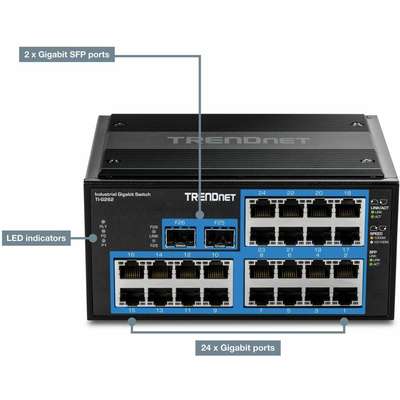

Gigabit Ports: Industrial switch features gigabit RJ-45 ports for high-speed device connections, and gigabit SFP ports that support long distance fiber networking applications

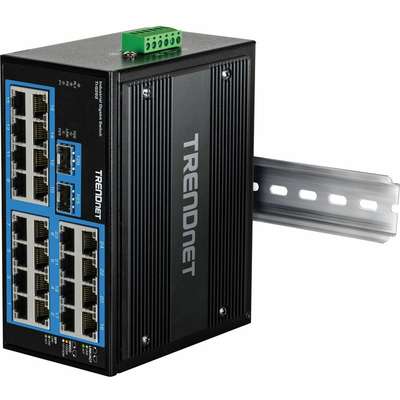

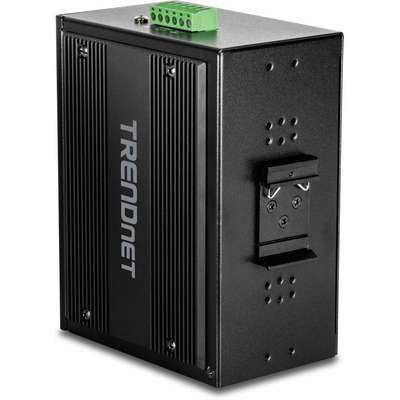

DIN-Rail / Wall Mounts: IP30 rated metal enclosure on the industrial switch with included DINRail mount and wall mount hardware
Alarm Relay: Alarm relay triggered by power failure of primary and/or redundant power
Jumbo Frame: Supports larger packets, or Jumbo Frames (up to 9KB), for increased performance
Shock and Vibration Resistant: Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Electro Magnetic Compliance: Complies with industrial EMS certifications (IEC 61000-4-2) ESD: Contact: 6kV | Air: 8kV, (IEC 61000-4-4) EFT: Power: 2kV | Signal: 2kV, (61000-4-5) Surge: Power: 2kV | Signal: 2kV
Redundant Power: Multiple power inputs provide redundant power with overload current protection (power supply sold separately, models: TI-M6024, TI-S15052)
Extreme Temperature Range: Operating temperature range of -40° - 75° C (-40° - 167° F) allows for installations in environments with extreme hot or cold conditions
Grounding Point: Grounding point for high voltage protection
Switching Capacity: 52Gbps switching capacity
26-Port Hardened Industrial Gigabit DIN-Rail Switch
Quick Installation Guide

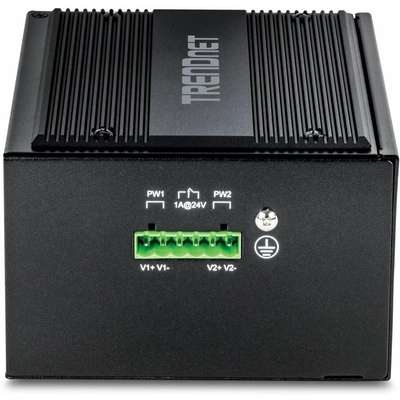

Removable Terminal Block
DIN-Rail / Wall Mount Kit
Product Name: 26-Port Hardened Industrial Gigabit DIN-Rail Switch
Product Type: Ethernet Switch
Ethernet Technology: Gigabit Ethernet
Media Type Supported: Twisted PairOptical Fiber
Total Number of Network Ports: 26
Expansion Slot Type: SFP
Plug / Connector Type: Terminal Block
Form Factor: DIN Rail MountableWall Mountable
Power Consumption: 10.64 W
Power Source: Power Supply
Layer Supported: 2
Maximum Data Transfer Rate: 256 MB/s
Network (RJ-45): Yes
Number of SFP Slots: 2
Port / Expansion Slot Details: 24 x Gigabit Ethernet Network2 x SFP Gigabit Expansion Slot
Networking Standards: IEEE 802.3IEEE 802.3uIEEE 802.3abIEEE 802.3xIEEE 802.3z
Product Material: Metal
Country of Origin: Taiwan
Height: 3"
Width: 4.7"
Length: 6.4"
Product Model: TI-G262
Network Technology: 1000Base-T1000Base-X
Input Voltage: 12 V DC56 V DC
Limited Warranty: Lifetime
Manufacturer: TRENDnet
Manuf Part#: TI-G262
Price: $517.44
Availability: Backordered
