TRENDnet 26P Hardened Industrial Switch Switch Gigabit PoE+ DIN-Rail

Full PoE+ Power Budget Supplies up to 30W of PoE/PoE+ power per port (802.3at/802.3af) with an up to 480W PoE power budget

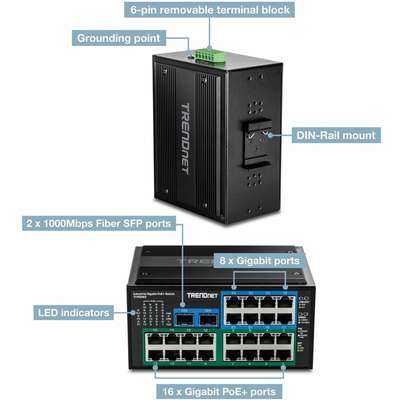

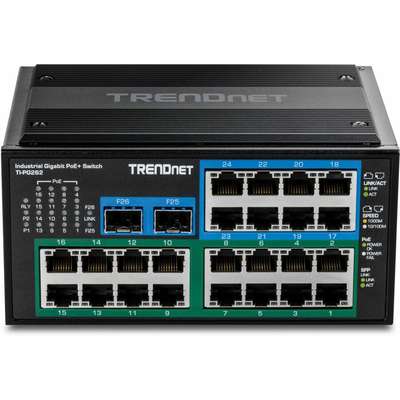

Network Ports The 24-port DIN-Rail Ethernet switch with SFP ports features 16 x Gigabit PoE+ ports, 8 x Gigabit ports, and 2 x 100/1000Mbps SFP ports

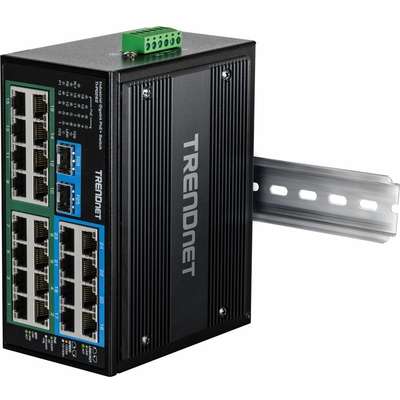

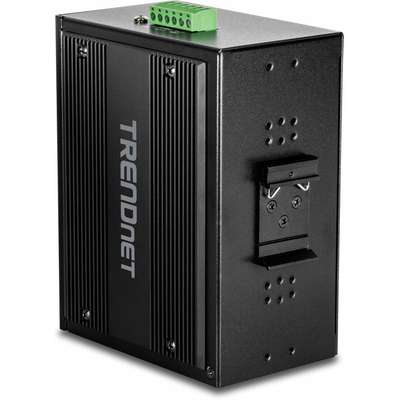

DIN-Rail/Wall Mounts The 24-Port DIN-Rail Ethernet Switch with SFP ports features a IP30 rated metal enclosure with included DIN-Rail and wall mount hardware
Switching Capacity The 24-port industrial PoE+ switch with SFP ports features a 52Gbps switching capacity
Redundant Power Redundant power inputs with overload current protection (power supply sold separately, model: TIS48048)
Alarm Output Alarm output triggered by power failure of primary and/or redundant power
Jumbo Frame Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
Extreme Temperatures This hardened 24-port rugged PoE+ switch with SFP ports is rated for an operating temperature range of -40 to 75 ºC (-40 to 167 ºF)
Electro Magnetic Compliance Complies with FCC Part 15 Subpart B Class A and CE EN 55032 Class A standards
Certifications Rated for information technology (ITE) and industrial equipment (EN55032/35)
26-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch
Quick Installation Guide

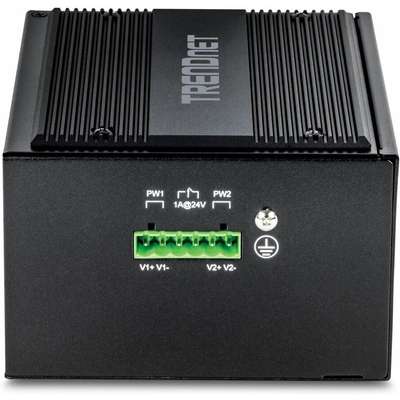

Removable Terminal Block
DIN-Rail / Wall Mount Kit
Product Name: 26P Hardened Industrial Switch Switch Gigabit PoE+ DIN-Rail
Product Type: Ethernet Switch
Ethernet Technology: Gigabit Ethernet
Media Type Supported: Twisted PairOptical Fiber
Total Number of Network Ports: 24
PoE (RJ-45) Port: Yes
TAA Compliant: Yes
Expansion Slot Type: SFP
Plug / Connector Type: Terminal Block (6 Wire)
Form Factor: DIN Rail MountableWall Mountable
Power Consumption: 5.76 W
Power Source: Power Supply
Layer Supported: 2
Network (RJ-45): Yes
Number of SFP Slots: 2
Modular: Yes
Port / Expansion Slot Details: 16 x Gigabit Ethernet PoE+8 x Gigabit Ethernet Network8 x Gigabit Ethernet Expansion Slot
PoE Budget: 480 W
Networking Standards: IEEE 802.3IEEE 802.3uIEEE 802.3abIEEE 802.3zIEEE 802.3xIEEE 802.3afIEEE 802.3at
Product Material: Metal
Height: 6.1"
Width: 4.7"
Depth: 3.1"
Product Model: TI-PG262
Network Technology: 1000Base-T100/1000Base-X
Input Voltage: 48 V DC56 V DC
Limited Warranty: Lifetime
Manufacturer: TRENDnet
Manuf Part#: TI-PG262
Price: $589.99
Availability: Special Order
