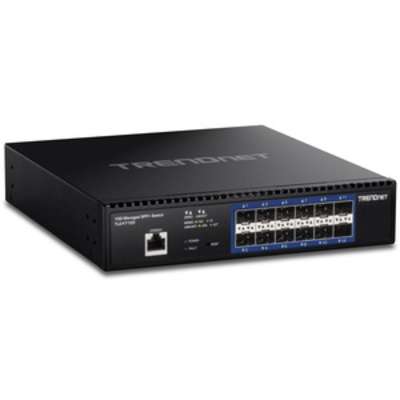

TRENDnet 12-Port 10G Layer 2 Managed SFP+ Switch

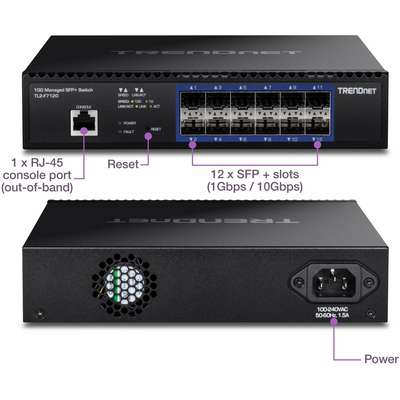

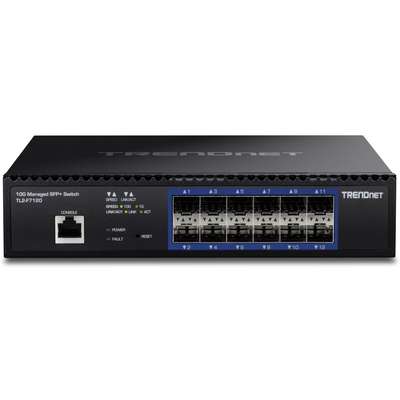

DEVICE INTERFACE: 12 x SFP+ Ports (1Gbps / 10Gbps); 1 x RJ-45 Console Port (out-of-band); LED Indicators; Reset Button
SWITCHING CAPACITY: 12-Port 10G Layer 2 Managed SFP+ Switch provides 240Gbps switching capacity
LAYER 2 MANAGEMENT: The 12 Port 10G Switch is fully configurable using the web-based management interface or CLI for management flexibility and streamlining configuration deployment to multiple switches.
HIGH SPEED 10G SFP+: The managed switch offers 12 x 10G SFP+ slots for high-speed network uplinks or downlink NAS/ access server connections providing a cost-effective solution in adding 10G link capability to an SMB network.
INTEGRATION FLEXIBILITY: The 10G switch managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
TRAFFIC MANAGEMENT: A broad range of network configurations are supported by: 802.1ax link aggregation, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling

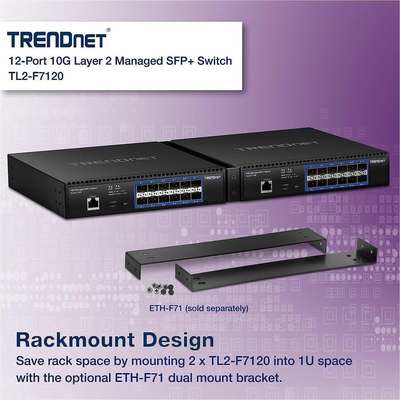

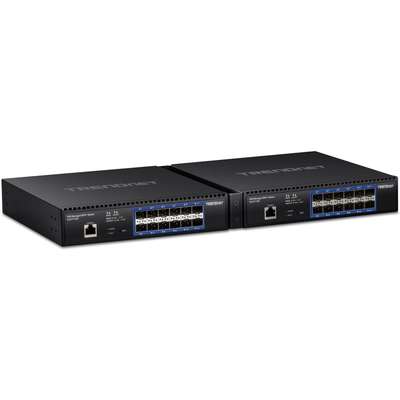

RACKMOUNT DESIGN: Save rack space with this network switch by mounting 2 x TL2-F7120 into 1U space with the optional ETH-F71 dual mount bracket (sold separately)
TRENDnet LIFETIME PROTECTION: The 12 Port 10G Layer 2 Managed SFP+ Switch comes with lifetime TRENDnet Manufacturer Protection.
NDAA / TAA compliant (U.S. and Canada only)
12-Port 10G Layer 2 Managed SFP+ Switch
Power Cord
RJ-45 to RS-232 Console Cable (1.5m / 5 ft.)
Rackmount Kit
Product Name: 12-Port 10G Layer 2 Managed SFP+ Switch
Product Type: Ethernet Switch
Manageable: Yes
Ethernet Technology: 10 Gigabit Ethernet
Media Type Supported: Optical Fiber
Total Number of Expansion Slots: 12.0
TAA Compliant: Yes
Expansion Slot Type: SFP+
Form Factor: Rack-mountable
Power Consumption: 20 W
Power Source: Power Supply
Layer Supported: 3
Compatible Rack Unit: 1U
Maximum Data Transfer Rate: 2.50 GB/s
Number of SFP+ Slots: 12
Modular: Yes
Uplink Port: Yes
Port / Expansion Slot Details: 12 x 10 Gigabit Ethernet Expansion Slot
Networking Standards: IEEE 802.1pIEEE 802.1QIEEE 802.1sIEEE 802.1wIEEE 802.1xIEEE 802.1abIEEE 802.1AXIEEE 802.3abIEEE 802.3aeIEEE 802.3azIEEE 802.3xIEEE 802.3z
Country of Origin: Taiwan
Height: 1.7"
Width: 8.3"
Depth: 9.1"
Product Model: TL2-F7120
Network Technology: 10GBase-X
Input Voltage: 120 V AC230 V AC
Limited Warranty: Lifetime
Frequency: 50 Hz60 Hz
Application / Usage: Network
Manufacturer: TRENDnet
Manuf Part#: TL2-F7120
Price: $314.99
Availability: Special Order
