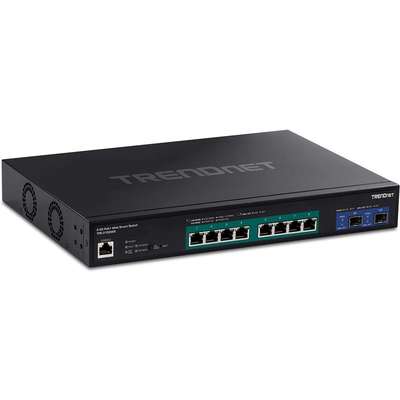

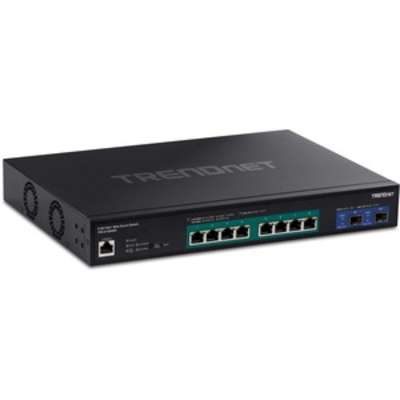

TRENDnet 10-Port Multi-Gig Web Smart PoE+ Switch

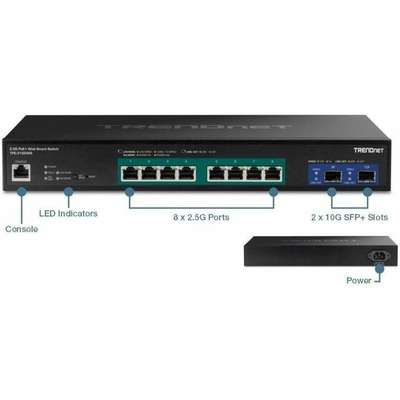

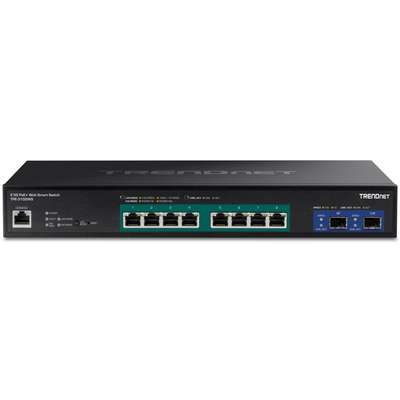

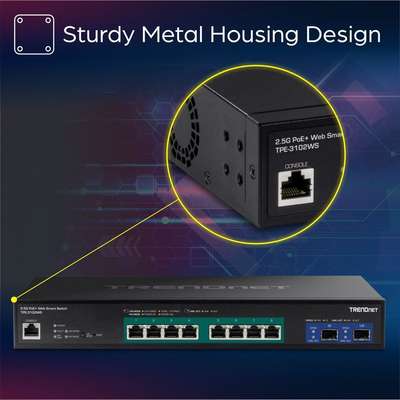

DEVICE INTERFACE: 8 x 2.5GBASE-T PoE+ Ports; 2 x 10G SFP+ Slots; LED Indicators; Metal Housing
2.5G PORTS: This 12 Port Multi-Gig PoE+ Ethernet switch is equipped with eight 2.5GBASE-T RJ-45 ports that provide multigigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
10G SFP+ SLOTS: The managed switch offers two 10G SFP+ slots for high-speed network connections providing a costeffective solution in adding 10G link capability.

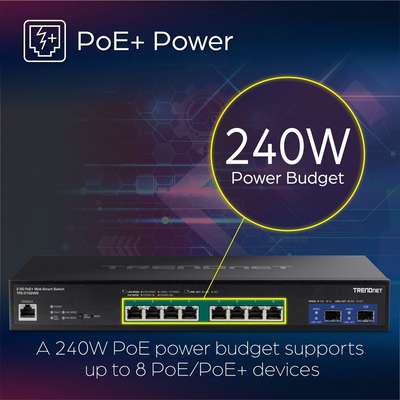

POE POWER: Supplies up to 30W of PoE+ power per port with a 240W power budget
EASY INSTALLATION: No configuration needed, simply connect network devices to the Gigabit Ethernet switch
SWITCHING CAPACITY: 80Gbps switching capacity
TRAFFIC MANAGEMENT: A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric
VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth
management, and QoS queue scheduling
WEB SMART MANAGEMENT: Provides an easy-to-use web-based GUI management for reduced switch configuration
complexity and offers a combination of SMB management features for easy deployment.
ACCESS CONTROL: Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with
layered access controls
COMPATABILITY: 2.5G ports are backwards compatible with 100/1000Mbps devices
INTEGRATION FLEXIBILITY: Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap,
and syslog for monitoring and flexible network integration.
RACK MOUNTABLE: Features a 1U 19" rack mountable design for installation flexibility
COMPLIANCE: IEEE 802.3bz (2.5G) compliant; IEEE 802.3ae (SFP+) compliant
LIFETIME PROTECTION: TRENDnet LIFETIME PROTECTION: The TPE-3102WS multi-gig PoE+ web smart switch comes
with Lifetime TRENDnet Manufacturer Protection.
NDAA / TAA compliant (U.S. and Canada only)
10-Port Multi-Gig Web Smart PoE+ Switch
Quick Installation Guide

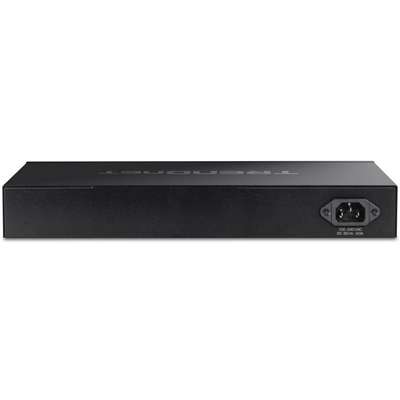

Power Cord (1.5m / 5 ft.)
Rackmount Brackets
Product Name: 10-Port Multi-Gig Web Smart PoE+ Switch
Product Type: Ethernet Switch
Manageable: Yes
Ethernet Technology: 2.5 Gigabit Ethernet10 Gigabit Ethernet
Product Family: Web Smart
Media Type Supported: Twisted PairOptical Fiber
Total Number of Network Ports: 10
PoE (RJ-45) Port: Yes
TAA Compliant: Yes
Expansion Slot Type: SFP+
Form Factor: Rack-mountable
Power Consumption: 60 W
Power Source: Power Supply
Layer Supported: 3
Compatible Rack Unit: 1U
Network (RJ-45): Yes
Number of SFP+ Slots: 2
Modular: Yes
Port / Expansion Slot Details: 8 x 2.5 Gigabit Ethernet PoE+2 x 10 Gigabit Ethernet Expansion Slot
PoE Budget: 240 W
Networking Standards: IEEE 802.1DIEEE 802.1pIEEE 802.1QIEEE 802.1wIEEE 802.1xIEEE 802.1abIEEE 802.1AXIEEE 802.3uIEEE 802.3xIEEE 802.3zIEEE 802.3abIEEE 802.3adIEEE 802.3azIEEE 802.3afIEEE 802.3atIEEE 802.1sIEEE 802.3aeIEEE 802.3IEEE 802.3bz
Product Material: Metal
Country of Origin: Taiwan
Height: 1.7"
Width: 13"
Depth: 9.1"
Product Model: TPE-3102WS
Network Technology: 2.5GBase-T10GBase-X
Product Line: Web Smart
Input Voltage: 120 V AC230 V AC
Limited Warranty: Lifetime
Frequency: 50 Hz60 Hz
Manufacturer: TRENDnet
Manuf Part#: TPE-3102WS
Price: $311.58
Availability: In Stock
