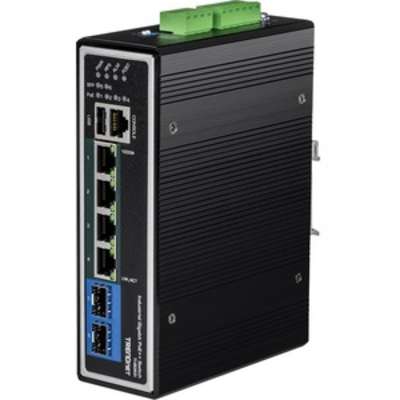

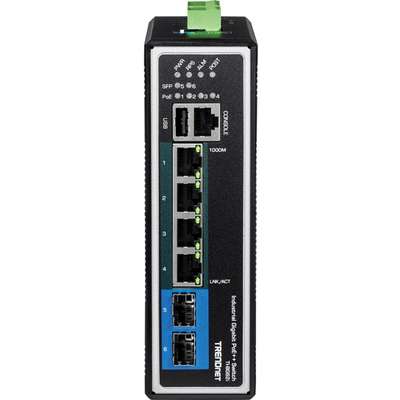

TRENDnet 6-Port Industrial Gigabit L2+ Managed PoE++ DIN-Rail Switch

ETHERNET PORT INTERFACE: 4 x Gigabit PoE++ ports; 2 x Gigabit SFP slots
POE++ POWER & SWITCHING CAPACITY: A 12Gbps switching capacity and a 360W PoE power budget supplies up to eight Power over Ethernet devices, and includes advanced PoE port controls such as enabling / disabling PoE, power priority, PD alive check, and power scheduling
OTHER POE FEATURES: Perpetual PoE provides PoE power to connected devices at booting; Fast PoE remembers per port PoE power draw of connected devices at booting; PoE alive check restarts unresponsive PoE powered devices

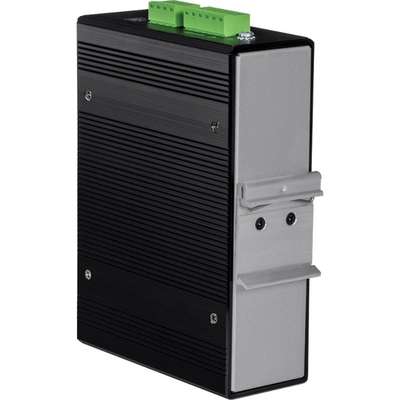

DIN-RAIL & WALL MOUNT KIT: This 6-Port gigabit layer 2 PoE+ industrial switch comes with an integrated DIN-Rail mount and mounting hardware.
EXTREME TEMPERATURE SWITCH: The metal hardened IP30 rated gigabit layer 2 PoE+ DIN-Rail switch is equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 - 75 °C (- 40 - 167 °F)) for harsh environments.
LAYER 2 MANAGEMENT: The layer 2 managed switch Provides an easy to use web management interface for traffic management controls such as VLAN, QoS, access controls, link aggregation, troubleshooting, SNMP monitoring, and per port MAC restriction.
ACCESS CONTROL: Managed access control featues include ACLs, IP-MAC-Port binding, ARP inspection, 802.1X RADIUS, MAC address learning, DHCP snooping and IP Source Guard provides layered network access controls

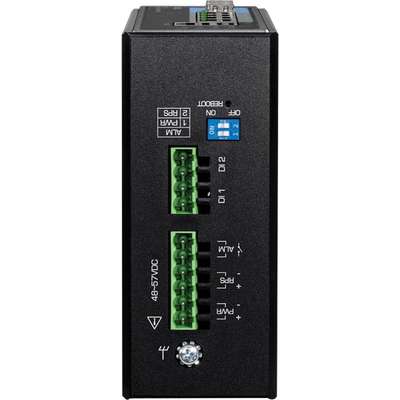

REDUNDANT POWER: The 6 port network switch has dual redundant power inputs with overload current protection (power supply sold separately: TI-S48048
TRAFFIC MANAGEMENT: Managed features include 802.1Q / Q-in-Q / GVRP / MAC & Protocol-Based VLAN, IGMP v1 / 2 / 3, IGMP Snooping, MLD, MVR, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP / MSTP spanning tree, static and dynamic link aggregation, Xpress Ring, and ERPS for flexible network integration
TRENDnet LIFETIME PROTECTION: The TI-B62i 6-Port Industrial Gigabit L2 Switch comes with Lifetime TRENDnet Manufacturer Protection.
TI-BG62i
Quick Installation Guide
Removable terminal block

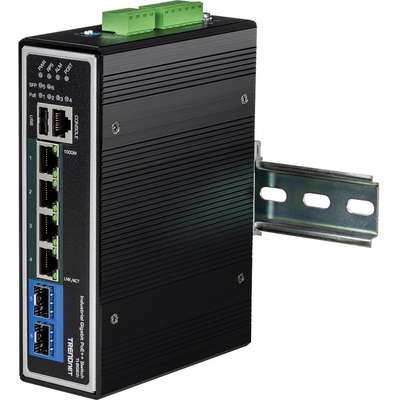

DIN rail mounting bracket
Product Name: 6-Port Industrial Gigabit L2+ Managed PoE++ DIN-Rail Switch
Product Type: Ethernet Switch
Manageable: Yes
Ethernet Technology: Gigabit Ethernet
Media Type Supported: Twisted PairOptical Fiber
Total Number of Network Ports: 6
PoE (RJ-45) Port: Yes
TAA Compliant: Yes
Expansion Slot Type: SFP
Plug / Connector Type: Terminal Block
Form Factor: DIN Rail MountableEnclosure
Power Consumption: 20 W
Power Source: Power Supply
Layer Supported: 3
Network (RJ-45): Yes
Number of SFP Slots: 2
Modular: Yes
Port / Expansion Slot Details: 4 x Gigabit Ethernet PoE++2 x Gigabit Ethernet Expansion Slot
PoE Budget: 360 W
Networking Standards: IEEE 802.1DIEEE 802.1pIEEE 802.1QIEEE 802.1wIEEE 802.1xIEEE 802.1abIEEE 802.1AXIEEE 802.3uIEEE 802.3xIEEE 802.3zIEEE 802.3abIEEE 802.3adIEEE 802.3azIEEE 802.3afIEEE 802.3atIEEE 802.3btIEEE 802.1s
Product Material: Metal
Country of Origin: Taiwan
Height: 2"
Width: 6.7"
Depth: 4.6"
Product Model: TI-BG62i
Network Technology: 1000Base-T1000Base-FX
Input Voltage: 48 V DC57 V DC
Limited Warranty: 3 Year
Application / Usage: Industrial
Manufacturer: TRENDnet
Manuf Part#: TI-BG62I
Price: $629.47
Availability: Special Order
