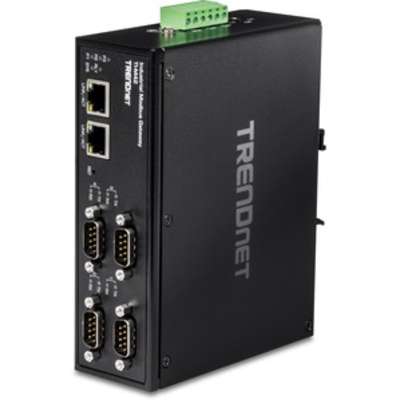

TRENDnet 4-Port Industrial Modbus Gateway

Connects RS-232/RS-422/RS-485 serial devices to a network
Supports up to 32 RS-422/RS-485 TCP serial devices per port, up to 128 slave devices per unit
Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
Configure via web management or telnet
Auto-MDI/MDIX, RJ45 port with 10/100Mbps
Serial port baud rate from 50bps to 921.6Kbps
IP30 rated metal housing
NDAA / TAA compliant
Lifetime Warranty
4-Port Industrial Modbus Gateway
Quick Installation Guide

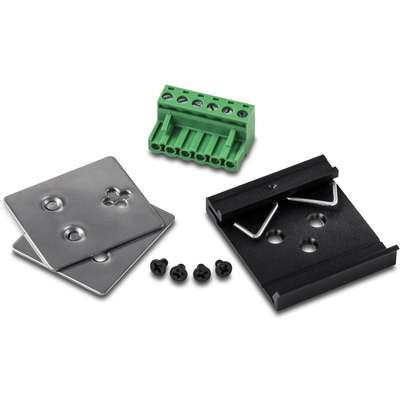

Removable Terminal Block

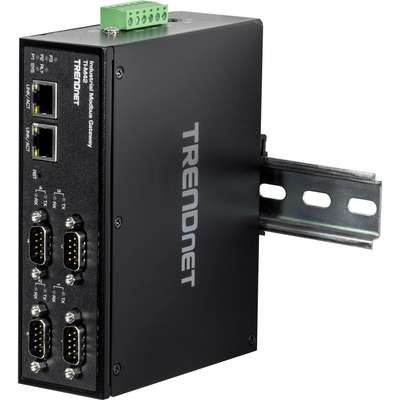

DIN-Rail and Wall Mount Kit
Product Name: 4-Port Industrial Modbus Gateway
Product Type: Device Server
Network Standard: 10/100Base-TX
Ethernet Technology: Fast Ethernet
Number of Network (RJ-45) Ports: 2
Serial Port: Yes
Media Type Supported: Twisted Pair
Number of Serial Ports: 4
Input Voltage Range: 12V DC to 56V DC
Form Factor: DIN Rail MountableWall Mountable
Network (RJ-45): Yes
Country of Origin: Taiwan
Height: 1.3"
Width: 4.1"
Depth: 3.2"
Plug / Connector Type: Terminal Block
Product Model: TI-M42
Power Consumption: 3.84 W
Input Voltage: 12 V DC56 V DC
Limited Warranty: Lifetime
Manufacturer: TRENDnet
Manuf Part#: TI-M42
Price: $444.76
Availability: Special Order
