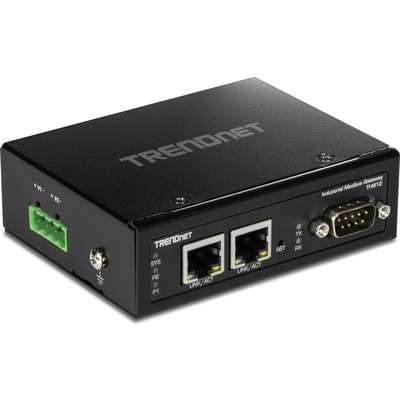

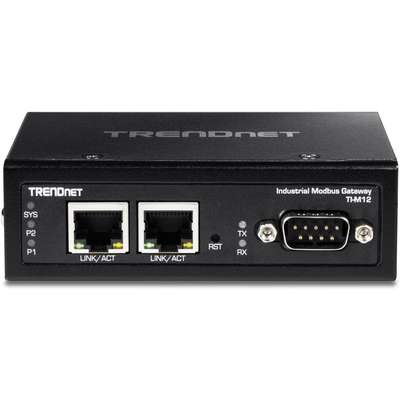

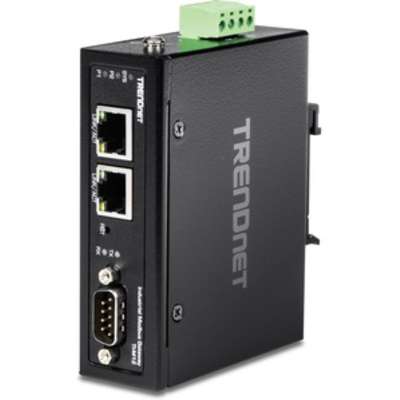

TRENDnet Industrial Modbus Gateway

1 x serial port, 2 x Fast Ethernet ports
Connects RS-232/RS-422/RS-485 serial device, such as a modem, to a network
Supports up to 32 RS-422/RS-485 TCP serial devices per port
Supports DHCP, automatically obtain an IP address and query IP address through serial setting protocol
Configure via web management or telnet
Auto-MDI/MDIX, RJ45 port with 10/100Mbps
Serial port baud rate from 50bps to 921.6Kbps
Wide operation temperature range -40° - 75° C (-40° - 167° F)
IP30 rated metal housing
NDAA / TAA compliant
Lifetime Warranty
Industrial Modbus Gateway
Quick Installation Guide

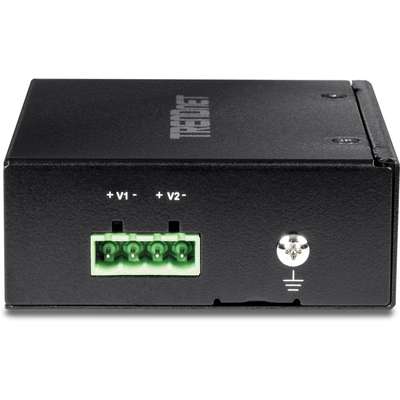

Removable Terminal Block

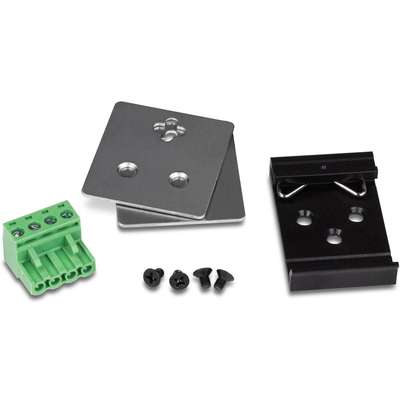

DIN-Rail and Wall Mount Kit
Product Name: Industrial Modbus Gateway
Product Type: Device Server
Network Standard: 10/100Base-TX
Ethernet Technology: Fast Ethernet
Number of Network (RJ-45) Ports: 2
Serial Port: Yes
Media Type Supported: Twisted Pair
Number of Serial Ports: 1
Input Voltage Range: 12V DC to 56V DC

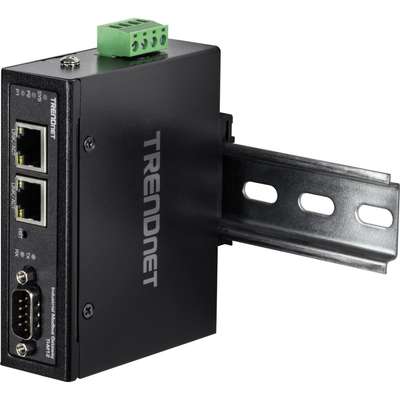

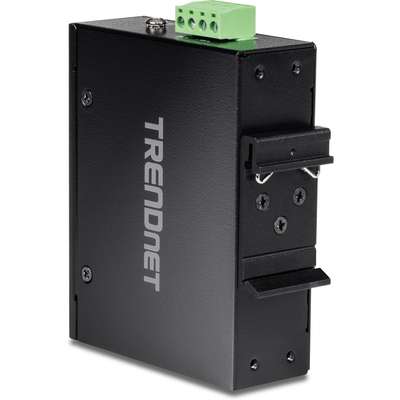

Form Factor: DIN Rail MountableWall Mountable
Network (RJ-45): Yes
Country of Origin: Taiwan
Height: 1.2"
Width: 4.1"
Depth: 3.1"
Plug / Connector Type: Terminal Block
Product Model: TI-M12
Power Consumption: 3.84 W
Input Voltage: 12 V DC56 V DC
Limited Warranty: Lifetime
Manufacturer: TRENDnet
Manuf Part#: TI-M12
Price: $216.57
Availability: Special Order
