TRENDnet 10-Port Industrial Gigabit PoE++ DIN-Rail Switch

PoE Power Budget: A 360W PoE power budget on this industrial 802.3bt PoE++ switch supports up to eight Power over Ethernet devices with PoE (15.4W), PoE+ (30W), or PoE++ (90W) power
Switching Capacity: 20Gbps switching capacity
Jumbo Frame: Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance
Grounding Point: Grounding point on the industrial PoE++ switch protects equipment against external electrical surges

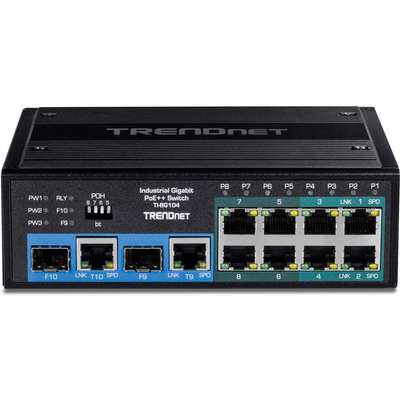

Network Ports: 4 x Gigabit PoE++ ports (802.3bt PoE++ ports), 4 x Gigabit PoE+ ports, and 2 x Gigabit share ports (SFP or RJ-45)

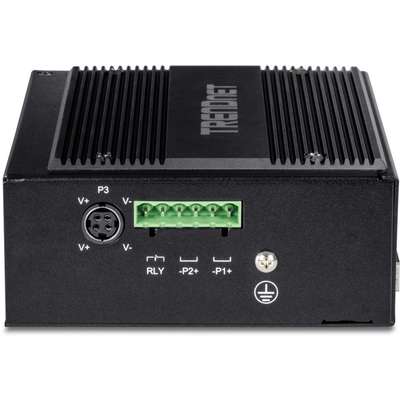

Redundant Power: Dual power inputs for redundancy with overload current protection (power supplies sold separately, model TIS48048)
Rated for Extreme Environments: Rugged IP30 rated enclosure designed to withstand a high degree of vibration and shock, and operate within a wide temperature range (- 40° - 75° C (- 40° - 167° F)) for harsh environments

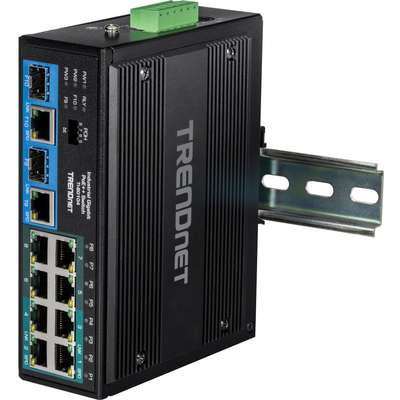

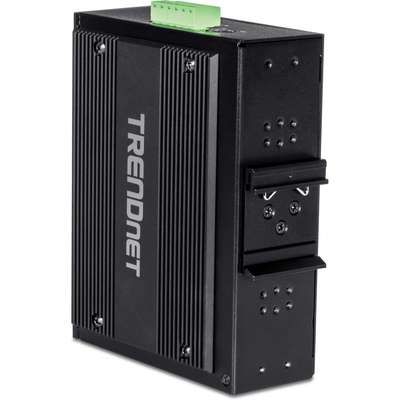

DIN-Rail/Wall Mounts: IP30 rated metal enclosure with included DIN-Rail and wall mount hardware
Alarm Relay: Industrial PoE++ switch's alarm relay is triggered by power failure of primary and/or redundant power
Shock and Vibration Resistant: Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)
10-Port Industrial Gigabit PoE++ DIN-Rail Switch
Quick Installation Guide

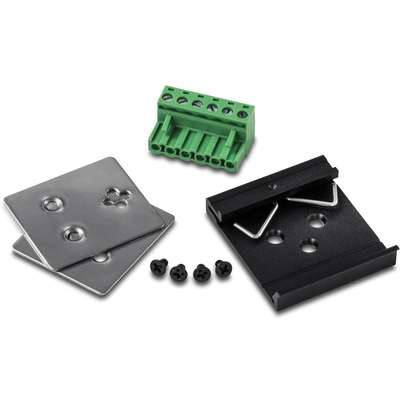

Removable Terminal Block
DIN-Rail and Wall Mount kit
Product Name: 10-Port Industrial Gigabit PoE++ DIN-Rail Switch
Product Type: Ethernet Switch
Ethernet Technology: Gigabit Ethernet
Media Type Supported: Optical FiberTwisted Pair
Total Number of Network Ports: 10
PoE (RJ-45) Port: Yes
TAA Compliant: Yes
Expansion Slot Type: SFP (mini-GBIC)
Plug / Connector Type: Terminal Block
Form Factor: DIN Rail MountableWall Mountable
Power Consumption: 6.20 W
Power Source: AC/DC
Layer Supported: 2
Network (RJ-45): Yes
Number of SFP Slots: 2
Modular: Yes
Shared SFP Slot: Yes
Port / Expansion Slot Details: 4 x Gigabit Ethernet PoE++4 x Gigabit Ethernet PoE+2 x Gigabit Ethernet TP/SFP Combo
PoE Budget: 360 W
Networking Standards: IEEE 802.3IEEE 802.3uIEEE 802.3abIEEE 802.3zIEEE 802.3xIEEE 802.3afIEEE 802.3atIEEE 802.3bt
Product Material: Metal
Country of Origin: Taiwan
Height: 1.9"
Width: 6.1"
Depth: 4.8"
Product Model: TI-BG104
Network Technology: 1000Base-T1000Base-FX
Limited Warranty: Lifetime
Frequency: 50 Hz60 Hz
Manufacturer: TRENDnet
Manuf Part#: TI-BG104
Price: $519.78
Availability: In Stock
