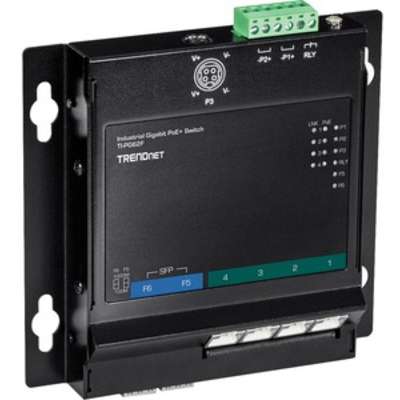

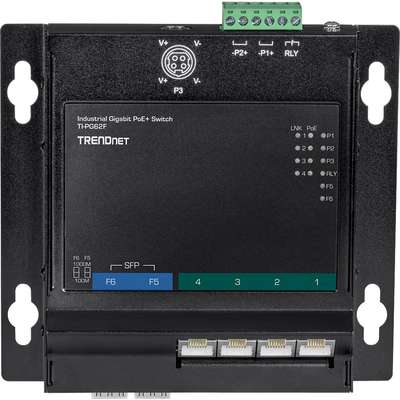

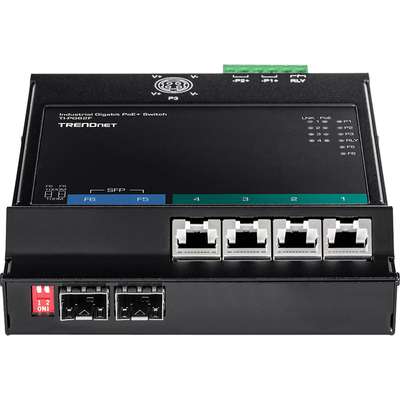

TRENDnet 6-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch

4 x Gigabit PoE+ ports
2 x Gigabit SFP slots
120W PoE power budget
12Gbps switching capacity
Forwarding rate: 8.9Mpps (64-byte packet size)
Supports jumbo frames up to 10KB
Hardened IP30 rated metal housing

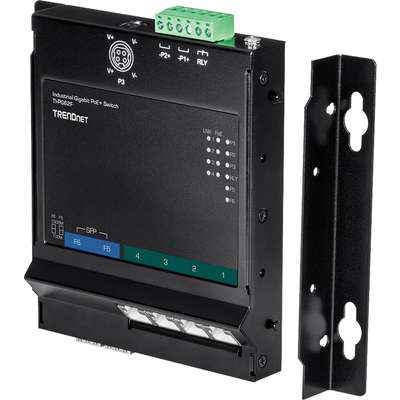

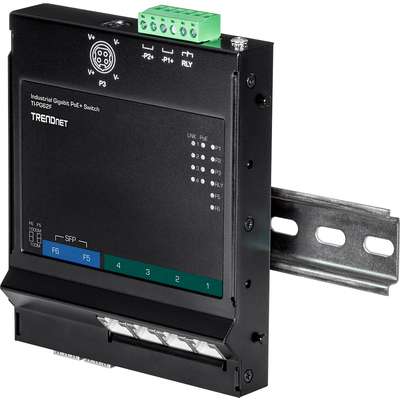

Includes DIN-Rail bracket and magnetic wall mount kit
Operating temperature range of -40° - 75° C (-40° - 167° F)
Redundant power inputs with overload current protection
Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S24048, and 48VDC3000)
6-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch
Quick Installation Guide
Removable Terminal Block

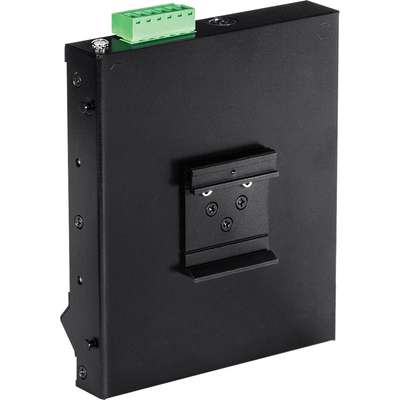

DIN-Rail, Wall and Magnet Mount Kit
Product Name: 6-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch
Product Type: Ethernet Switch
Manageable: No
Ethernet Technology: Gigabit Ethernet
Media Type Supported: Optical FiberTwisted Pair
Total Number of Network Ports: 6
PoE (RJ-45) Port: Yes
TAA Compliant: Yes
Expansion Slot Type: SFP (mini-GBIC)
Plug / Connector Type: Terminal Block
Form Factor: DIN Rail MountableWall MountableMagnetic MountCompactCabinet MountEnclosure
Power Consumption: 7.20 W
Power Source: AC/DC
Layer Supported: 2
Network (RJ-45): Yes
Number of SFP Slots: 2
Modular: Yes
Port / Expansion Slot Details: 4 x Gigabit Ethernet PoE+2 x Gigabit Ethernet Expansion Slot
PoE Budget: 120 W
Networking Standards: IEEE 802.3IEEE 802.3uIEEE 802.3abIEEE 802.3zIEEE 802.3xIEEE 802.3afIEEE 802.3at
Product Material: Metal
Country of Origin: Taiwan
Height: 5.7"
Width: 5.9"
Depth: 1.1"
Product Model: TI-PG62F
Network Technology: 1000Base-T1000Base-FX
Limited Warranty: Lifetime
NDAA Compliant: Yes
Frequency: 50 Hz60 Hz
Manufacturer: TRENDnet
Manuf Part#: TI-PG62F
Price: $239.99
Availability: Special Order
