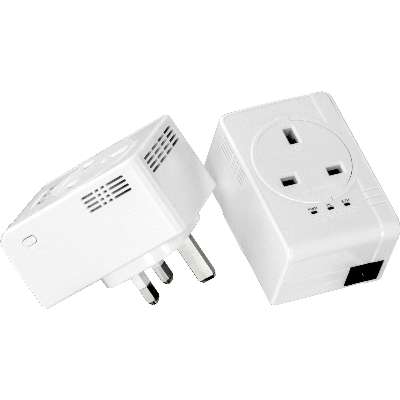

TRENDnet 500 AV Compact Powerline Adapter Kit /w Pass Through

The Powerline 500 AV Nano Adapter with Built-In Outlet, model TPL-407E, uses existing electrical lines to create a secure high speed network. Two adapters are needed to start a network. Connect one adapter to your router and plug another adapter into an outlet on your electrical system for instant high speed network access. The compact form factor saves space and offers an additional electrical outlet, built into the front of the housing to power computers and other devices. A noise filter maintains optimum connection speeds when devices such as computers, televisions, and gaming consoles create electrical background noise.
This adapter automatically connects to other TRENDnet Powerline AV adapters with no installation required TRENDnet recommends pressing the Sync button to automatically change default encryption keys. Use up to 8 adapters to network devices in different rooms without running new cabling. Power Save mode reduces power consumption by up to 80%. Quality of Service technology prioritizes video, audio, and online gaming. LED displays convey device status for easy troubleshooting. Advanced 128-bit AES encryption secures your network. This adapter is ideal for use in buildings that interfere with wireless networking signals.
Features Include

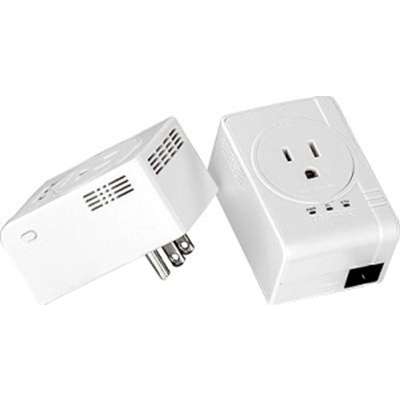

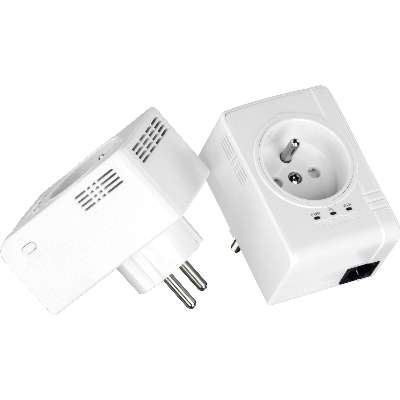

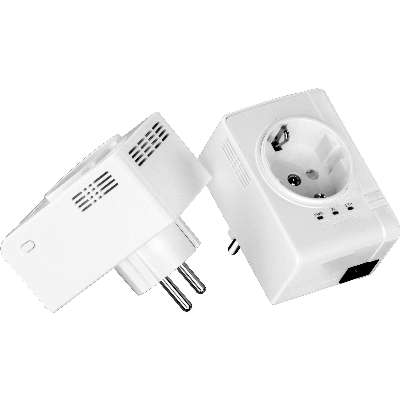

Includes two TPL-407E adapters
Compliant with IEEE1901 and HomePlug AV standards
High speed networking over an existing electrical system
1 x 10/100 Mbps Auto-MDIX Ethernet port
1 x built-in electrical power socket
Adapters automatically connect using an encrypted Powerline signal
One-touch Sync button changes encryption keys

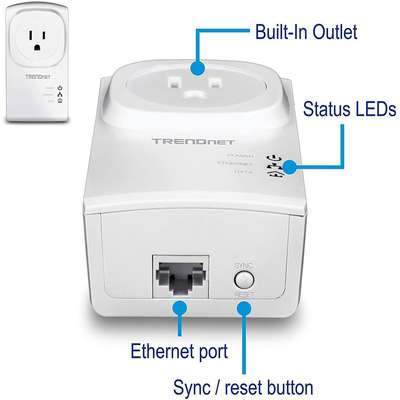

Three LED Indicators:
Power (on / off)
Powerline Connection: green (best), amber (better), red (good), off (no connection)
Ethernet Connection: solid (connection), blinking (activity), off (no connection)
Advanced electrical noise filter boosts performance
Connect one 500 Mbps** Powerline AV Adapter to the Internet and then plug in up to 7* additional 500 Mbps** Powerline AV adapters for instant connectivity
Share data intensive files, play games, download music and more at faster data transfer rates
Advanced 128-bit AES encryption to ensure total network security
Support for IPv6
Supports up to 16** IGMP based IPTV streams
Power Save mode reduces electrical consumption by up to 80%
Neighbor network support for up to 4 overlapping networks
Network signal transmits up to 300 meters (984 ft.)
Auto QoS support through traffic classification and multiple priority queing
Optional management utility compatible with Windows 8 (32/64-bit), Windows 7 (32/64-bit), Vista (32/64-bit), and XP (32/64-bit) operating systems
3-year limited warranty
Includes two TPL-407E adapters
Powerline 500 networking
Never lose an electrical outlet with the built-in socket
Connects over electrical lines
Two adapters are needed to start a network.
Compact form factor saves space
Easy Installation
NDAA compliant
Product Name: 500 AV Compact Powerline Adapter Kit /w Pass Through
Product Type: Powerline Network Adapter
Wireless LAN: No
Powerline Transmission Standard: HomePlug AV
USB: No
Number of Network (RJ-45) Ports: 1
Network (RJ-45): Yes
Phone Line (RJ-11): No
PoE (RJ-45) Port: No
Powerline Data Transfer Rate: 500 Mbit/s
Maximum Distance Supported: 984.25 ft
Product Condition: New
Ethernet Technology: Fast Ethernet
Audio Line In: No
Audio Line Out: No
Country of Origin: Taiwan
Height: 3"
Width: 7"
Depth: 8"
Product Model: TPL-407E2K
Packaged Quantity: 2
Package Contents: Powerline 500 AV Nano Adapter Kit with Built-In OutletQuick Installation GuideCD-ROM (Utility & User's Guide)2 x Network Cables (1.5 m / 5 ft.)
Limited Warranty: 3 Year
Minimum Operating Frequency: 2 MHz
Maximum Operating Frequency: 68 MHz
BNC: No
NDAA Compliant: Yes
Modulation: OFDM1024QAM256QAM64QAM8QAMQPSKBPSKDBPSK
Input Voltage: 110 V AC220 V AC
Manufacturer: TRENDnet
Manuf Part#: TPL-407E2K
Price: $40.40
Availability: Special Order
