4-PORT MULTI-GIGABIT POE INJECTOR: Multiport PoE++ injector supports up to 5Gbps (NBASE-T) w/auto-negotiation; TAA-compliant Power Sourcing Equipment (PSE) delivers power & data over Ethernet cable; Supports PoE/PoE+/PoE++ 95W max; Level-4 ESD protection

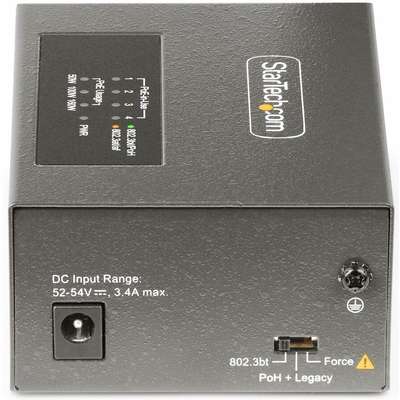

SELECTABLE POWER OUTPUT: DIP switch allows user to select the power output between auto-negotiation up to 90W, 95W PoH+, or forced legacy 60W (UPoE); 802.3af/802.3at/802.3bt power modes available on all ports; Total power budget of 160 Watts
MULTI-GIGABIT: Supports 5/2.5/1Gbps & 100/10Mbps; 5GBASE-T/5GBASE-T compatible; Provide data & power to Powered Devices (PDs) up to 328ft (100m) w/Cat 5e/6/6a cabling; Supports WoL/PXE/9K Jumbo frames; Unmanaged PoE injector streamlines setup & deployment

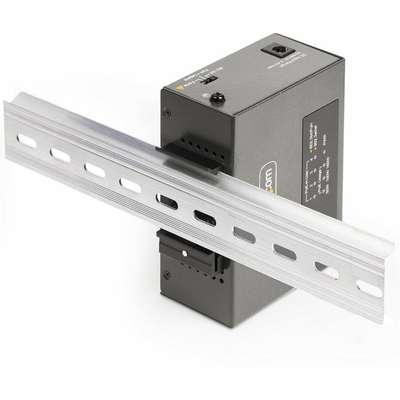

RUGGED ENCLOSURE: Durable full-metal housing ensures durability; Mount the PoE injector to a wall or a DIN rail with the included bracket; LAN transformers isolate the input/output data, and a power circuit prevents interference between ports

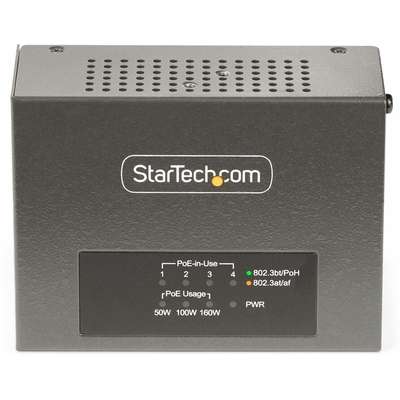

STATUS LEDS: Top-facing color-coded diagnostic LEDs indicate the current PoE mode per Ethernet port and current PoE power budget of the injector for quick at-a-glance status of the system
PoE++ Injector
1 x Universal Power Adapter
1 x DIN Rail Mounting Kit
1 x Quick-Start Guide

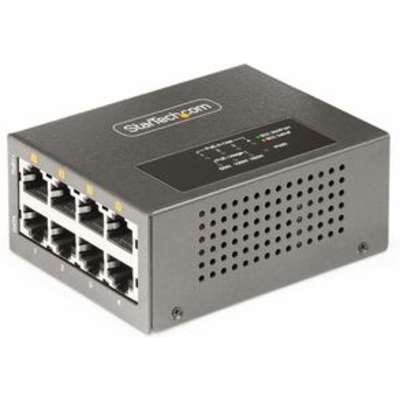

Product Name: 4-Port PoE+/PoE++ Injector - Multi-Gigabit 5/2.5G Ethernet
Manufacturer Part Number: AS445CPOEINJECTOR
Product Type: PoE++ Injector
Maximum Output Power: 160 W
TAA Compliant: Yes
Product Color: Black
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)

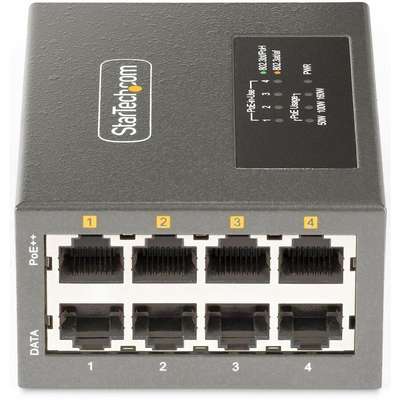

Output Ports: 4 x Multi-Gigabit PoE++
Form Factor: DIN Rail/Wall Mountable
Input Voltage: 120 V AC230 V AC
Environmentally Friendly: Yes
Maximum Input Current: 2.50 A
Maximum Output Current: 3.30 A
Maximum Output Voltage: 54 V DC
Height: 1.5"
Width: 2.8"
Length: 3.7"
Protection Type: ESD Protection
Packaged Quantity: 1
Limited Warranty: 2 Year
Manufacturer: StarTech.com
Manuf Part#: AS445CPOEINJECTOR
Price: $305.81
Availability: In Stock
