StarTech.com HDMI Over CAT6 Extender with 3 Port HDMI Auto Switch 4K 30HZ

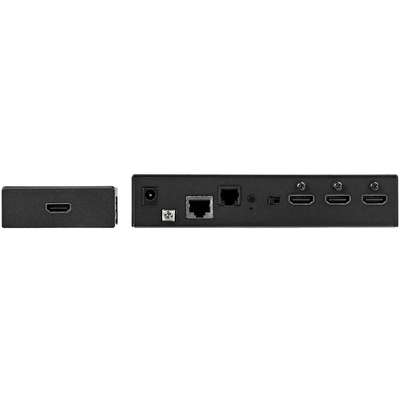

Rear View
HDMI EXTENDER WITH SWITCH: This 3 Port HDMI Switch Box extends 4K 30Hz resolutions up to 115ft (35m) or 1080p up to 230ft (70m) using CAT6/CAT5e cabling | Receiver Unit included | 4:4:4 Chroma Subsampling | 7.1ch Audio | HDCP 1.4 | HDBaseT | TAA Compliant
HDBASET CERTIFIED: 4K HDMI Automatic Switch and Extender is tested and certified by the HDBaseT Alliance to help ensure quality and compatibility | Great for Digital Signage and AV installers/integrators for commercial and professional environments
CONFIGURATION AND CONTROL: Manual, Priority or Auto-Detect Switching Options | Push Button, IR Remote Control (Batteries Not Included) and Serial Commands allow for a variety of control options | Manual or Auto EDID Copy
SINGLE POWER ADAPTER FLEXIBILITY: The power adapter can be placed at either the remote or local side in areas where power outlets may be limited; Power is delivered to the HDMI Video Switcher transmitter and receiver kit over the Ethernet cable (PoC)
EASY INSTALLATION: Durable metal housing with built-in grounding bolts and included optional mounting brackets make it ideal for many environments. The unit features DB9 RS232 ports for serial control, an RJ11 cable and an RJ11 to DB9 adapter is included
See all products
HDMI Extender
HDMI Receiver
Remote Control
Universal Power Adapter (NA/JP, UK, EU, ANZ)
RJ11 Cable
RJ11 to RS232 Converter
Set of Mounting Screws
Quick-Start Guide
Mounting Brackets
Rubber Feet
Product Name: HDMI Over CAT6 Extender with 3 Port HDMI Auto Switch 4K 30HZ
Manufacturer Part Number: VS321HDBTK
Product Type: Video Extender Receiver
Maximum Operating Distance: 230 ft
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 3
Media Type Supported: Twisted Pair
Number of Input Devices Supported: 3
TAA Compliant: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)Restriction of Hazardous Substances (RoHS)Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Connectivity Technology: Wired
Form Factor: Desktop
Graphics Modes: 4K
Environmentally Friendly: Yes
Maximum Video Resolution: 4096 x 2160
Twisted Pair Cable Standard: Category 6
Network (RJ-45): Yes
Number of HDMI Outputs: 1
HDMI In: Yes
HDMI Out: Yes
Receiver Height: 1.30"
Receiver Width: 4.10"
Receiver Depth: 6.30"
Receiver Weight (Approximate): 1.30 lb
Product Color: Black
Country of Origin: Taiwan
Limited Warranty: 2 Year
Power Plug Type: Type M
Manufacturer: StarTech.com
Manuf Part#: VS321HDBTK
Price: $364.06
Availability: In Stock
