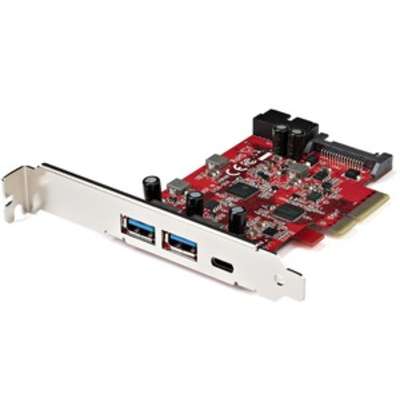

StarTech.com 5-Port USB PCIe Card - 10Gbps 1x USB-C/2xUSB-A/Internal Header

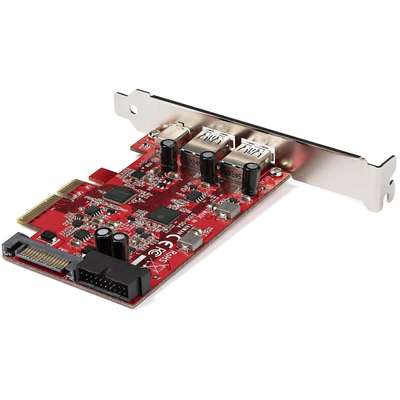

Right View
HIGH PERFORMANCE: 5-Port USB PCIe card with ASMedia 3142 IC; 10Gbps Hub w/ 3 External Ports (2x USB-A & 1x USB-C) & two internal ports USB 5Gbps (1x Internal IDC header); Supports up to USB 3.2/3.1 Gen 2; Upgraded version to our popular card PEXUSB312EIC
TRANSFER SPEEDS UP TO 10Gbps: USB-A & USB-C PCIe card adapter supports Multiple INs maintaining max bandwidth with mixed speed devices and UASP optimizing USB performance with external storage devices like SSDs, HDDs, NVMe drives; Works w/ USB 3.1/3.0/2.0
OPTIONAL POWER: USB PCIe expansion card with SATA power supplies supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W via the USB Type-C port & 5V 0.9A/4.5W via each USB port
COMPATIBILITY: USB C add-on card installs in full or low-profile PCIe 3.0 (x4 slot) desktop/server (full-profile bracket installed, low profile bracket incl.); lower performance with PCI-e 2.0; Windows/Linux/macOS auto driver install (Windows 8 & up)
STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This USB-A & USB-C combo PCI Express Host Controller card is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
USB 3.2 (10 Gbps) PCIe Card
1x Full-Profile Bracket (Installed)
1x Low-Profile Bracket
1x Quick-Start Guide
Product Name: StarTech.com 5-Port USB PCIe Card - 10Gbps 1x USB-C/2xUSB-A/Internal Header
Manufacturer Part Number: PEXUSB312A1C1H
Product Type: USB Adapter
Total Number of USB Ports: 5
Product Color: Red
Environmental Compliance: Restriction of Hazardous Substances (RoHS)Waste Electrical and Electronic Equipment Directive (WEEE)
Form Factor: Plug-in Card
Host Interface: PCI Express x4
Environmentally Friendly: Yes
Number of SATA Ports: 1
UASP Support: Yes
Number of USB 3.2 Ports: 5
Country of Origin: Taiwan
Height: 4.7"
Width: 0.7"
Operating System Supported: Windows 7Windows 8Windows 8.1Windows 10Windows 11Windows Server 2008 R2Windows Server 2012Windows Server 2016Windows Server 2019Windows Server 2022Linux 3.5Mac OS X 10.13 High SierraMac OS X 10.14 MojaveMac OS X 10.15 CatalinaMac OS X 11.0 Big SurMac OS X 12.0 MontereyMac OS X 13.0 Ventura
Length: 4.5"
Packaged Quantity: 1
Platform Supported: PCLinuxMac
Limited Warranty: 2 Year
Manufacturer: StarTech.com
Manuf Part#: PEXUSB312A1C1H
Price: $60.21
Availability: In Stock
