StarTech.com Industrial 5 Port Gigabit Ethernet Switch

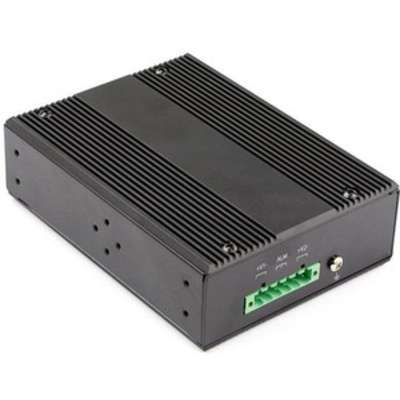

Rear View
FIBER & PoE: Industrial 6 Port Gigabit Ethernet Switch IEEE 802.3af (PoE) or 802.3at (PoE+) 30W max per 4 x PoE ports PSE + 2 x open SFP slots | Use with devices like cameras, sensors, wi-fi APs
TECH SPECS: 10/100/1000 Mbps Auto-Negotiation | Unmanaged | 6 Total Mixed Fiber/Copper Connections: 4 PoE ports + 1 SFP + 1 Flex Copper or SFP port (MSA Compliant) | Total power budget: 120W
FLEXIBLE 12V POWER INPUT: Can be wired via dual redundant terminal block inputs with voltage as low as 12V DC, boosted as needed to PoE/PoE+ (55V) for applications like solar, rail, and automotive
ROBUST DESIGN: Industrial Network Switch w/MTBF 500,000+hrs @ 50C | Vibration, shock & free fall rated | Rugged industrial IP-30 aluminum housing | -40C to 75C hardened operating temp | DIN/Wall Mount
STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years | This Gigabit PoE switch is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Ethernet Switch
Mounting Hardware Kit
Quick-Start Guide
Terminal Block
Product Name: Industrial 5 Port Gigabit Ethernet Switch
Manufacturer Part Number: IES1G52UP12V
Product Type: Ethernet Switch
Manageable: No
Ethernet Technology: Gigabit Ethernet
Media Type Supported: Optical FiberTwisted Pair
Total Number of Network Ports: 5
PoE (RJ-45) Port: Yes
Total Number of Expansion Slots: 2.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS)Waste Electrical and Electronic Equipment Directive (WEEE)
Expansion Slot Type: SFP (mini-GBIC)
Plug / Connector Type: Terminal Block
Form Factor: Wall MountableDIN Rail Mountable
Layer Supported: 2
Environmentally Friendly: Yes
Network (RJ-45): Yes
Number of SFP Slots: 2
Modular: Yes
Uplink Port: Yes
Shared SFP Slot: Yes
Port / Expansion Slot Details: 4 x Gigabit Ethernet PoE+1 x Gigabit Ethernet TP/SFP Combo1 x Gigabit Ethernet Expansion Slot
PoE Budget: 120 W
Networking Standards: IEEE 802.3IEEE 802.3xIEEE 802.3afIEEE 802.3at
Product Material: SteelAluminum
Country of Origin: Taiwan
Height: 1.7"
Width: 4.1"
Length: 5.6"
Network Technology: 1000Base-T1000Base-X
Limited Warranty: 2 Year
Manufacturer: StarTech.com
Manuf Part#: IES1G52UP12V
Price: $336.68
Availability: In Stock
