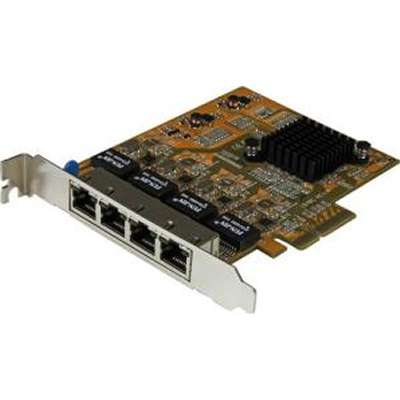

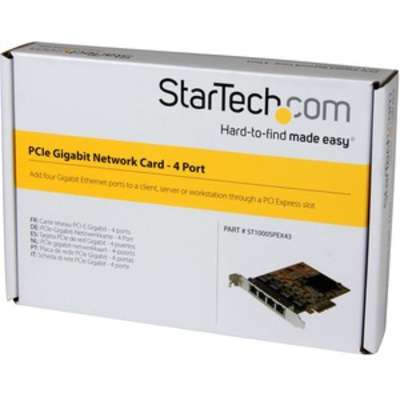

StarTech.com 4 Port Gigabit NIC PCIe Network Card - Quad Port Adapter

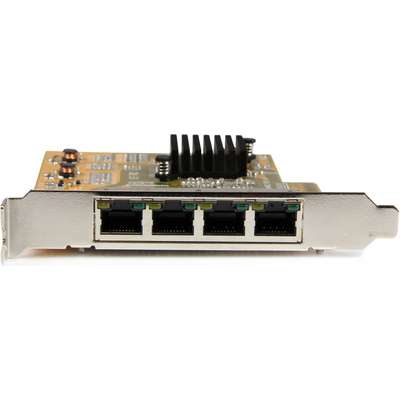

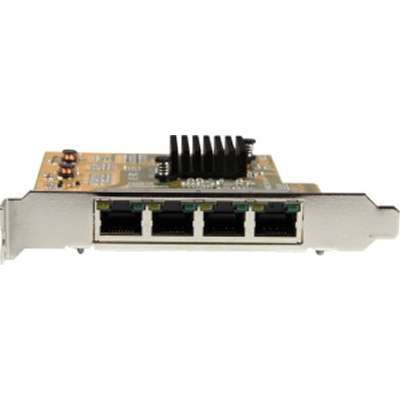

Rear View
Add four independent Gigabit RJ45 ports to connect to multiple networks for high-bandwidth workstations and servers
Realtek RTL8111G chipset for reliable performance
Supports full-duplex flow control
Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab networks
Supports autonegotiation with next-page capacity
Crossover detection and auto-correction (Auto-MDIX)
Up to 9K jumbo frame support
Support for IEEE 802.1Q VLAN tagging and IEEE 802.1P layer 2 priority encoding
Microsoft NDIS5 checksum offload (IP, TCP, UDP) and large send offload support
Product Name: 4 Port Gigabit NIC PCIe Network Card - Quad Port Adapter
Manufacturer Part Number: ST1000SPEX43
Product Type: Gigabit Ethernet Card
Number of Network (RJ-45) Ports: 4
Total Number of Ports: 4
TAA Compliant: Yes
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Waste Electrical and Electronic Equipment Directive (WEEE)Restriction of Hazardous Substances (RoHS)
Form Factor: Plug-in Card
Network Technology: 10/100/1000Base-T
Data Transfer Rate: 250 MB/s
Device Supported: Computer/Server/ Workstation
Host Interface: PCI Express x4
Environmentally Friendly: Yes
Chipset Manufacturer: Realtek
Chipset Model: RTL8111G
Media Type Supported: Twisted Pair
Product Color: Yellow
Country of Origin: Taiwan
Height: 0.7"
Width: 4.7"
Depth: 5.4"
Packaged Quantity: 1
System Requirements: Windows® XP, 7, 8, 8.1, 10 Windows Server® 2003, 2012, 2016, 2019 Linux Kernel 2.4.x to 4.11.x LTS Versions only
Manufacturer: StarTech.com
Manuf Part#: ST1000SPEX43
Price: $145.48
Availability: In Stock
