StarTech.com 5 Port Industrial Gigabit Ethernet Switch - DIN / Wall-Mount

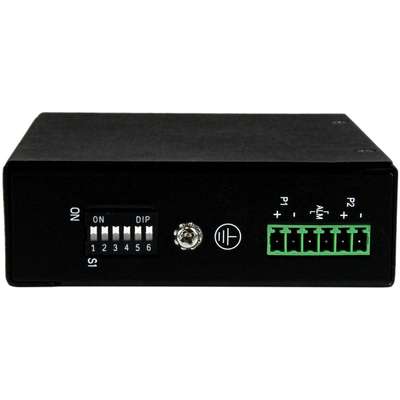

Rear View
The IES51000 5-Port Industrial Ethernet Switch offers 5 Gigabit Ethernet ports in a compact, IP30-rated metal enclosure, making it the ideal network solution for harsh industrial environments such as factory floors, warehouses or large junction boxes.
Quickly connect your network devices with little to no configuration. This unmanaged industrial network switch supports 10/100/1000 Mbps transfer speeds, full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX, which helps to eliminate the hassle of troubleshooting mis-matched speed and duplex settings.
Providing seamless operation in the event of power dips or failures, the switch features redundant 12-58V DC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.
For easy installation and dependable performance in harsh environments, the switch can be DIN Rail or wall mounted and features a compact, IP30-rated enclosure with an extended operating temperature range (-40C to 75C).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
5 10/100/1000 Mbps unmanaged RJ45 Ethernet ports
IP30-rated DIN rail and wall-mountable metal enclosure
Wide-range redundant power via two 12-58V DC terminal block inputs, with alarm relay
Overcurrent and reverse polarity protection
Extended operating temperature range (-40?C to 75?C)
Speed / duplex auto-negotiation and auto-MDIX detection on each port
Up to 9K jumbo frame support
IEEE 802.3az Energy-Efficient Ethernet
Supports IEEE 802.3x flow control and back-pressure
Product Name: 5 Port Industrial Gigabit Ethernet Switch - DIN / Wall-Mount
Manufacturer Part Number: IES51000
Product Type: Ethernet Switch
Manageable: No
Ethernet Technology: Gigabit Ethernet
Stack Port: No
Media Type Supported: Twisted Pair
Total Number of Network Ports: 5
PoE (RJ-45) Port: No
TAA Compliant: Yes
Form Factor: Rail-mountableWall Mountable
Power Consumption: 62 W
Power Source: Power Adapter
Layer Supported: 2
Environmentally Friendly: Yes
Network (RJ-45): Yes
Modular: No
Uplink Port: No
Port / Expansion Slot Details: 5 x Gigabit Ethernet Network
Networking Standards: IEEE 802.3afIEEE 802.3uIEEE 802.3abIEEE 802.3xIEEE 802.3
Product Material: Steel
Country of Origin: Taiwan
Height: 1.1"
Width: 3.5"
Depth: 4.4"
Network Technology: 10/100/1000Base-T
Packaged Quantity: 1
Package Contents: 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable2 x Wall-Mount Brackets1 x DIN-Rail Clip4 x Screws1 x Terminal Block1 x Instruction Manual
Limited Warranty: 2 Year
Token Ring Port: No
LRE Port: No
USB: No
Number of Network (RJ-45) Ports: 5
Management Port: No
Bypass: No
Manufacturer: StarTech.com
Manuf Part#: IES51000
Price: $177.47
Availability: In Stock
