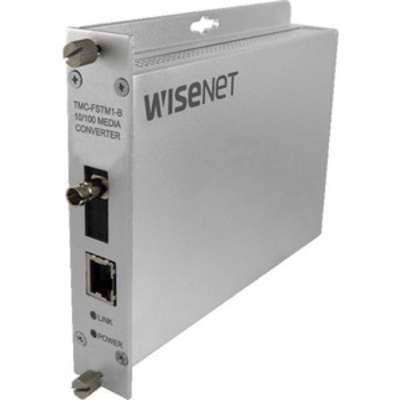

Samsung Media Fiber Converter (A), PoE+, MM

10/100 Mbps Ethernet: 10/100 BASE-T/TX electrical port, 100 BASE-FX optical port
Electrical port supports Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data.
Power Sourcing Equipment (PSE): Provides IEEE 802.3af/802.3at 30 watts PoE+ for high output demand applications of remote Ethernet equipment
Optical port supports 100 Mbps full duplex data
Automatic MDI/MDI-X crossover
Distances up to: 3 km (2 mi) MultiMode, 20 km (12 mi) Single Mode
Transparent to data encoding/compatible with major data protocols
Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and CALTRANS Traffic Signal Control Equipment Specifications
ST or SC optical connectors
1 or 2 fiber design
Product Name: Media Fiber Converter (A), PoE+, MM
Manufacturer Part Number: TMC-FSTM1POEM-A
Product Type: Transceiver/Media Converter
Ethernet Technology: Fast Ethernet
Number of Network (RJ-45) Ports: 1
Network (RJ-45): Yes
Product Family: TMC-F
Number of ST Ports: 1
Media Type Supported: Twisted PairOptical Fiber
Fiber Mode Supported: Multi-mode
Total Number of Ports: 2
ST Port Type: Duplex
PoE Port Type: PSE
Environmental Compliance: Restriction of Hazardous Substances (RoHS)Waste Electrical and Electronic Equipment Directive (WEEE)
Form Factor: Rack-mountableWall MountableStandalone
Network Technology: 10/100Base-TX100Base-FX
Maximum Distance Supported: 1.86 Mile
Power Source: Power Supply
Environmentally Friendly: Yes
Height: 1.1"
Width: 5.3"
Depth: 6.1"
Product Series: TMC-F
Manufacturer: Samsung
Manuf Part#: TMC-FSTM1POEM-A
Price: $597.07
Availability: Special Order
