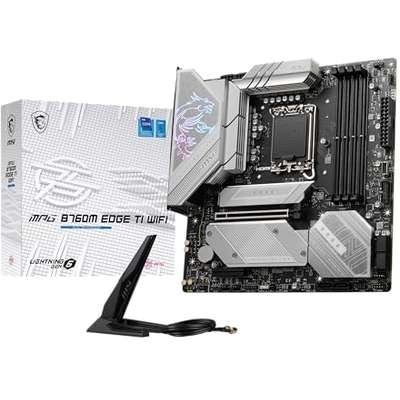

MSI MPG B760M Edge TI WiFi Intel Motherboard

See all products
MPG B760M EDGE TI WIFI is covered with a silver-white color scheme for compact white PC build lovers to show off different personalities. It is also powerful because it features Wi-Fi 6E solution, optimized DDR5 circuit, PCIe 5.0 solution, and exclusive Screwless M.2 Shield Frozr, and this is the best white B760 mATX motherboard for Intel® Core 14th Gen and 13th Gen processors.The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.TOOL-FREE M.2 INSTALLATIONIndustrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation. Extended Heatsink Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed. M.2 Shield Frozr Keeps M.2 SSDs safe while preventing throttling, making them run faster. Heavy Plated VRM Heatsink The VRM heatsink covers the upperMOS and helps dissipate the heat. 7W/mK Thermal Pad & Additional Choke Pad High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
{'Product Name': 'MPG B760M Edge TI WiFi Intel Motherboard', 'Manufacturer Part Number': 'B760MEDGETIWIFI', 'Product Type': 'Gaming Desktop Motherboard', 'Chipset Manufacturer': 'Intel', 'Chipset Model': 'B760', 'Number of Memory Slots': '4', 'Bluetooth': 'Yes', 'Gigabit Ethernet': 'Yes', 'Number of SATA Interfaces': '6', 'Wireless LAN Standard': 'IEEE 802.11 a/b/g/n/ac/ax', 'Onboard Video': 'CPU Dependent Video', 'RAID Supported': 'Yes', 'Number of PCI Express x16 Slots': '1', 'HDMI': 'Yes', 'DisplayPort': 'Yes', 'Total Number of USB Ports': '8', 'Total Number of Onboard USB Ports': '7', 'Total Number of PCI Express Slots': '1', 'Memory Form Factor': 'DIMMUDIMM', 'Total Number of Expansion Slots': '1.0', 'Number of M.2 Interfaces': '3', '2.5Gigabit Ethernet': 'Yes', 'Memory Technology': 'DDR5 SDRAM', 'Processor Socket': 'Socket LGA-1700', 'Form Factor': 'Micro ATX', 'Processor Supported': 'CorePentium GoldCeleron', 'Total Processor Supported': '1', 'Controller Type': 'Serial ATA/600', 'Maximum Memory Supported': '256 GB', 'Audio Channels': '7.1', 'Wireless LAN': 'Yes', 'Bluetooth Standard': 'Bluetooth 5.3', 'HDMI Version': '2.1', 'Number of Network (RJ-45) Ports': '1', 'Number of USB 2.0 Ports': '4', 'Number of Onboard USB 2.0 Ports': '4', 'PCI Express Standard': 'PCI Express 5.0PCI Express 3.0', 'Memory Speed Supported': '7200 MHz7000 MHz6800 MHz6600 MHz6400 MHz6200 MHz6000 MHz5800 MHz5600 MHz5400 MHz5200 MHz5000 MHz4800 MHz7800 MHz7600 MHz7400 MHz', 'Number of USB 3.2 Gen 2 Type-A Ports': '3', 'Processor Generation Supported': '12th Gen13th Gen14th Gen', 'Width': '9.6"', 'Depth': '9.6"', 'Product Model': 'MPG B760M EDGE TI WIFI', 'Product Line': 'MPG', 'RAID Levels': '01510', 'S / PDIF': 'Yes', 'Brand Compatibility': 'Intel', 'Manufacturer': 'MSI', 'Manuf Part#': 'B760MEDGETIWIFI', 'Price': '$211.80', 'Availability': 'In Stock'}
