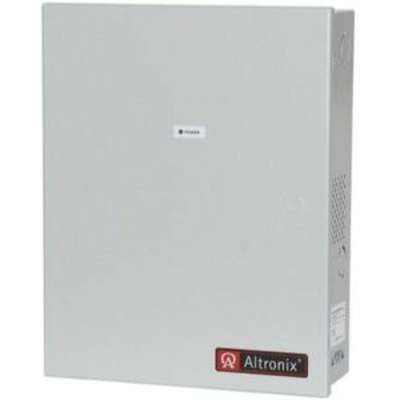

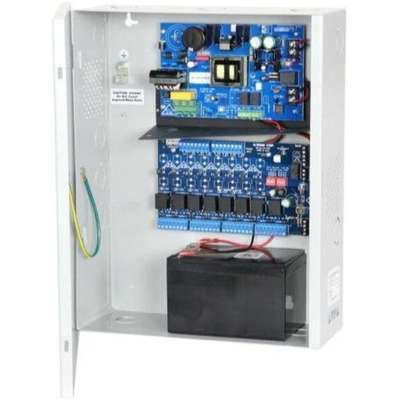

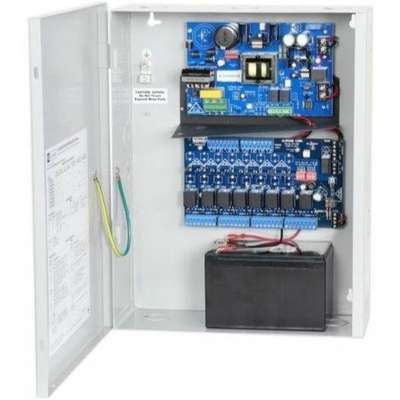

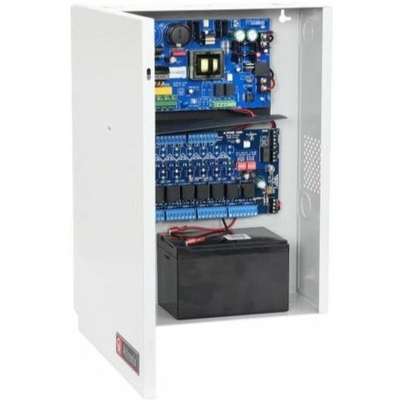

Altronix 10A 12VDC Supply with ACM8CB 220V

Overview:

At a Glance:
Fire Alarm disconnect input options: a) Normally open (NO) or normally closed (NC) dry contact input. b) Polarity reversal input from FACP signaling circuit.
Visual Indicators: Red LEDs indicate outputs are triggered (relays energized) Green LED indicates FACP disconnect is triggered AC input and DC output LED indicators.
Battery Backup: Built-in charger for sealed lead acid or gel type batteries Maximum charge current 0.7 amp Automatic switch over to stand-by battery when AC fails Zero voltage drop when unit switches over to battery backup (AC failure condition) Battery fail and battery presence supervision (form "C" contact).

Specifications:
Product Name: 10A 12VDC Supply with ACM8CB 220V
Product Type: Power Supply
Number of +12V Rails: 1
Form Factor: Enclosure
Product Model: AL1012ACMCB220
Input Voltage: 230 V AC
Output Voltage: 12 V DC
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 120.2°F (49°C)
Output Voltage Detail: 12 V DC @ 10 A
Height: 15.5"
Width: 12"
Depth: 4.5"
Output Current: 10 A
Input Frequency: 60 Hz
Certifications & Standards: CE
Manufacturer: Altronix
Manuf Part#: AL1012ACMCB220
Price: $329.34
Availability: Special Order
