Altronix TROVE3CV3/Cdvi/20DR/Ulx/PTC

Overview:

At a Glance:
24VDC power supply/charger

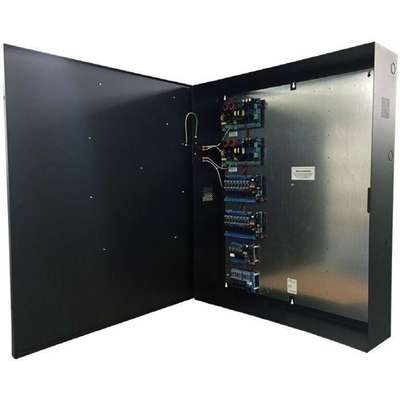

Accommodates up to ten (10) CDVI Atrium A22K/A22NB/ADH10 boards
Convenient knockout configuration
One (1) single knockout 2.415" (2" Conduit)
Sixteen (16) double knockouts
1.362" (1" Conduit) / 1.115" (3/4" Conduit)
Supervision
AC Fail
Battery Fail and Battery Presence
Agency Listings
All Altronix components of this Trove kit are UL Listed sub-assemblies. Please refer to the Sub-Assembly Installation Guides for further information
UL: UL294 - Access Control System
cUL: CAN/ULC - s319-05 - Electronic Access Control Systems
CE European Conformity
16 AWG galvanized steel backplane simplifies board layout and wire management
Enclosure accommodates up to four (4) 12VDC/12AH batteries
Lifetime Warranty

Specifications:
Product Name: TROVE3CV3/Cdvi/20DR/Ulx/PTC
Product Type: Power Integration Kit
Environmentally Friendly: Yes
Product Model: T3CVK7720D
Dimensions: Dimensions: 30.12"Wx36.12"Hx7.06 "D(768.1 mm W x 917.5 mm H x 179.3 mm D).
Limited Warranty: Lifetime
Number of Batteries Supported: 4
Battery Included: No
Maximum Operating Temperature: 120.2°F (49°C)
Recommended Usage: Door
Manufacturer: Altronix
Manuf Part#: T3CVK7720D
Price: $1606.38
Availability: Special Order
