Altronix TROVE2V2/8DR/10A/Ulx/Fuse/115

Overview:

At a Glance:
24VDC power supply/charger

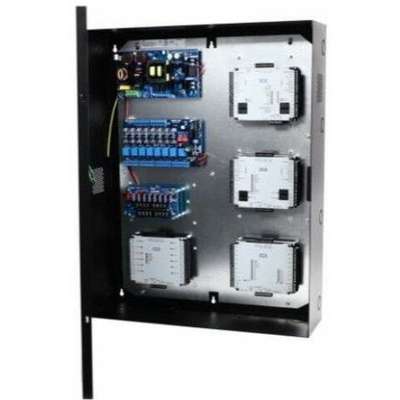

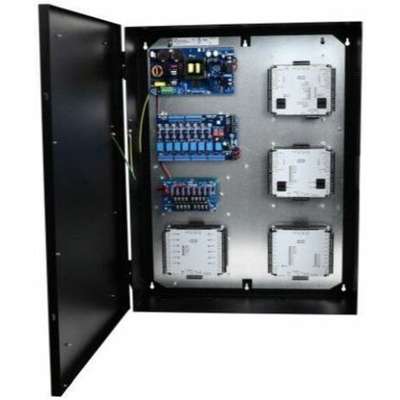

Accommodates up to four (4) VertX® V100, V200, V300, V1000, V2000 or Aero X100, X200, X300, X1100 modules
Convenient knockout configuration:
One (1) single knockout 2.415" (2" Conduit)
Sixteen (16) double knockouts
1.362" (1" Conduit) / 1.115" (3/4" Conduit)
16 AWG galvanized steel backplane simplifies board layout and wire management
Supervision
AC Fail
Battery Fail and Battery Presence
Agency Listings:
All Altronix components of this Trove kit are UL Listed sub-assemblies. Please refer to the Sub-Assembly Installation Guides for further information
UL: UL294 - Access Control System
cUL: CAN/ULC - s319-05 - Electronic Access Control Systems
CE European Conformity
Enclosure accommodates up to four (4) 12VDC/12AH batteries
Lifetime Warranty

Specifications:
Product Name: TROVE2V2/8DR/10A/Ulx/Fuse/115
Product Type: Power Integration Kit
Environmentally Friendly: Yes
Product Model: T2VK78

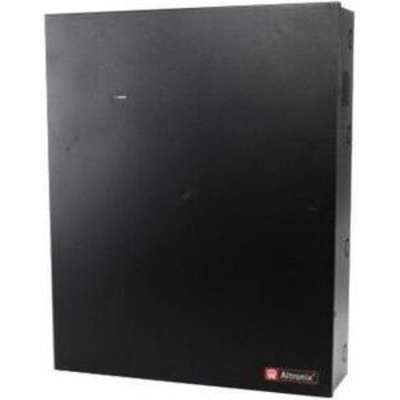

Dimensions: Dimensions 21.5"Wx27.25"Hx6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
Limited Warranty: Lifetime
Number of Batteries Supported: 4
Maximum Operating Temperature: 120.2°F (49°C)
Recommended Usage: Door
Manufacturer: Altronix
Manuf Part#: T2VK78
Price: $851.88
Availability: Special Order
