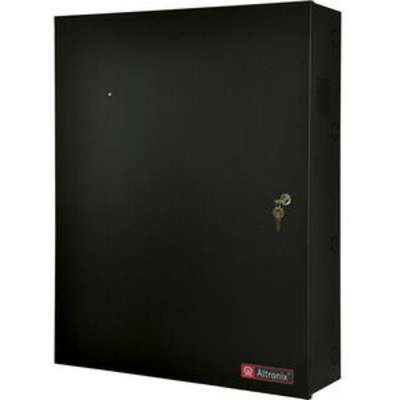

Altronix TROVE2PX2/8DR/Ulx/10A/PTC

Overview:

At a Glance:
24VDC @ 10A power supply charger
Accommodates the following Paxton modules: Net2 Plus, Paxton10
Convenient knockout configuration
One (1) single knockout 2.415" (2" Conduit)
Sixteen (16) double knockouts
1.362" (1" Conduit) / 1.115" (3/4" Conduit)
Supervision
Battery Fail and Battery Presence
Agency Listings
All Altronix components of this Trove kit are UL Listed sub-assemblies. Please refer to the Sub-Assembly Installation Guides for further information
UL: UL294 - Access Control System
cUL: CAN/ULC - s319-05 - Electronic Access Control Systems
CE European Conformity
16 AWG galvanized steel backplane simplifies board layout and wire management
Enclosure accommodates up to four (4) 12VDC/12AH batteries
Lifetime Warranty

Specifications:
Product Name: TROVE2PX2/8DR/Ulx/10A/PTC
Manufacturer Part Number: T2PXK78D
Product Type: Power Integration Kit
Environmentally Friendly: Yes
Dimensions: Dimensions: 21.5"Wx27.25"Hx6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
Limited Warranty: Lifetime
Number of Batteries Supported: 4
Battery Included: No
Maximum Operating Temperature: 120.2°F (49°C)
Recommended Usage: Door
Manufacturer: Altronix
Manuf Part#: T2PXK78D
Price: $857.45
Availability: Special Order
