Altronix TROVE2KA2/8DR/6A/Ulxb/PTC

Overview:

At a Glance:
24VDC power supply/charger
Accommodates the following Keyscan controllers: either CA250B, CA4500B or CA8500B, up to two (2) OCB8, and one (1) of each DPS15 and CIM
Convenient knockout configuration:
One (1) single knockout 2.415" (2" Conduit)
Sixteen (16) double knockouts 1.362" (1" Conduit) / 1.115" (3/4" Conduit)

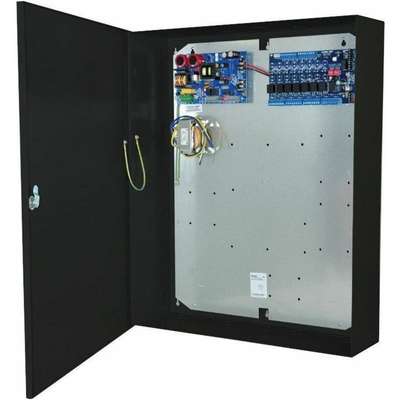

16 AWG galvanized steel backplane simplifies board layout and wire management
Enclosure accommodates up to four (4) 12VDC/12AH batteries
Supervision
AC Fail
Battery Fail and Battery Presence
Agency Listings:
All Altronix components of this Trove kit are UL Listed sub-assemblies. Please refer to the Sub-Assembly Installation Guides for further information
UL: UL294 - Access Control System
cUL: CAN/ULC - s319-05
Electronic Access Control Systems
CE European Conformity
Lifetime Warranty

Specifications:
Product Name: TROVE2KA2/8DR/6A/Ulxb/PTC
Manufacturer Part Number: T2KK38D
Product Type: Access/Power Integration Kit
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Environmentally Friendly: Yes
Dimensions: Dimensions: 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D)
Limited Warranty: Lifetime
Battery Rechargeable: Yes
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 120.2°F (49°C)
Minimum Storage Temperature: -4°F (-20°C)
Maximum Storage Temperature: 158°F (70°C)
Recommended Usage: Door
Maximum Relative Humidity (Non-condensing): 85%
Material Details: 16 AWG Galvanized Steel Backplane
Manufacturer: Altronix
Manuf Part#: T2KK38D
Price: $672.57
Availability: Special Order
