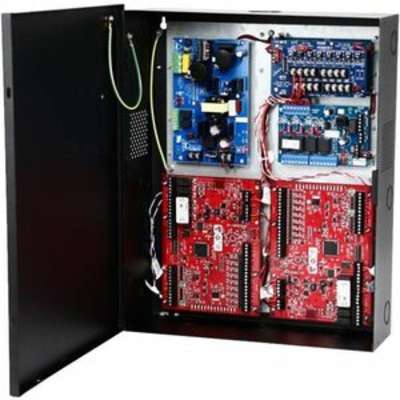

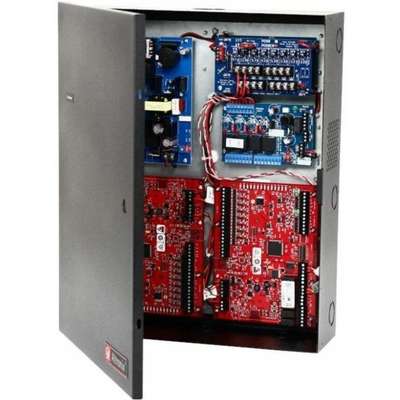

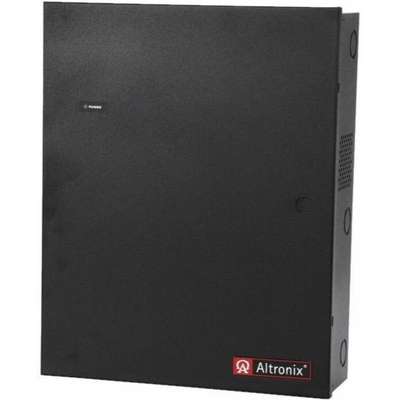

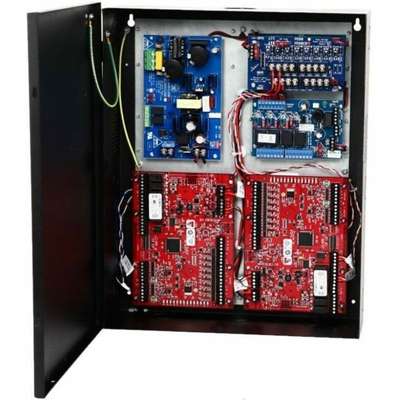

Altronix T1MK14SD/Mag/Ulx/PTC/115

Overview:

At a Glance:
Accommodates the following Mercury controllers: 2 - MR52
Convenient knockout configuration: - One (1) knockout - 1-1/2" Conduit - Nine (9) double knockouts - 3/4" Conduit and 1" Conduit
Unit includes: - Removable backplane - Wire management - Custom wire assemblies for power distribution with terminal blocks for controller connections
16 AWG galvanized steel backplane simplifies board layout and wire management
Supervision - AC Fail - Battery Fail and Battery Presence
Agency Listings: - All Altronix components of this Trove kit are UL Listed sub-assemblies. Please refer to the Sub-Assembly Installation Guides for further information - UL: UL294 - Access Control System - cUL: CAN/ULC - s319-05 - Electronic Access Control Systems - CE European Conformity
Enclosure accommodates up to two (2) 12VDC/7AH batteries -
Lifetime Warranty

Specifications:
Product Name: T1MK14SD/Mag/Ulx/PTC/115
Product Type: Access/Power Integration Kit
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Product Model: T1M1LCK3D
Dimensions: 18"H x 14.5"W x 4.62"D (457.2mmH x 368.3mmW x 118.0mmD)
Limited Warranty: Lifetime
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 120.2°F (49°C)
Minimum Storage Temperature: -4°F (-20°C)
Maximum Storage Temperature: 158°F (70°C)
Recommended Usage: Door
Maximum Relative Humidity (Non-condensing): 85%
Input Voltage: 115 V AC24 V DC12 V DC
Manufacturer: Altronix
Manuf Part#: T1M1LCK3D
Price: $815.98
Availability: Special Order
