Altronix IP and PoE+ over Coax Solution

IEEE 802.3af (15W) and IEEE 802.3at (30W).
Throughput is rated to pass 25Mbps at distances up to 500m.
Eliminates the costs and labor associated with installing new network cabling.
Retrofit digital IP cameras in an analog CCTV installation.
Auto detection and protection of legacy non-PoE cameras/devices.
Works with Megapixel, HD720, HD1080 & VGA (SD) cameras.
Extends Network link distance in an industrial environment.
Upgrades deployed CCTV Coax to a digital network for Retail, Casinos, Airports, Schools, Hospitals, etc.

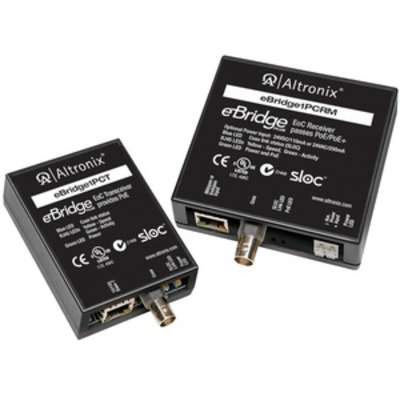

eBridge1PCRMT Transceiver/Media Converter
1 x eBridge1PCRM EoC Single Port Receiver
Product Name: IP and PoE+ over Coax Solution
Product Type: Transceiver/Media Converter
Ethernet Technology: Fast Ethernet
Number of Network (RJ-45) Ports: 1
Network (RJ-45): Yes
Product Family: eBridge
Media Type Supported: CoaxialTwisted Pair
Total Number of Ports: 1
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Network Technology: 10/100Base-T
Maximum Distance Supported: 1640.42 ft
Power Source: DC
Environmentally Friendly: Yes
Height: 1"
Width: 2.5"
Depth: 3.8"
Product Model: eBridge1PCRMT
Product Line: eBridge
Packaged Quantity: 1
Limited Warranty: Lifetime
NDAA Compliant: Yes
Manufacturer: Altronix
Manuf Part#: EBRIDGE1PCRMT
Price: $279.77
Availability: Special Order
