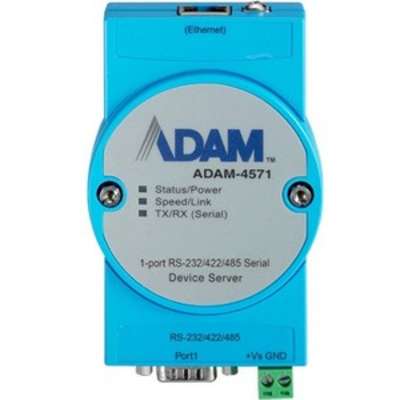

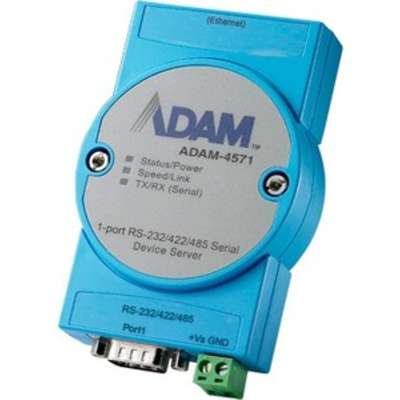

B&B Electronics 1 Port RS232/422/485 Serial Device Server

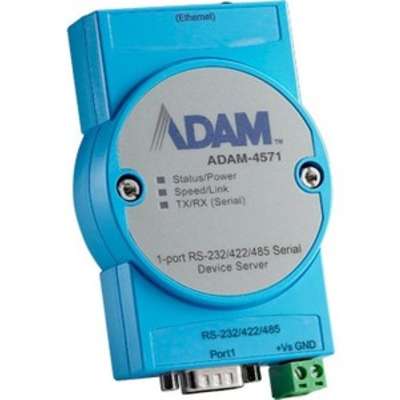

Right View
Supports RS-232/422/485 serial communication
Supports baud rate up to 921.6 kbps
Allows a max. of 5 hosts to access one serial port
Allows a max. of 16 hosts to be accessed as TCP client mode
Provides COM port redirection (Virtual COM), TCP and UDP operation modes
Provides 10/100 Mbps auto-sensing Ethernet port
Supports auto re-connection function
Built-in 15 KV ESD protection for all serial signals
Automatic RS-485 data flow control
Supports remote update firmware
Product Name: 1 Port RS232/422/485 Serial Device Server
Manufacturer Part Number: ADAM-4571-CE
Product Type: Device Server
Network Standard: 10/100Base-TX
Ethernet Technology: Fast Ethernet
Number of Network (RJ-45) Ports: 1
Serial Port: Yes
Media Type Supported: Twisted Pair
Number of Serial Ports: 1
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Form Factor: DIN Rail MountableWall Mountable
Environmentally Friendly: Yes
Network (RJ-45): Yes
Country of Origin: Taiwan
Height: 5.1"
Width: 2.8"
Depth: 1.2"
Product Model: ADAM-4571
Packaged Quantity: 1
Limited Warranty: 5 Year
Manufacturer: B&B Electronics
Manuf Part#: ADAM-4571-CE
Price: $146.60
Availability: Special Order
