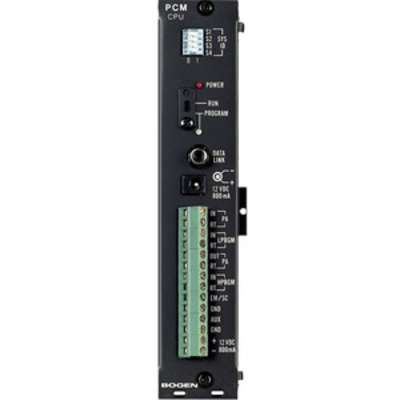

Bogen Communications PCMCPU Central Processing Unit

Overview:
Simultaneous high- & low-power paging
Zone and zone group paging (32 paging zone groups, each with up to 99 zones)
Talkback capabilities (requires PCMTBM module)
Background music assigned per zone
Local BGM sourcing capability
Night ringer zone group
Emergency zone group with choice of built-in tones or outside tone source
Emergency all-facility page override
Eight daily time-triggered signaling events (requires PCMTBM module)
Pattern & echo code calling
Daily master clock synchronization
Relay driver per zone
Auxiliary contacts
At a Glance:
One zone to 99 zones of simultaneous high-power
and low-power paging
Up to 32 paging zone groups
Universal analog telephone interface designed for
direct connection to loop start and ground start
trunks, to PBX or KEY paging ports which supply
DTMF capability, and to analog T/R lines
Modular integration assures reconfiguring and
expansion with minimum time and expense
Optional talkback paging and time-triggered signaling events with PCMTBM module

Specifications:
Product Name: PCMCPU Central Processing Unit
Manufacturer Part Number: PCMCPU
Product Type: Zone Paging System Central Processing Module
Height: 7.5"
Width: 1.5"
Depth: 4.3"

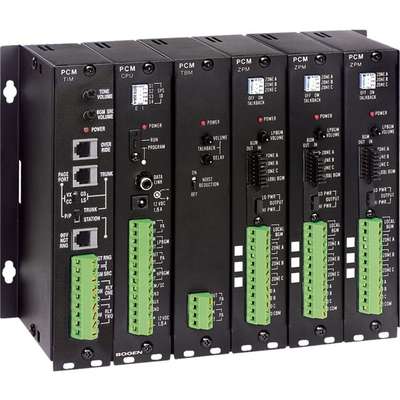

Product Model: PCM2000
Manufacturer: Bogen Communications
Manuf Part#: PCMCPU
Price: $121.03
Availability: Special Order
