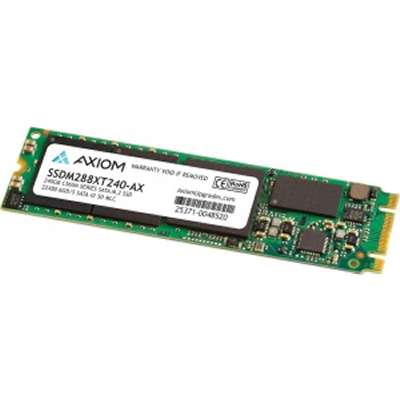

Axiom Upgrades 240GB C565n Series SATA M.2 22x80 SSD 6Gb/s SATA-III

The Axiom C565n Series M.2 SSD combines performance and reliability with low power operation to make the ideal mobile drive. The high read and write performance will satisfy the most demanding power user. While the low power mode extends battery life for the road warrior. Providing an industry-leading bandwidth of more than 565MB/sec transfers, the Axiom C565n Series M.2 SSD can approach the limits of the SATA 6Gb/s interface on large transfers. Performance reaches enterprise class standards with up to 86,000 IOPS. A robust LDPC algorithm and StaticDataRefresh technology protect the data. Efficient bad block management and reduced write amplification further bolster endurance. Drive health is monitored using an SSD-specific set of S.M.A.R.T. attributes. The combination of these techniques provides data protection unrivaled in the storage industry.
See all products
Silicon Motion SM2258 controller
SATA 3.1 Compliant SATA 6Gb/s - backwards compatible with SATA 3Gb/s and 1.5Gb/s
ATA/ATAPI-8-ACS3 command set compliant
Industry-standard 512 byte sector support
SLC caching accelerates burst performance
DTT mode enhances sustained write performance
Global wear leveling evens program/erase counts to extend drive lifespan
StaticDataRefresh technology ensures data integrity
Intelligent garbage collection routines for advanced free space management
TRIM command support (OS dependent)
Product Name: 240GB C565n Series SATA M.2 22x80 SSD 6Gb/s SATA-III
Manufacturer Part Number: SSDM288XT240-AX
Product Type: Solid State Drive
Wireless LAN: No
Product Family: C565n
Drive Interface: SATA
Drive Interface Standard: SATA/600
TAA Compliant: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Drive Type: Internal
Form Factor: M.2 2280
Storage Capacity: 240 GB
Environmentally Friendly: Yes
Maximum Read Transfer Rate: 295 MB/s
Maximum Write Transfer Rate: 315 MB/s
Width: 0.9"
Depth: 3.1"
Product Series: C565n
Limited Warranty: 3 Year
Operating Power Consumption: 2.10 W
Manufacturer: Axiom Upgrades
Manuf Part#: SSDM288XT240-AX
Price: $38.60
Availability: In Stock
