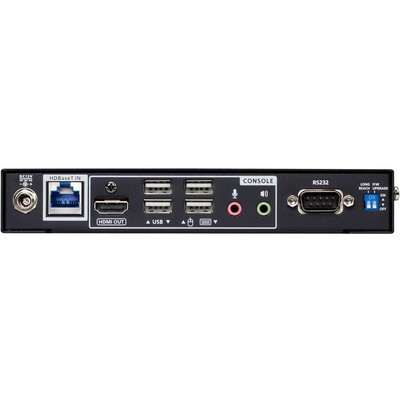

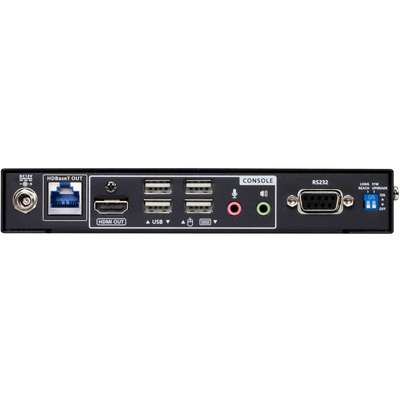

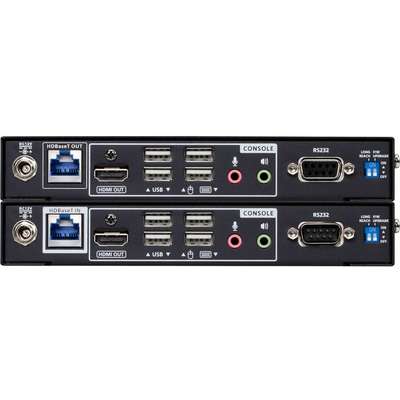

Rear View
HDBaseT 3.0 - supports True 4K HDMI, audio, RS232, Ethernet, and USB signal transmission across a long distance via a single Cat 6A cable (ATEN 2L-2920 Cat 6A Cable recommended) or above with no compression and zero latency
Superior video quality - supports HDR10+ and video resolutions up to True 4K (3840 x 2160 @ 60 Hz 4:4:4 and 4096 x 2160 @ 60 Hz 4:4:4) over 100 m
Dual console operation - control the system via the USB keyboard, mouse and HDMI monitor consoles installed on both the local and remote ends
Active console selectable via the pushbutton on the remote unit and local unit - enables USB-based signal control from either the remote or local end, with LEDs indicating the USB control mode
Flexible 4 x USB 2.0 extension - each of the remote unit and the local unit contains 2 ports for USB keyboard and mouse connection and 2 ports for other USB peripheral connection
Supports individual stereo audio and HDMI audio formats including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
HDCP2.3 and 2.2 compliant
Supports widescreen formats
Built-in 8KV/15KV ESD protection
Firmware upgradable
1 x CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender (Local Unit)
1 x CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender (Remote Unit)
1 x HDMI Cable
1 x Microphone Cable
1 x Speaker Cable
1 x USB Type-A to USB Type-B Cable
2 x Mounting Kits
8 x Foot Pads
2 x Power Adapters and Power Cords
1 x User Instructions
Product Name: USB True 4K HDMI HDBASET3.0 KVM Extender
Product Type: KVM Console/Extender
Maximum Video Resolution: 4096 x 2160
Maximum Operating Distance: 328.08 ft
USB: Yes
HDMI: Yes
Network (RJ-45): Yes
Number of Computers Supported: 1
Number of Local Users Supported: 1
Number of Remote Users Supported: 1
Device Type: KVM Extender
Connectivity Technology: Wired
Form Factor: Rack-mountable
Graphic Mode: 4K
Number of HDMI Ports: 3
Number of Network (RJ-45) Ports: 4
Number of USB Ports: 9
Transmitter Height: 1.13"
Transmitter Width: 6.14"
Receiver Height: 1.13"
Receiver Width: 6.14"
Transmitter Weight (Approximate): 1.79 lb
Receiver Weight (Approximate): 1.81 lb
Product Model: CE840
Input Voltage: 12 V DC
Receiver Length: 7.02"
Transmitter Length: 7.02"
Manufacturer: ATEN
Manuf Part#: CE840
Price: $1027.16
Availability: Special Order
