ATEN HDMI HDBaseT Extender with POH/BI-Directio

HDBaseT Connectivity - extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable
Supports HDBaseT Long Reach Mode - Up to a maximum range of 150 meters @ 1080p
4k x 2k HDMI transmission distance up to 100m over Cat 6a or ATEN 2L-2910 Cat 6 cable
HDBaseT Anti-jamming - resists signal interference during high - quality video transmission using HDBaseT technology
POH (Power over HDBaseT) - supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable
Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
Bi-directional IR channel - Two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time
Rack- Mountable

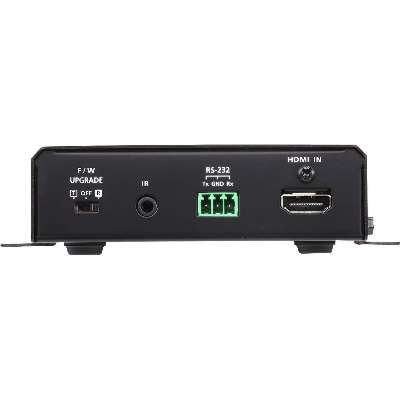

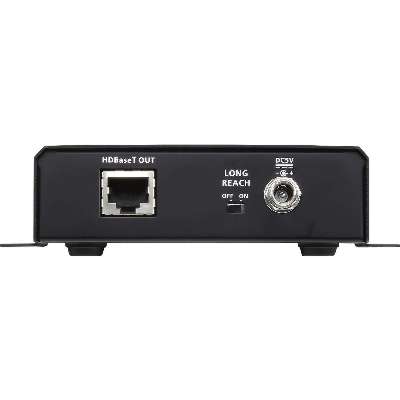

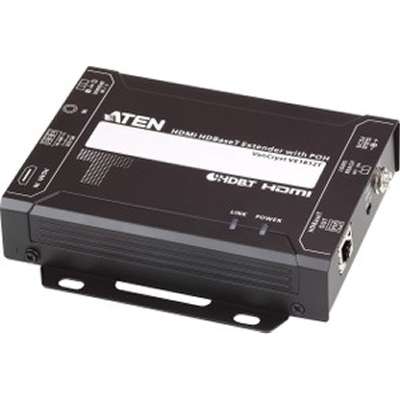

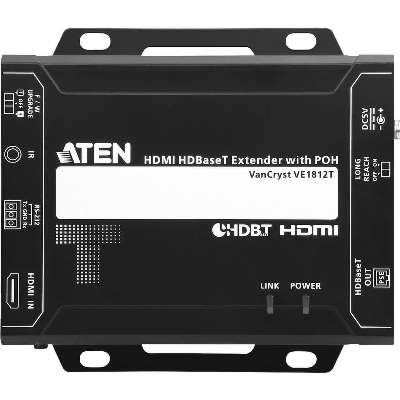

1 x VE1812 HDMI HDBaseT Transmitter with POH

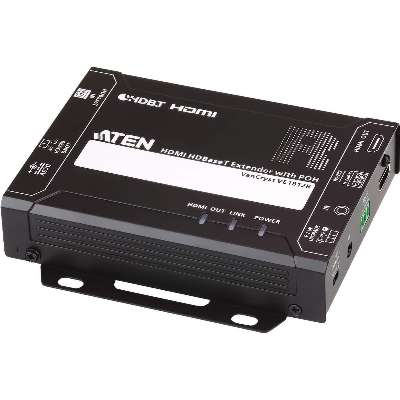

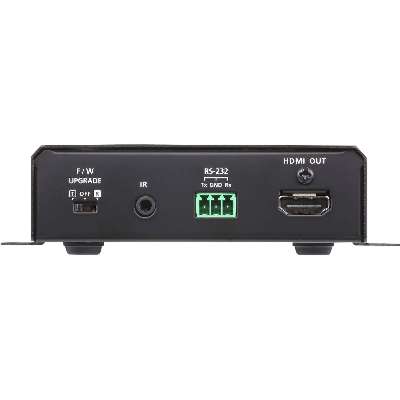

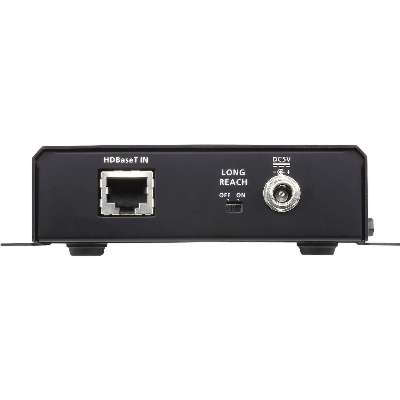

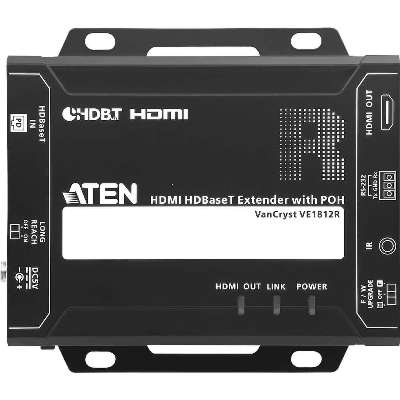

1 x VE1812 HDMI HDBaseT Receiver with POH
1 x Power Adapter
1 x IR Transmitter
1 x IR Receiver
2 x RS-232 Terminal Blocks
1 x User Instructions
Product Name: HDMI HDBaseT Extender with POH/BI-Directio
Product Type: Video Extender Transmitter/Receiver
Maximum Operating Distance: 492.13 ft
Number of Network (RJ-45) Ports: 2
Product Family: VanCryst
Number of HDMI Inputs: 1
Media Type Supported: Twisted Pair
Number of Output Devices Supported: 1
Number of Input Devices Supported: 1
Environmental Compliance: Restriction of Hazardous Substances (RoHS)Waste Electrical and Electronic Equipment Directive (WEEE)
Connectivity Technology: Wired
Form Factor: Rack-mountable
Graphics Modes: 4K
Environmentally Friendly: Yes
Maximum Video Resolution: 3840 x 2160
Twisted Pair Cable Standard: Category 6a
Network (RJ-45): Yes
Number of HDMI Outputs: 1
HDMI In: Yes
HDMI Out: Yes
Transmitter Height: 1.18"
Transmitter Width: 4.84"
Transmitter Depth: 5.53"
Receiver Depth: 5.53"
Transmitter Weight (Approximate): 2.03 lb
Country of Origin: Taiwan
Product Model: VE1812
Product Line: VanCryst
Serial Port: Yes
Manufacturer: ATEN
Manuf Part#: VE1812
Price: $375.11
Availability: In Stock
