Uses Cat 5e cables to connect the local and remote units
Supports one local and one remote display
Long distance transmission - up to 150 m
Adjustable gain control - manually adjust signal strength to compensate for distance
Superior video quality - up to 1920x1200 (30 m);1600x1200 (100 m); 1280x1024 (150 m)
Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
Supports wide screen formats
Supports hot-plugging
Built-in 8KV/15KV ESD protection
Supports DDC for the local monitor
1 x VE150AT Video Extender (Local unit)
1 x VE150AR Video Extender (Remote unit)
2 x Power Adapters
1 x VGA Cable
1 x Mounting Kit
1 x User Instructions

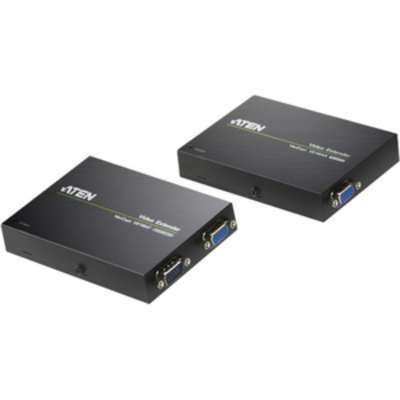

Product Name: VE150A VGA Cat 5 Extender (1280 x 1024@150m)
Manufacturer Part Number: VE150A
Product Type: Video Extender Transmitter/Receiver
Maximum Operating Distance: 492.13 ft
Number of Network (RJ-45) Ports: 2
Media Type Supported: Twisted Pair
Number of Output Devices Supported: 2
Number of Input Devices Supported: 1
Number of VGA Inputs: 1
Environmental Compliance: Restriction of Hazardous Substances (RoHS)Waste Electrical and Electronic Equipment Directive (WEEE)
Connectivity Technology: Wired
Form Factor: Rack-mountable
Graphics Modes: VGAXGASVGAUXGAWUXGA
Environmentally Friendly: Yes
Maximum Video Resolution: 1920 x 1200
Twisted Pair Cable Standard: Category 5
Network (RJ-45): Yes
Number of VGA Outputs: 2
VGA In: Yes
VGA Out: Yes
Transmitter Height: 0.89"
Transmitter Width: 3.56"
Transmitter Weight (Approximate): 8.47 oz
Country of Origin: Taiwan
Product Material: Metal
Length: 5"
Input Voltage: 5.3 V DC
Manufacturer: ATEN
Manuf Part#: VE150A
Price: $94.47
Availability: Special Order
