ASUS R680E ATX Motherboard LGA1700R680E USB3.2 G2 Com MB

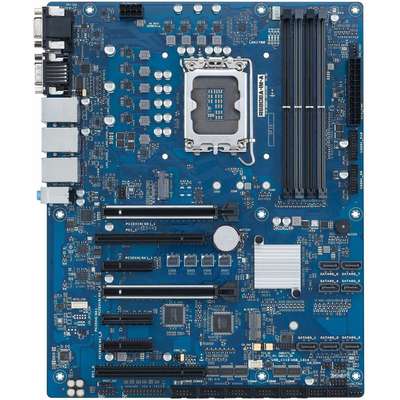

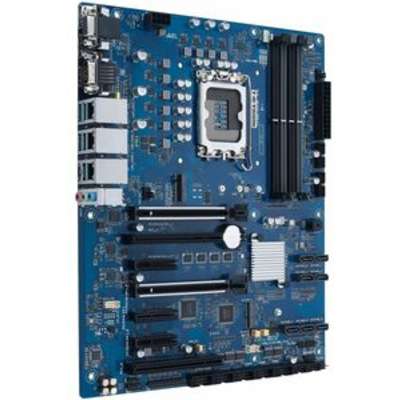

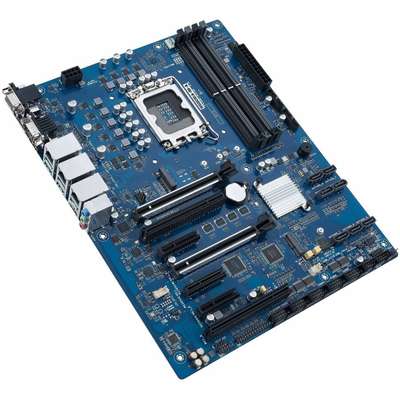

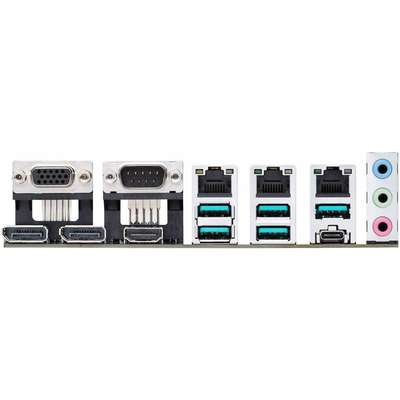

R680E ATX motherboard, LGA1700 Socket for 14th/13th/12th Gen Intel CPU, 125W TDP, 4*U-DIMM, 3*Lan, 2*PCIe x16 slots, 2*PCI, VGA, HDMI, DP++, 2*M.2 slot, 6*COM, 7*SATA, USB 3.2 Gen 2, USB Type C Supports up to 125-watt Intel® 14th/13th/12th Gen processors 2x PCIe® x16 slots support dual graphic cards Four U-DIMM slots for up to 128 GB 4400 MHz DDR5 Supports VGA, HDMI®, and DisplayPort™ Seven-year longevity supply program Advanced I/O and connectivity features Wide temperature range endurance: 0-60° CThe ASUS R680EA-IM-A is an ATX industrial motherboard featuring rich I/O capabilities and advanced connectivity. It offers multiple display outputs, legacy options for industrial applications, COM ports and three Intel LAN ports. And there is rich expandability with a PCIe slot, PCI slot, M.2 E key, and M.2 M key. This makes the ASUS R680EA-IM-A an ideal choice for a wide range of embedded applications.As the world's No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
{'Product Name': 'R680E ATX Motherboard LGA1700R680E USB3.2 G2 Com MB', 'Product Type': 'Industrial Motherboard', 'Chipset Manufacturer': 'Intel', 'Chipset Model': 'R680E', 'Number of Memory Slots': '4', 'Gigabit Ethernet': 'Yes', 'Number of SATA Interfaces': '7', 'RAID Supported': 'Yes', 'Number of PCI Express x16 Slots': '2', 'HDMI': 'Yes', 'VGA': 'Yes', 'DisplayPort': 'Yes', 'Total Number of Onboard USB Ports': '8', 'Total Number of PCI Express Slots': '2', 'Memory Form Factor': 'UDIMM', 'Total Number of Expansion Slots': '2.0', 'Number of M.2 Interfaces': '2', 'Environmental Compliance': 'Restriction of Hazardous Substances (RoHS)', 'Memory Technology': 'DDR5 SDRAM', 'Processor Socket': 'Socket LGA-1700', 'Form Factor': 'ATX', 'Processor Supported': 'Core i9Core i7Core i5Core i3PentiumCeleron', 'Total Processor Supported': '1', 'Maximum Memory Supported': '128 GB', 'Environmentally Friendly': 'Yes', 'HDMI Version': '2.1', 'Number of Network (RJ-45) Ports': '3', 'Number of Onboard USB 2.0 Ports': '4', 'PCI Express Standard': 'PCI Express 5.0PCI Express 4.0PCI Express 3.0', 'Memory Speed Supported': '4400 MHz4000 MHz3600 MHz', 'Processor Generation Supported': '14th Gen13th Gen12th Gen', 'Width': '12"', 'Depth': '9.6"', 'Product Model': 'R680EA-IM-A', 'RAID Levels': '01510', 'Brand Compatibility': 'Intel', 'Manufacturer': 'ASUS', 'Manuf Part#': 'R680EA-IM-A', 'Price': '$275.16', 'Availability': 'Special Order'}
