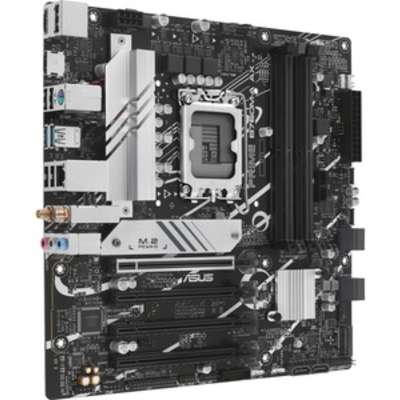

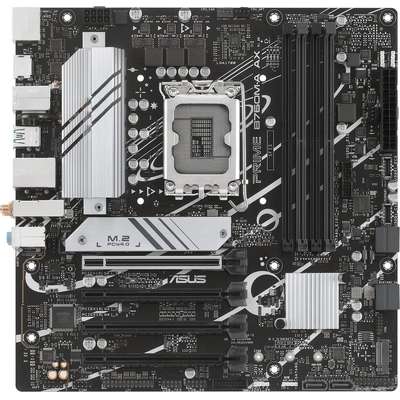

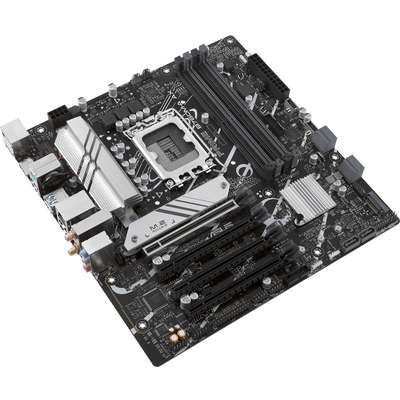

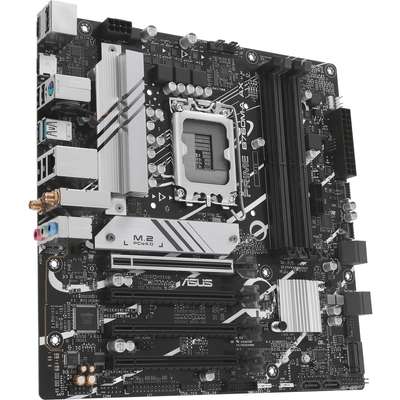

Asus MB Prime B760M-A AX B760 LGA1700 Max.128GB DDR5 PCIE MATX

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A AX provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. FLEXIBILITYComprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. Intelligent Control UEFI BIOS Intelligent ControlASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans. All-Around Energy EfficiencyThe Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows. COOLINGPRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. M.2 HeatsinkM.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal. PERFORMANCEThe PRIME B760 series are built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options. Robust Power DesignStable power is essential to extract every last bit of performance out of Intel® processors. The PRIME B760M-A AX is geared to cater to the demands of these high-core-count CPUs. ProCool ConnectorProprietary connectors augment the motherboard's link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors
{'Product Name': 'Asus MB Prime B760M-A AX B760 LGA1700 Max.128GB DDR5 PCIE MATX', 'Product Type': 'Desktop Motherboard', 'Chipset Manufacturer': 'Intel', 'Chipset Model': 'B760', 'Number of Memory Slots': '4', 'Bluetooth': 'Yes', 'Gigabit Ethernet': 'Yes', 'Number of SATA Interfaces': '6', 'Wireless LAN Standard': 'IEEE 802.11 a/b/g/n/ac/ax', 'Onboard Video': 'CPU Dependent Video', 'RAID Supported': 'Yes', 'Number of PCI Express x16 Slots': '4', 'HDMI': 'Yes', 'DisplayPort': 'Yes', 'Total Number of USB Ports': '6', 'Total Number of Onboard USB Ports': '10', 'Total Number of PCI Express Slots': '4', 'Memory Form Factor': 'DIMMUDIMM', 'Total Number of Expansion Slots': '4.0', 'Number of M.2 Interfaces': '2', '2.5Gigabit Ethernet': 'Yes', 'Memory Technology': 'DDR5 SDRAM', 'Processor Socket': 'Socket LGA-1700', 'Form Factor': 'Micro ATX', 'Processor Supported': 'CorePentium GoldCeleron', 'Total Processor Supported': '1', 'Controller Type': 'Serial ATA/600', 'Maximum Memory Supported': '128 GB', 'Audio Channels': '7.1', 'Wireless LAN': 'Yes', 'Bluetooth Standard': 'Bluetooth 5.2', 'HDMI Version': '2.1', 'Number of Network (RJ-45) Ports': '1', 'Number of Onboard USB 2.0 Ports': '4', 'Onboard S / PDIF Header': 'Yes', 'PCI Express Standard': 'PCI Express 4.0', 'Memory Speed Supported': '7000 MHz6800 MHz7200 MHz6600 MHz6400 MHz6200 MHz6000 MHz5800 MHz5600 MHz5400 MHz5200 MHz5000 MHz4800 MHz', 'Number of USB 3.2 Gen 2 Type-A Ports': '2', 'Processor Generation Supported': '12th Gen13th Gen', 'Width': '9.6"', 'Depth': '9.6"', 'Product Model': 'PRIME B760M-A AX', 'Product Line': 'Prime', 'RAID Levels': '01105', 'Brand Compatibility': 'Intel', 'Manufacturer': 'ASUS', 'Manuf Part#': 'PRIME B760M-A AX', 'Price': '$128.98', 'Availability': 'Special Order'}
