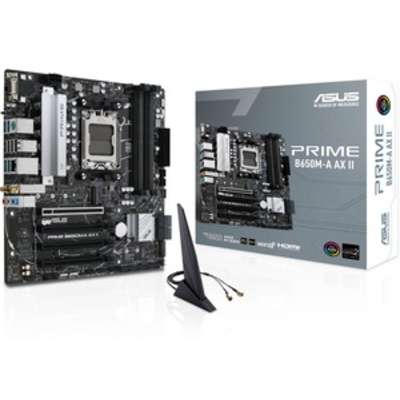

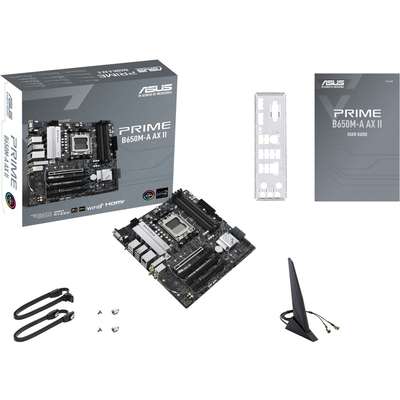

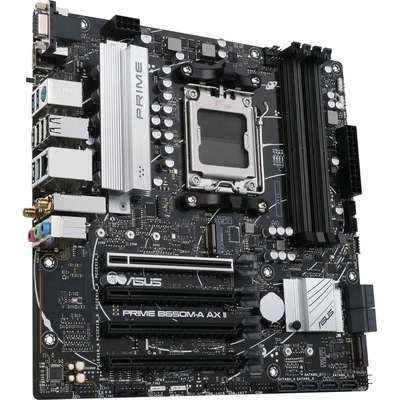

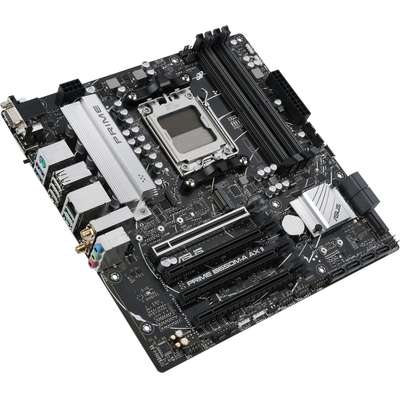

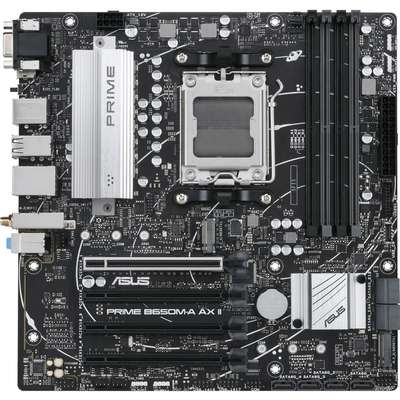

ASUS Prime B650M A AX II

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A AX II provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. FLEXIBILITY Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. CPU Performance Boost AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher. All-Around Energy Efficiency The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows. Flexible Cooling Controls ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS. Precise Digital Power ControlThe Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance. UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Quick and Simple Setup EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings - all to help you get your rig up and running in no time.
{'Product Name': 'Prime B650M A AX II', 'Manufacturer Part Number': 'PRIMEB650M-AAXII', 'Product Type': 'Gaming Desktop Motherboard', 'Chipset Manufacturer': 'AMD', 'Chipset Model': 'B650', 'Number of Memory Slots': '4', 'Bluetooth': 'Yes', 'Gigabit Ethernet': 'Yes', 'Number of SATA Interfaces': '8', 'Wireless LAN Standard': 'IEEE 802.11 a/b/g/n/ac/ax', 'RAID Supported': 'Yes', 'Number of PCI Express x16 Slots': '4', 'HDMI': 'Yes', 'VGA': 'Yes', 'DisplayPort': 'Yes', 'Total Number of USB Ports': '8', 'Total Number of Onboard USB Ports': '7', 'Total Number of PCI Express Slots': '4', 'Memory Form Factor': 'DIMMUDIMM', 'Total Number of Expansion Slots': '4.0', 'Number of M.2 Interfaces': '2', '2.5Gigabit Ethernet': 'Yes', 'Environmental Compliance': 'Restriction of Hazardous Substances (RoHS)', 'Memory Technology': 'DDR5 SDRAM', 'Processor Socket': 'Socket AM5', 'Form Factor': 'Micro ATX', 'Processor Supported': 'Ryzen 7', 'Total Processor Supported': '1', 'Controller Type': 'Serial ATA/600', 'Maximum Memory Supported': '128 GB', 'Environmentally Friendly': 'Yes', 'Audio Channels': '7.1', 'Wireless LAN': 'Yes', 'Bluetooth Standard': 'Bluetooth 5.2', 'HDMI Version': '2.1', 'Number of Network (RJ-45) Ports': '1', 'Number of Onboard USB 2.0 Ports': '4', 'PCI Express Standard': 'PCI Express 4.0PCI Express 5.0', 'Memory Speed Supported': '6400 MHz6200 MHz6000 MHz5800 MHz5600 MHz5400 MHz5200 MHz5000 MHz4800 MHz', 'Number of USB 3.2 Gen 1 Type-A Ports': '2', 'Number of USB 3.2 Gen 2 Type-A Ports': '2', 'Width': '9.6"', 'Depth': '9.6"', 'Product Model': 'B650M-A AX II', 'Product Line': 'Prime', 'RAID Levels': '0110', 'S / PDIF': 'Yes', 'Limited Warranty': '3 Year', 'Brand Compatibility': 'AMD', 'Manufacturer': 'ASUS', 'Manuf Part#': 'PRIMEB650M-AAXII', 'Price': '$161.94', 'Availability': 'In Stock'}
