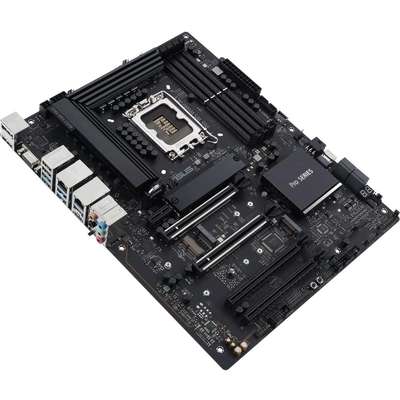

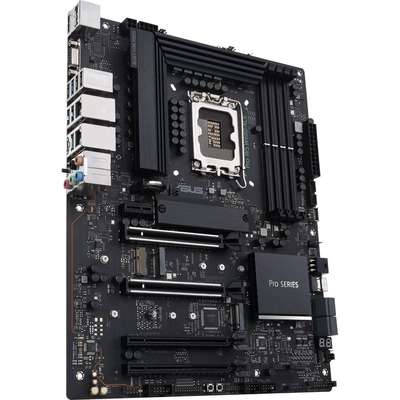

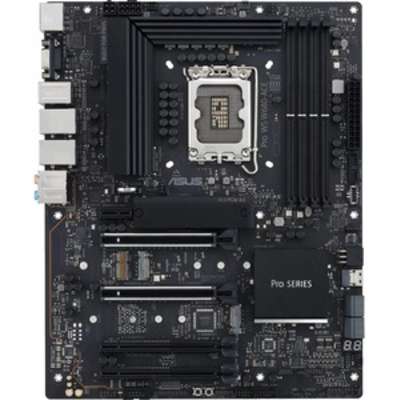

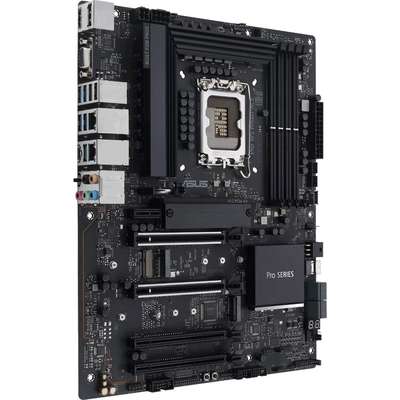

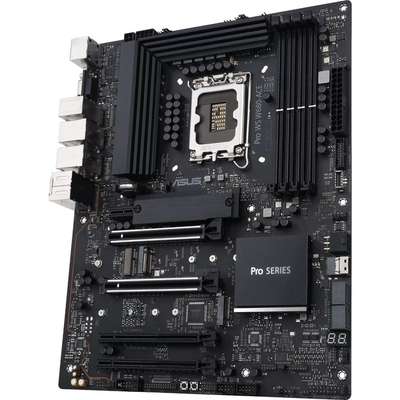

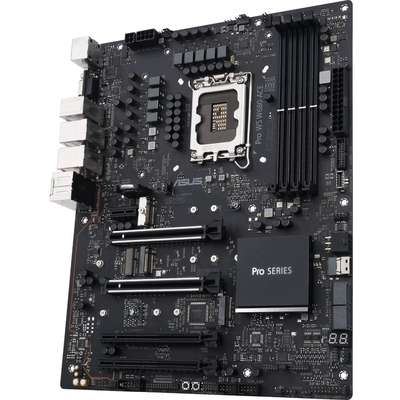

Asus MB Pro WS W680-Ace W680 LGA1700 Max.128GB DDR5 ATX

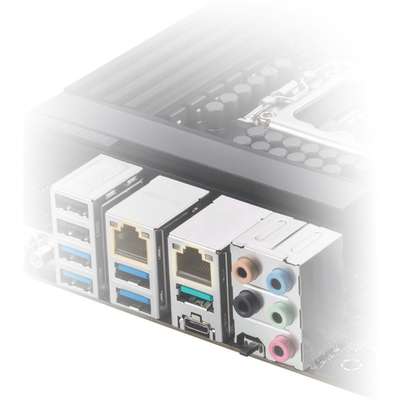

Pro WORKSTATION MOTHERBOARD ASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software, so they're also an efficient and cost-effective option for IT administrators. Ultra Powerful Back IO The motherboard comes with four USB 3.2 Gen 1 type connector, one reversible USB Type-C connector and front-panel connector to support additional USB expansions. ECC Memory Support Designed for creative professionals who require outstanding performance, reliability and enhanced security, ASUS Pro WS W680-ACE motherboard is powered by the latest 13th and 12th Gen Intel processors for always-on usage scenarios and supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability. Dual 2.5G Ethernet Boosted connectivity with dual onboard Ethernet ports. Intel 2.5G Ethernet upgrades your traditional LAN connection with an up to 2.5X bandwidth improvement. Using your existing Ethernet cable, you can experience faster file transfers and immediately stream high-resolution videos. ASUS Control Center Express The best business performance requires smart IT management. ASUS Control Center Express is an intuitive and secure software designed to simplify IT operations and improve workload productivity by providing comprehensive control of all the systems in your organization. Plus, ASUS Control Center Express is compatible with over 100 ASUS motherboards to give you more upgrade flexibility and less compatibility issues. Multi-GPU Support Two PCIe 5.0 x16 slots provide flexible system configurability and expandability - including support for NVIDIA® Quadro® - for enhanced performance in modelling, simulation, and rendering applications. Triple M.2 Slots Triple M.2 slots support PCIe 4.0, offering up to 64 Gbps data-transfer speeds and flexible M.2 interfaces. The RAID 0/1/5/10 configuration are available for the data protection and increases fault tolerance to the entire system, higher storage capacity and better SSD performance. Thermal Solution | VRM heatsink A large, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation. PCH heatsink An expanded surface area for the chipset cooler maximizes performance and heat dissipation. M.2 heatsink M.2 slot has a dedicated heatsink keep the M.2 SSD at optimum operating temperature to ensure consistent performance and reliability.
{'Product Name': 'Asus MB Pro WS W680-Ace W680 LGA1700 Max.128GB DDR5 ATX', 'Manufacturer Part Number': 'PRO WS W680-ACE', 'Product Type': 'Workstation Motherboard', 'Chipset Manufacturer': 'Intel', 'Chipset Model': 'W680', 'Number of Memory Slots': '4', 'Gigabit Ethernet': 'Yes', 'Number of SATA Interfaces': '8', 'Number of PCI Express x1 Slots': '1', 'Onboard Video': 'CPU Dependent Video', 'RAID Supported': 'Yes', 'Number of PCI Express x16 Slots': '4', 'HDMI': 'Yes', 'VGA': 'Yes', 'DisplayPort': 'Yes', 'Total Number of USB Ports': '8', 'Total Number of Onboard USB Ports': '7', 'Total Number of PCI Express Slots': '5', 'Thunderbolt': 'Yes', 'Memory Form Factor': 'DIMMUDIMM', 'Total Number of Expansion Slots': '5.0', 'Number of M.2 Interfaces': '3', 'Intel Optane Memory Ready': 'Yes', '2.5Gigabit Ethernet': 'Yes', 'Memory Technology': 'DDR5 SDRAM', 'Processor Socket': 'Socket LGA-1700', 'Form Factor': 'ATX', 'Processor Supported': 'CeleronCore i5Core i7Core i9Pentium GoldCore', 'Total Processor Supported': '1', 'Controller Type': 'Serial ATA/600', 'Maximum Memory Supported': '128 GB', 'Audio Channels': '7.1', 'HDMI Version': '2.1', 'Number of Network (RJ-45) Ports': '2', 'Number of Onboard USB 2.0 Ports': '4', 'PCI Express Standard': 'PCI Express 5.0PCI Express 4.0PCI Express 3.0', 'Number of USB 3.2 Gen 2 Type-C Ports': '1', 'Number of USB 3.2 Gen 1 Type-A Ports': '4', 'Number of USB 3.2 Gen 2 Type-A Ports': '1', 'Number of Thunderbolt 4 Ports': '1', 'Processor Generation Supported': '13th Gen12th Gen', 'Width': '12"', 'Depth': '9.6"', 'Product Model': 'WS W680-ACE', 'Product Line': 'Pro', 'RAID Levels': '01510', 'Brand Compatibility': 'Intel', 'Manufacturer': 'ASUS', 'Manuf Part#': 'PRO WS W680-ACE', 'Price': '$314.15', 'Availability': 'In Stock'}
