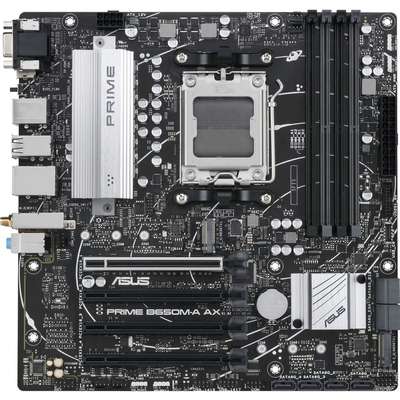

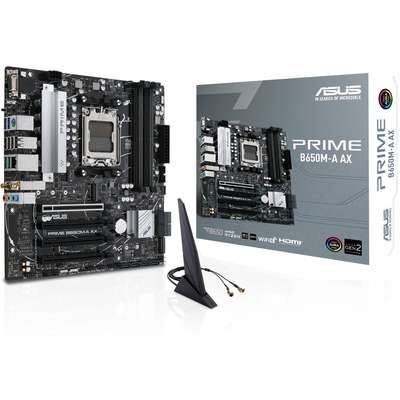

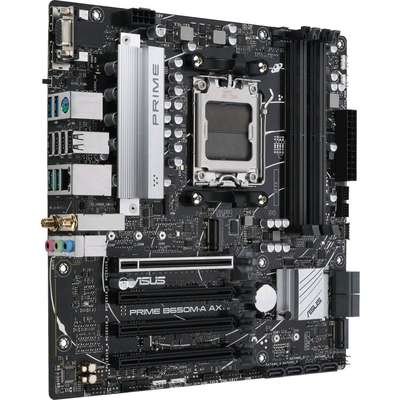

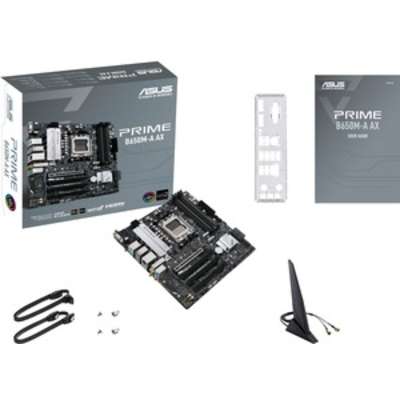

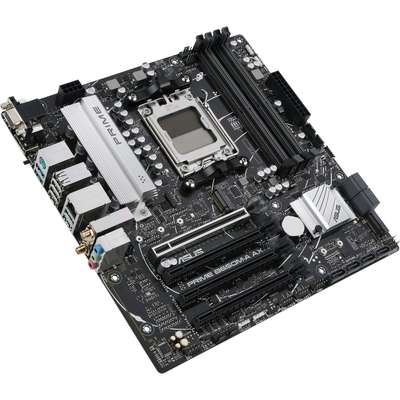

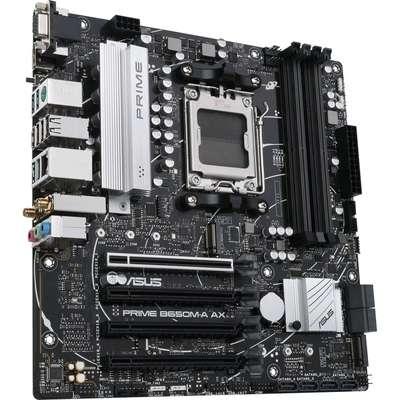

ASUS Prime B650M-A AX AMD B650 Ryzen 7000 ATX Motherboard

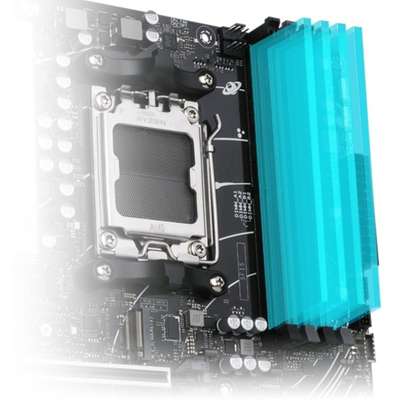

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A AX provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. FLEXIBILITYComprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. CPU Performance BoostAMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher. COOLINGPRIME B650 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. VRM Heatsink and Thermal PadVRM heatsink and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance. Cooler by DesignPrime B650 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS. Multiple Temperature SourcesEach header can dynamically reference four thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

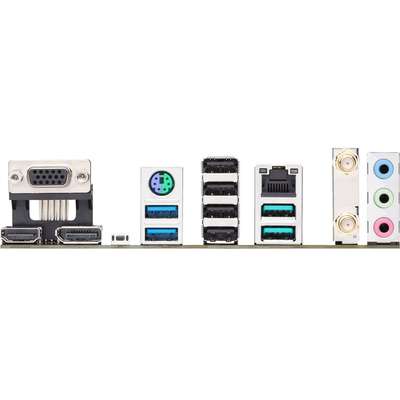

{'Product Name': 'Prime B650M-A AX AMD B650 Ryzen 7000 ATX Motherboard', 'Manufacturer Part Number': 'PRIME B650M-A AX', 'Product Type': 'Desktop Motherboard', 'Chipset Manufacturer': 'AMD', 'Chipset Model': 'B650', 'Number of Memory Slots': '4', 'Bluetooth': 'Yes', 'Gigabit Ethernet': 'Yes', 'Number of SATA Interfaces': '8', 'Wireless LAN Standard': 'IEEE 802.11 a/b/g/n/ac/ax', 'Onboard Video': 'CPU Dependent Video', 'RAID Supported': 'Yes', 'Number of PCI Express x16 Slots': '4', 'HDMI': 'Yes', 'VGA': 'Yes', 'DisplayPort': 'Yes', 'Total Number of USB Ports': '8', 'Total Number of Onboard USB Ports': '7', 'Total Number of PCI Express Slots': '4', 'Memory Form Factor': 'DIMMUDIMM', 'Total Number of Expansion Slots': '4.0', 'Number of M.2 Interfaces': '2', '2.5Gigabit Ethernet': 'Yes', 'Memory Technology': 'DDR5 SDRAM', 'Processor Socket': 'Socket AM5', 'Form Factor': 'Micro ATX', 'Processor Supported': 'Ryzen', 'Total Processor Supported': '1', 'Controller Type': 'Serial ATA/600', 'Maximum Memory Supported': '128 GB', 'Audio Channels': '7.1', 'Wireless LAN': 'Yes', 'Bluetooth Standard': 'Bluetooth 5.2', 'HDMI Version': '2.1', 'Number of Network (RJ-45) Ports': '1', 'Number of Onboard USB 2.0 Ports': '4', 'PCI Express Standard': 'PCI Express 4.0', 'Memory Speed Supported': '6400 MHz6200 MHz6000 MHz5800 MHz5600 MHz5400 MHz5200 MHz5000 MHz4800 MHz', 'Number of USB 3.2 Gen 1 Type-A Ports': '2', 'Number of USB 3.2 Gen 2 Type-A Ports': '2', 'Width': '9.6"', 'Depth': '9.6"', 'Product Model': 'B650M-A AX', 'Product Line': 'Prime', 'RAID Levels': '0101', 'Brand Compatibility': 'AMD', 'Manufacturer': 'ASUS', 'Manuf Part#': 'PRIME B650M-A AX', 'Price': '$186.73', 'Availability': 'Special Order'}
