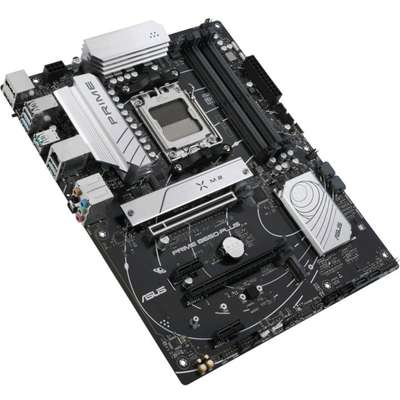

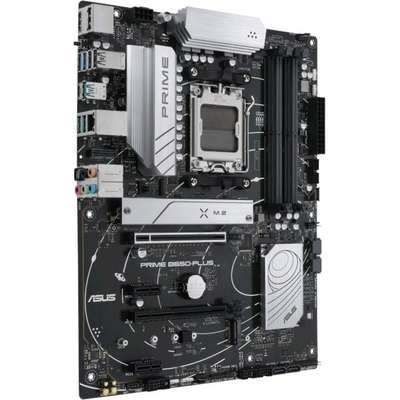

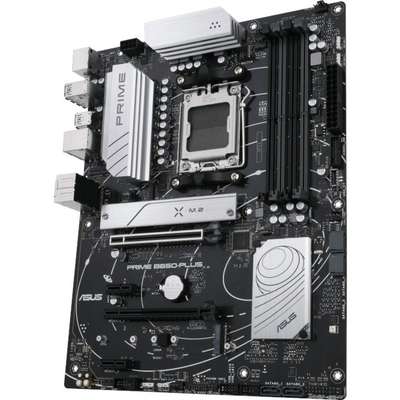

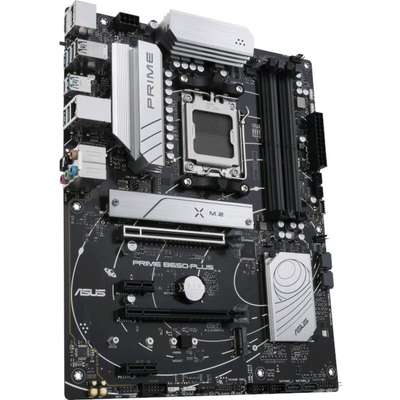

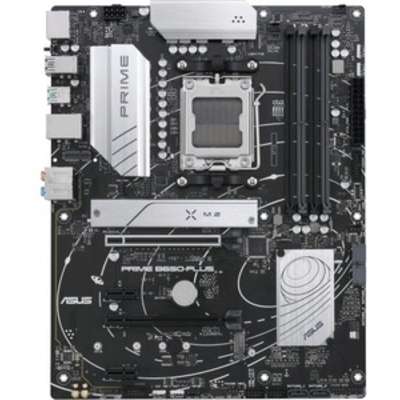

ASUS Prime B650-Plus AMD B650 Ryzen 7000 ATX Motherboard

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. FLEXIBILITYComprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. CPU Performance Boost AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher. COOLING Prime B650 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. M.2 HeatsinkAn M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws. PERFORMANCEThe PRIME B650 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS B650 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options. PCIe 4.0 Slot Prime B650 motherboards offer PCIe 4.0 Slot connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly. Combined onboard features deliver elevated audio Intelligent design and premium hardware create audio quality unlike anything you've ever experienced. Audio Shielding Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference. Dedicated Audio PCB Layers Separate layers for left and right tracks ensures both channels deliver consistent, equal quality. Premium Audio Capacitors Provides warm, natural, and immersive sound with exceptional clarity and fidelity.
{'Product Name': 'Prime B650-Plus AMD B650 Ryzen 7000 ATX Motherboard', 'Manufacturer Part Number': 'PRIME B650-PLUS', 'Product Type': 'Desktop Motherboard', 'Chipset Manufacturer': 'AMD', 'Chipset Model': 'B650', 'Number of Memory Slots': '4', 'Gigabit Ethernet': 'Yes', 'Number of SATA Interfaces': '4', 'Number of PCI Express x1 Slots': '2', 'Onboard Video': 'CPU Dependent Video', 'RAID Supported': 'Yes', 'Number of PCI Express x16 Slots': '2', 'HDMI': 'Yes', 'DisplayPort': 'Yes', 'Total Number of USB Ports': '8', 'Total Number of Onboard USB Ports': '7', 'Total Number of PCI Express Slots': '4', 'Thunderbolt': 'Yes', 'Memory Form Factor': 'UDIMMDIMM', 'Total Number of Expansion Slots': '4.0', 'Number of M.2 Interfaces': '2', 'Number of USB 3.2 Ports': '6', '2.5Gigabit Ethernet': 'Yes', 'Memory Technology': 'DDR5 SDRAM', 'Processor Socket': 'Socket AM5', 'Form Factor': 'ATX', 'Processor Supported': 'Ryzen 7', 'Total Processor Supported': '1', 'Controller Type': 'Serial ATA/600', 'Maximum Memory Supported': '128 GB', 'Audio Channels': '7.1', 'HDMI Version': '2.1', 'Number of Network (RJ-45) Ports': '1', 'Number of USB 2.0 Ports': '2', 'Number of Onboard USB 2.0 Ports': '4', 'PCI Express Standard': 'PCI Express 4.0', 'Memory Speed Supported': '6400 MHz6200 MHz6000 MHz5800 MHz5600 MHz5400 MHz5200 MHz5000 MHz4800 MHz', 'Number of USB 3.2 Gen 2 Type-C Ports': '1', 'Number of USB 3.2 Gen 1 Type-A Ports': '2', 'Number of USB 3.2 Gen 2 Type-A Ports': '3', 'Number of Thunderbolt 4 Ports': '1', 'Width': '12"', 'Depth': '9.6"', 'Product Series': 'B650', 'Product Model': 'B650-PLUS', 'Product Line': 'Prime', 'RAID Levels': '0110', 'S / PDIF': 'Yes', 'Brand Compatibility': 'AMD', 'Manufacturer': 'ASUS', 'Manuf Part#': 'PRIME B650-PLUS', 'Price': '$177.27', 'Availability': 'In Stock'}
