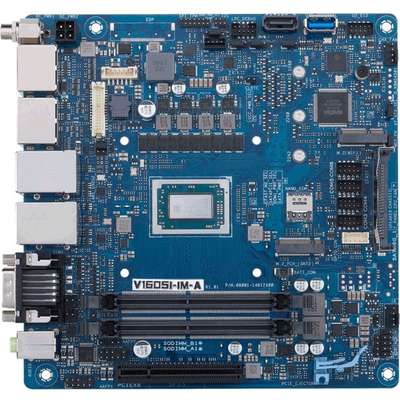

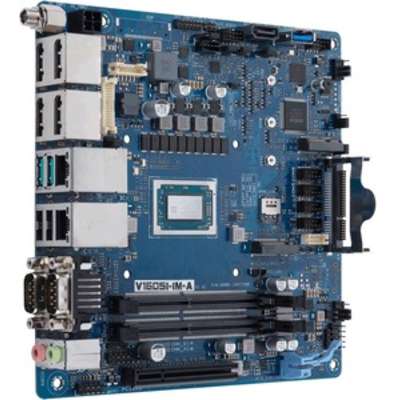

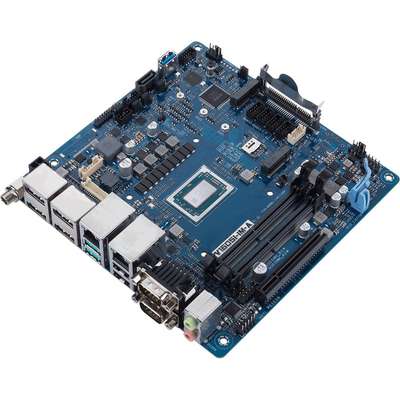

ASUS V1605I-IM-A V1605I-IM-A

AMD Ryzen Embedded V1000-Series V1605 Mini-ITX motherboard, two SO-DIMM slots, four DisplayPort (option upon request), two M.2 slots, two SATA port (option upon request), PCIe x8 Supports AMD Ryzen Embedded V1000-Series V1605 Two SO-DIMM slots support up to 32GB DDR4 2400 MHz SDRAM Lockable DC-in connector supported Supports Four display configurations with multiple interfaces, including 3 DisplayPort and 1 LVDS (factory default), 4 DisplayPort (option upon request), 3 DisplayPort and 1 eDP (option upon request) Advanced I/O and connectivity features: CCtalk & CFAST supported Seven years of longevity with extended product life cycles Wide temperature range endurance: 0~60°C ASUS V1605I-IM-A is a Mini-ITX industrial motherboard featuring rich I/O capabilities, advanced connectivity and flexible customization options in a smaller board that reduces chassis sizes for space-restrictive installations. Offering multiple display outputs, legacy options for industrial applications, GPIO ports, dual Intel LAN as well as rich expandability with a PCIe x8 slot, two M.2 sockets (E and B key) and lockable DC-in connector. ASUS V1605I-IM-A is an ideal choice for a wide range of embedded applications. As the world's No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
{'Product Name': 'V1605I-IM-A V1605I-IM-A', 'Product Type': 'Desktop Motherboard', 'Chipset Manufacturer': 'AMD', 'Number of Memory Slots': '2', 'Gigabit Ethernet': 'Yes', 'Number of SATA Interfaces': '1', 'Onboard Video': 'CPU Dependent Video', 'Number of PCI Express x8 Slots': '1', 'DVI': 'Yes', 'DisplayPort': 'Yes', 'Total Number of USB Ports': '4', 'Total Number of Onboard USB Ports': '3', 'Total Number of PCI Express Slots': '1', 'Integrated Processor Manufacturer': 'AMD', 'Integrated Processor Type': 'Ryzen', 'Integrated Processor Model': 'V1605B', 'Memory Form Factor': 'SoDIMM', 'Total Number of Expansion Slots': '1.0', 'Number of M.2 Interfaces': '1', 'Number of USB 3.2 Ports': '2', 'Number of Onboard USB 3.2 Ports': '1', 'Environmental Compliance': 'Restriction of Hazardous Substances (RoHS)', 'Memory Standard': 'DDR4-2400/PC4-19200', 'Memory Technology': 'DDR4 SDRAM', 'Form Factor': 'Mini ITX', 'Total Processor Supported': '1', 'Controller Type': 'Serial ATA/600', 'Maximum Memory Supported': '64 GB', 'Environmentally Friendly': 'Yes', 'Audio Channels': '7.1', 'Number of Network (RJ-45) Ports': '2', 'Number of USB 2.0 Ports': '2', 'Number of Onboard USB 2.0 Ports': '2', 'Onboard S / PDIF Header': 'Yes', 'Memory Speed Supported': '2400 MHz', 'Country of Origin': 'China', 'Width': '6.7"', 'Depth': '6.7"', 'Product Model': 'V1605I-IM-A', 'Brand Compatibility': 'AMD', 'Manufacturer': 'ASUS', 'Manuf Part#': 'V1605I-IM-A', 'Price': '$486.73', 'Availability': 'Special Order'}
