ASUS H310I-IM-B H310I-IM-B

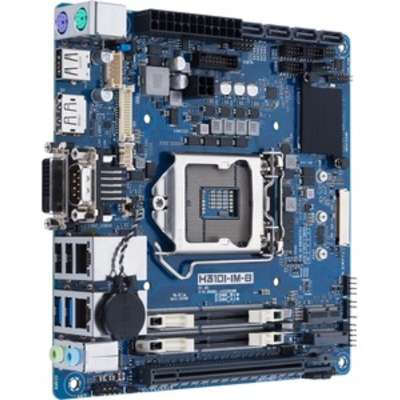

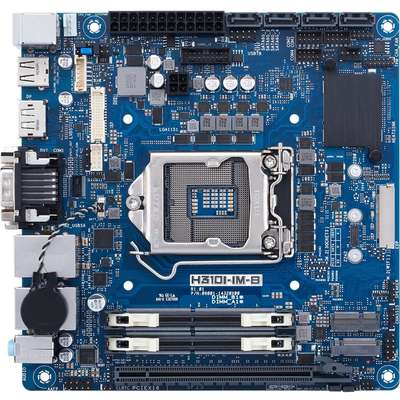

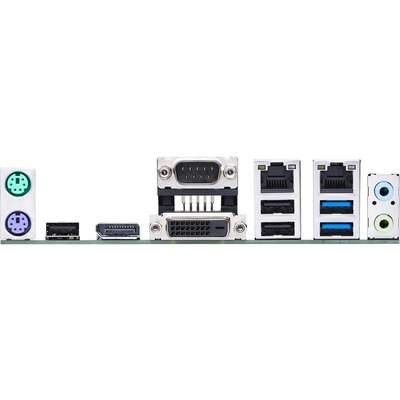

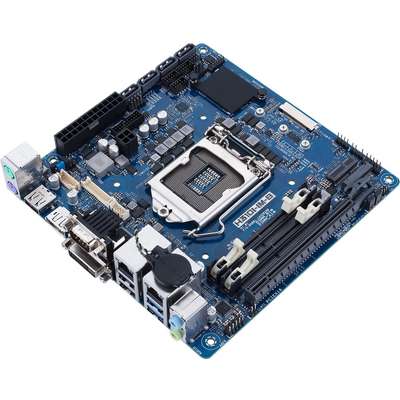

8th/9th Gen Intel® Core™ i7/i5/i3 LGA 1151 Mini-ITX motherboard with H310 chipset, two SO-DIMM slots, DisplayPort, DVI-D, LVDS, eDP, two M.2 slots, PCIe x16 Supports Intel® 8th/9th Gen Core™ processors (LGA1151) with the Intel H310 chipset Two 260-pin SO-DIMM slots support up to 64GB DDR4 2666/2400/2133 MHz SDRAM Supports dual display configurations with multiple interfaces, including DisplayPort, DVI-D, LVDS, eDP Advanced I/O and connectivity features Seven years of longevity with extended product life cycles Wide temperature range endurance: 0-60°C ASUS H310I-IM-B is a Mini-ITX industrial motherboard featuring rich I/O capabilities, advanced connectivity and flexible customization options in a smaller board that reduces chassis sizes for space-restrictive installations. Offering multiple display outputs, legacy options for industrial applications, GPIO ports, dual Intel LAN as well as rich expandability with a PCIe x16 slot, two M.2 sockets (E and M key), ASUS H310I-IM-B is an ideal choice for a wide range of embedded applications. As the world's No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
{'Product Name': 'H310I-IM-B H310I-IM-B', 'Product Type': 'Desktop Motherboard', 'Chipset Manufacturer': 'Intel', 'Chipset Model': 'H310', 'Number of Memory Slots': '2', 'Gigabit Ethernet': 'Yes', 'Number of SATA Interfaces': '4', 'Onboard Video': 'CPU Dependent Video', 'Number of PCI Express x16 Slots': '1', 'DVI': 'Yes', 'DisplayPort': 'Yes', 'Total Number of USB Ports': '5', 'Total Number of Onboard USB Ports': '4', 'Total Number of PCI Express Slots': '1', 'Memory Form Factor': 'SoDIMM', 'Total Number of Expansion Slots': '1.0', 'Number of M.2 Interfaces': '2', 'Number of USB 3.2 Ports': '2', 'Number of Onboard USB 3.2 Ports': '2', 'Environmental Compliance': 'Restriction of Hazardous Substances (RoHS)', 'Memory Technology': 'DDR4 SDRAM', 'Processor Socket': 'Socket H4 LGA-1151', 'Form Factor': 'Mini ITX', 'Processor Supported': 'Core i3Core i5Core i7CeleronPentium Gold', 'Total Processor Supported': '1', 'Controller Type': 'Serial ATA/600', 'Maximum Memory Supported': '64 GB', 'Environmentally Friendly': 'Yes', 'Audio Channels': '7.1', 'Number of Network (RJ-45) Ports': '2', 'Number of USB 2.0 Ports': '3', 'Number of Onboard USB 2.0 Ports': '2', 'Memory Speed Supported': '2666 MHz2400 MHz2133 MHz', 'Country of Origin': 'China', 'Width': '6.7"', 'Depth': '6.7"', 'Product Model': 'H310I-IM-B', 'Limited Warranty': '2 Year', 'Brand Compatibility': 'Intel', 'Manufacturer': 'ASUS', 'Manuf Part#': 'H310I-IM-B', 'Price': '$161.07', 'Availability': 'Special Order'}
