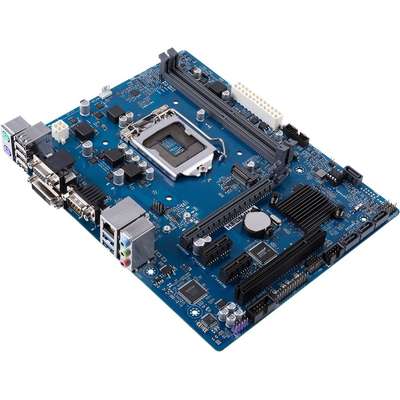

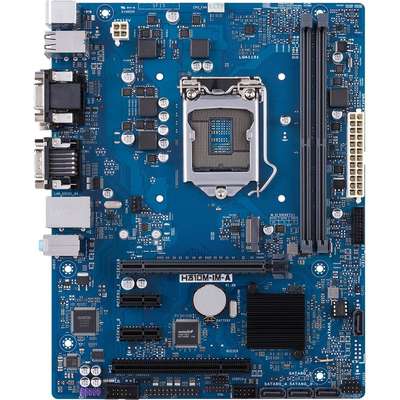

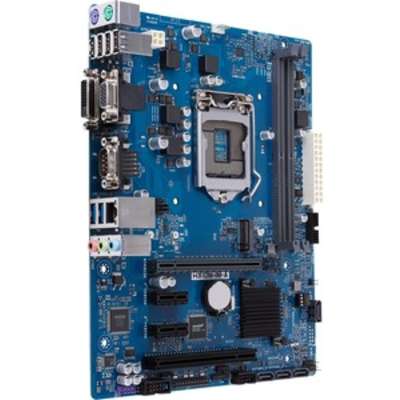

ASUS H310M-IM-A H310M-IM-A

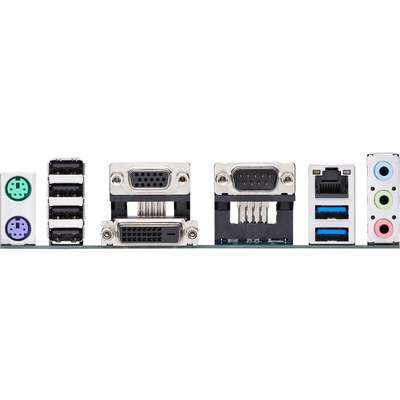

8th/9th Generation Intel® CoreTM i7/i5/i3 LGA 1151 Micro-ATX motherboard with H310 chipset, two U-DIMM slots, DVI-D & D-sub, M.2 slot, PCIe x16 and four SATA ports Supports Intel®9th/8th Gen Core™ processors (LGA1151) with the Intel H310 chipset Two U-DIMM slots support up to 32GB DDR4 2400/2133 MHz SDRAM Supports dual display configurations with multiple interfaces, including DVI-D & D-sub Advanced I/O and connectivity features Seven years of longevity with extended product life cycles Wide temperature range endurance: 0-60°C ASUS H310M-IM-A is a Micro-ATX industrial motherboard featuring rich I/O capabilities, advanced connectivity and flexible customization options in a smaller board that reduces chassis sizes for space-restrictive installations. Offering multiple display outputs, COM ports, four SATA ports and two M.2 sockets as well as rich expandability with a PCIe x16 slot. ASUS H310M-IM-A is an ideal choice for a wide range of embedded applications. As the world's No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
{'Product Name': 'H310M-IM-A H310M-IM-A', 'Product Type': 'Desktop Motherboard', 'Chipset Manufacturer': 'Intel', 'Chipset Model': 'H310', 'Number of Memory Slots': '2', 'Gigabit Ethernet': 'Yes', 'Number of SATA Interfaces': '4', 'Number of PCI Express x1 Slots': '2', 'Onboard Video': 'CPU Dependent Video', 'Number of PCI Express x16 Slots': '1', 'DVI': 'Yes', 'VGA': 'Yes', 'Total Number of USB Ports': '6', 'Total Number of Onboard USB Ports': '4', 'Total Number of PCI Express Slots': '3', 'Memory Form Factor': 'DIMMUDIMM', 'Total Number of Expansion Slots': '4.0', 'Number of M.2 Interfaces': '1', 'Number of USB 3.2 Ports': '2', 'Number of Onboard USB 3.2 Ports': '2', 'Environmental Compliance': 'Restriction of Hazardous Substances (RoHS)', 'Memory Technology': 'DDR4 SDRAM', 'Processor Socket': 'Socket H4 LGA-1151', 'Form Factor': 'Micro ATX', 'Processor Supported': 'Core i3Core i5Core i7CeleronPentium Gold', 'Total Processor Supported': '1', 'Controller Type': 'Serial ATA/600', 'Maximum Memory Supported': '32 GB', 'Environmentally Friendly': 'Yes', 'Audio Channels': '7.1', 'Number of Network (RJ-45) Ports': '1', 'Number of USB 2.0 Ports': '4', 'Number of Onboard USB 2.0 Ports': '2', 'Memory Speed Supported': '2666 MHz2400 MHz2133 MHz', 'Country of Origin': 'China', 'Width': '9.6"', 'Depth': '7.6"', 'Product Model': 'H310M-IM-A', 'Limited Warranty': '2 Year', 'Brand Compatibility': 'Intel', 'Manufacturer': 'ASUS', 'Manuf Part#': 'H310M-IM-A', 'Price': '$129.83', 'Availability': 'Special Order'}
