Asus Prime B550-Plus AMD AM4 3rd Gen Ryzen ATX MB PCIE 4.0 1GB

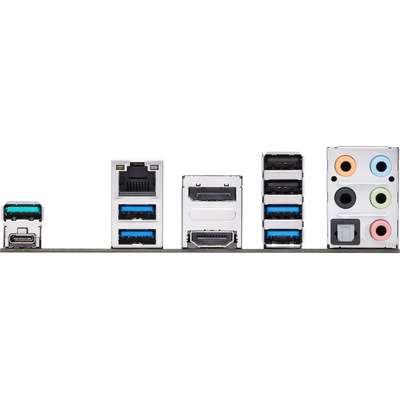

AMD B550 (Ryzen AM4) ATX motherboard with dual M.2, PCIe 4.0, 1 Gb Ethernet, DisplayPort/HDMI, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB headers support AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ Processors Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A and Type-C Comprehensive cooling: VRM heatsinks, PCH heatsink, and Fan Xpert 4 Aura Sync RGB: Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware PRIME ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. Tune It Your Way Comprehensive controls form the foundation of the ASUS Prime series. The Prime B550 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work - maximizing your productivity. Cool to the Core Prime B550 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. VRM Heatsink and Thermal Pads Two massive VRM heatsinks with underneath thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance. Build on a Solid Foundation Prime B550 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. PCIe 4.0 M.2 (up to 64 Gbps)Achieve Speed With Onboard M.2 PCIe 4.0 M.2 Slot supports up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to 64Gbps PCIe 4.0 storage device to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform. Little Things Make a Big Difference Prime B550 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look. Outstanding Audio Combined onboard features deliver elevated audio Intelligent design and premium hardware create audio quality unlike anything you've ever experienced. Audio Shielding Separates analog/digital signal domains, significantly reducing multi-lateral interference. Separate Layer for Left and Right Tracks Ensures minimal crosstalk between audio paths. Premium Japanese Capacitors Premium parts provide an immersive sound signature, with exceptional fidelity.
{'Product Name': 'Asus Prime B550-Plus AMD AM4 3rd Gen Ryzen ATX MB PCIE 4.0 1GB', 'Manufacturer Part Number': 'PRIME B550-PLUS', 'Product Type': 'Desktop Motherboard', 'Chipset Manufacturer': 'AMD', 'Chipset Model': 'B550', 'Number of Memory Slots': '4', 'Gigabit Ethernet': 'Yes', 'Number of SATA Interfaces': '6', 'Number of PCI Express x1 Slots': '3', 'Onboard Video': 'CPU Dependent Video', 'RAID Supported': 'Yes', 'Number of PCI Express x16 Slots': '2', 'HDMI': 'Yes', 'DisplayPort': 'Yes', 'Total Number of USB Ports': '8', 'Total Number of Onboard USB Ports': '6', 'Total Number of PCI Express Slots': '5', 'Memory Form Factor': 'DIMMUDIMM', 'Total Number of Expansion Slots': '5.0', 'Number of M.2 Interfaces': '2', 'Number of USB 3.2 Ports': '6', 'Number of Onboard USB 3.2 Ports': '2', 'Environmental Compliance': 'Restriction of Hazardous Substances (RoHS)', 'Memory Technology': 'DDR4 SDRAM', 'Processor Socket': 'Socket AM4', 'Form Factor': 'ATX', 'Processor Supported': 'Ryzen 3Ryzen 5Ryzen 7Ryzen 9Ryzen 5 ProRyzen 7 PRORyzen 9 PRO', 'Total Processor Supported': '1', 'Controller Type': 'Serial ATA/600', 'Maximum Memory Supported': '128 GB', 'Environmentally Friendly': 'Yes', 'Audio Channels': '7.1', 'Number of Network (RJ-45) Ports': '1', 'Number of USB 2.0 Ports': '2', 'Number of Onboard USB 2.0 Ports': '4', 'Onboard S / PDIF Header': 'Yes', 'Memory Speed Supported': '2133 MHz2400 MHz2667 MHz2800 MHz3000 MHz3200 MHz3333 MHz3466 MHz3866 MHz3600 MHz3733 MHz4000 MHz4133 MHz4466 MHz4600 MHz4400 MHz4800 MHz4266 MHz', 'Country of Origin': 'China', 'Width': '12"', 'Depth': '9.6"', 'Product Model': 'B550-PLUS', 'Product Line': 'Prime', 'RAID Levels': '0101', 'S / PDIF': 'Yes', 'Limited Warranty': '3 Year', 'Brand Compatibility': 'AMD', 'Manufacturer': 'ASUS', 'Manuf Part#': 'PRIME B550-PLUS', 'Price': '$120.51', 'Availability': 'Special Order'}
