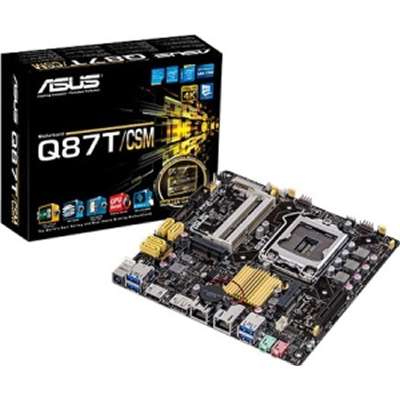

ASUS Q87T/CSM Q87 LGA1150 Socket 22NM CPU

Intel® LGA1150 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/ Celeron® Processors ReadyThis motherboard supports Intel® 4th generation Core™ i7/i5/i3/ Pentium®/ Celeron® processors in the LGA1150 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. Intel® 4th generation Core™ i7/i5/i3/ Pentium®/ Celeron® processors are among the most powerful and energy efficient CPUs in the world.
{'Product Name': 'Q87T/CSM Q87 LGA1150 Socket 22NM CPU', 'Product Type': 'Desktop Motherboard', 'Chipset Manufacturer': 'Intel', 'Chipset Model': 'Q87 Express', 'Number of Memory Slots': '2', 'Graphics Controller Manufacturer': 'Intel', 'Gigabit Ethernet': 'Yes', 'Number of SATA Interfaces': '4', 'Number of PCI Express x1 Slots': '1', 'Onboard Video': 'On-board Video Chipset', 'RAID Supported': 'Yes', 'HDMI': 'Yes', 'DisplayPort': 'Yes', 'Total Number of USB Ports': '4', 'Number of USB 3.0 Ports': '4', 'Total Number of Onboard USB Ports': '7', 'Number of Onboard USB 3.0 Ports': '2', 'Total Number of PCI Express Slots': '1', 'Memory Form Factor': 'SoDIMM', 'Number of mSATA Interfaces': '1', 'Total Number of Expansion Slots': '3.0', 'Memory Standard': 'DDR3-1600/PC3-12800DDR3-1333/PC3-10600DDR3-1066/PC3-8500', 'Memory Technology': 'DDR3 SDRAM', 'Processor Socket': 'Socket H3 LGA-1150', 'Form Factor': 'Mini ITX', 'Processor Supported': 'Core i7Core i5Core i3PentiumCeleron', 'Total Processor Supported': '1', 'Controller Type': 'Serial ATA/600mSATA', 'Maximum Memory Supported': '16 GB', 'Environmentally Friendly': 'Yes', 'Audio Channels': '7.1', 'Number of Network (RJ-45) Ports': '2', 'Number of Onboard USB 2.0 Ports': '5', 'PCI Express Standard': 'PCI Express 3.0PCI Express 2.0', 'Memory Speed Supported': '1600 MHz1333 MHz1066 MHz', 'Width': '6.7"', 'Depth': '6.7"', 'Product Model': 'Q87T/CSM', 'RAID Levels': '0151+0', '64-bit Processing': 'Yes', 'Sound Controller Manufacturer': 'Realtek', 'Sound Controller Model': 'ALC887-VD', 'Graphics Memory Technology': 'DDR3 SDRAM', 'Graphics Memory Accessibility': 'Shared', 'Number of Mini PCI Express Slots': '2', 'Network (RJ-45)': 'Yes', 'Audio Line In': 'Yes', 'Audio Line Out': 'Yes', 'Number of DisplayPort Outputs': '1', 'Number of HDMI Outputs': '1', 'Microphone Port': 'Yes', 'Onboard Audio Header': 'Yes', 'Certifications & Standards': 'ACPI 2.0a', 'Power Supply Supported': 'ATX12V', 'Manufacturer': 'ASUS', 'Manuf Part#': 'Q87T/CSM', 'Price': '$97.29', 'Availability': 'Special Order'}
