ASRock Inc Asrock MB WRX90 WS Evo AMD WRX90 Socket STR5 MAX2TB DDR5 Eeb

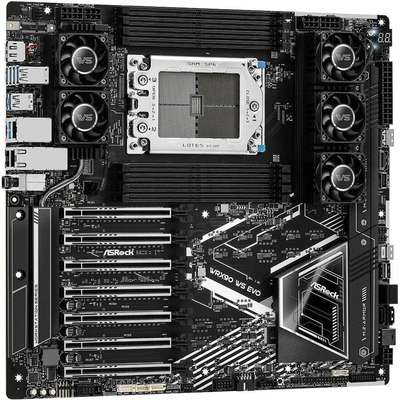

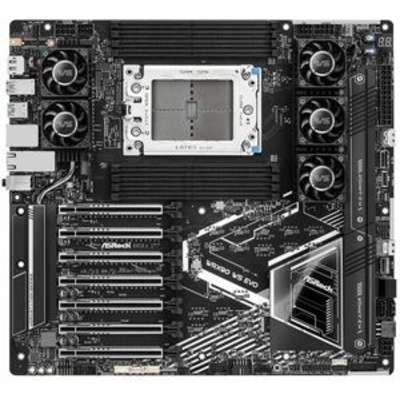

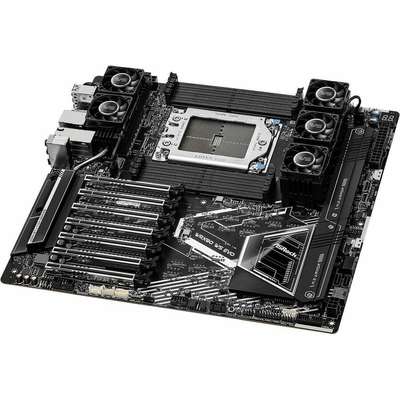

? WRX90 WS EVODependable and Versatile Workstations Motherboard.Designed to deliver powerful performance, manageability and reliability for high speed computing workstations.PREMIUM PCB SOLUTION | Server Grade Ultra Low Loss PCBThe server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.2oz Copper PCB2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.14 Layer PCBThe 14 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.Composite VRM HeatsinkIt is equipped with a composite VRM heatsink active cooling fans, XXL aluminum heatsinks and heat pipe for maximum heat dissipation.7 x PCIe Gen5 x16With AMD Ryzen™ Threadripper™ PRO processors, ASRock WRX90 WS EVO supports 7 PCIe gen5 x16 slots, deliver all the performance of PCIe 5.0 to your GPU and add-on cards. Fullfill all the professional design, deep learning, simulation and rendering applications.DDR5 ECC Memory SupportSupports 8 DIMMs DDR5 RDIMM ECC Memory overclocking with max capacity of 2TB. It can automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability with multiple memory modules.Multi PSU Adaptor CableUsers can easily add a secondary power supply via Multi PSU Adaptor Cable and ATX_Con header, allowing users to build a high performance with wider combinations of high wattage power supply.PCIe Gen5 Blazing M.2The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.Server Grade Storage ConnectionsEquipped with SlimSAS(SFF-8654) and the latest MCIO server grade connections for fast and stable storage expansions.USB4 Type-CUSB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects USB devices with a single USB4 cable.Fast Charging TechnologyEnjoy the superfast charging rate, up to 9V@3A 27W with the next generation PD 3.0!Intel®X710-AT2 Dual 10GbE LAN equipped with the latest Intel®X710-AT2 10GbE controller. The new 10Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. It offers blazingly fast 10-gigabit/sec transfer speed over Cat6 cable. The 10Gb/s Ethernet not only fully compatible with 5Gb/s, 2.5Gb/s & Gigabit Lan but also delivers lightning fast transfer speed, perfect for media center, workstation and gaming PC.POLYCHROME RGBThis motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across thePolychrome RGB Sync- certifiedaccessories to create their own unique lighting effects
{'Product Name': 'Asrock MB WRX90 WS Evo AMD WRX90 Socket STR5 MAX2TB DDR5 Eeb', 'Product Type': 'Gaming Desktop Motherboard', 'Chipset Manufacturer': 'AMD', 'Chipset Model': 'WRX90', 'Number of Memory Slots': '8', 'Gigabit Ethernet': 'Yes', 'Onboard Video': 'CPU Dependent Video', 'RAID Supported': 'Yes', 'Number of PCI Express x16 Slots': '7', 'VGA': 'Yes', 'DisplayPort': 'Yes', 'Total Number of USB Ports': '8', 'Total Number of Onboard USB Ports': '7', 'Total Number of PCI Express Slots': '7', 'Memory Form Factor': 'DIMMRDIMM', '10Gigabit Ethernet': 'Yes', 'Number of M.2 Interfaces': '2', 'Energy Efficiency Compliance': 'Energy-related Products Directive Ready (ErP Ready)Energy-using Products Directive Ready (EuP Ready)', 'Memory Technology': 'DDR5 SDRAM', 'Processor Socket': 'Socket sTR5', 'Form Factor': 'SSI EEB', 'Processor Supported': 'Ryzen Threadripper', 'Total Processor Supported': '1', 'Controller Type': 'Serial ATA/600', 'Maximum Memory Supported': '2 TB', 'Audio Channels': '7.1', 'Number of Network (RJ-45) Ports': '2', 'Number of Onboard USB 2.0 Ports': '4', 'PCI Express Standard': 'PCI Express 5.0', 'Memory Speed Supported': '7600 MHz', 'Number of USB 3.2 Gen 1 Type-A Ports': '2', 'Number of USB 3.2 Gen 2 Type-A Ports': '4', 'Width': '12"', 'Depth': '13"', 'Product Model': 'WRX90 WS EVO', 'RAID Levels': '0110', 'Brand Compatibility': 'AMD', 'Manufacturer': 'ASRock Inc', 'Manuf Part#': 'WRX90 WS EVO', 'Price': '$1037.68', 'Availability': 'In Stock'}
