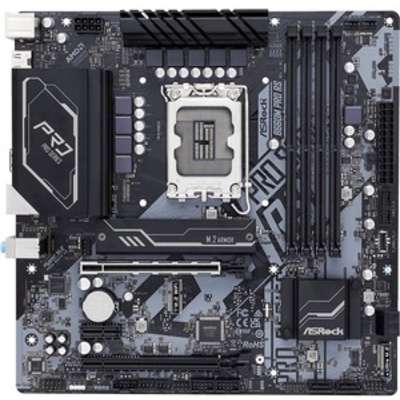

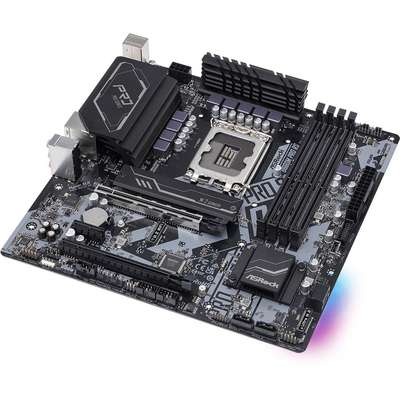

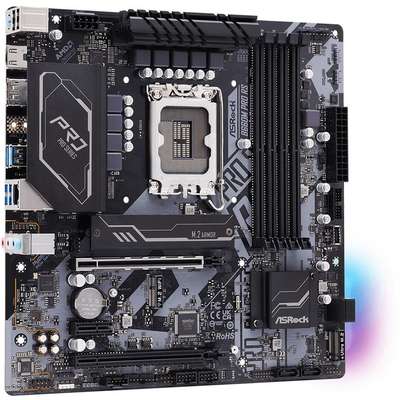

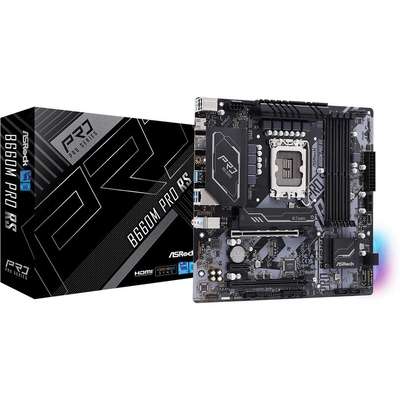

ASRock Inc Asrock MB B660M Pro RS B660 LGA1700 MAX128GB DDR4 PCIE Micro

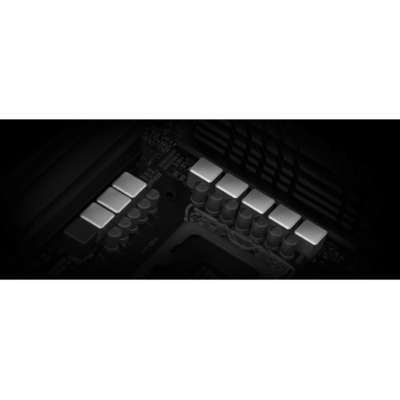

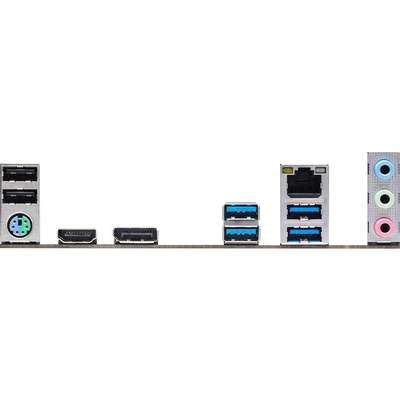

Supports 12th Gen Intel® Core™ Processors (LGA1700) 8 Phase Power Design Supports DDR4 4800MHz (OC) 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x11 M.2 Key-E for WiFi Graphics Output Options: HDMI, DisplayPort Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA31 Hyper M.2 (PCIe Gen4 x4)1 Ultra M.2 (PCIe Gen3 x4 & SATA3) 7 USB 3.2 Gen1 (4 Rear, 2 Front, 1 Front Type-C)6 USB 2.0 (2 Rear, 4 Front) Intel® Gigabit LAN Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming - with style and speed! 8 Power Phase Design Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. Reinforced Steel Slot [PCIe 4.0 Version] The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:? Extra anchor points? Stronger latch? Ensure signal stability? Make sure heavy graphics cards to be well-installed. Nahimic Audio Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. POLYCHROME RGB In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. High Speed M.2 Solution This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. Intel® Gigabit LAN Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
{'Product Name': 'Asrock MB B660M Pro RS B660 LGA1700 MAX128GB DDR4 PCIE Micro', 'Product Type': 'Desktop Motherboard', 'Chipset Manufacturer': 'Intel', 'Chipset Model': 'B660', 'Number of Memory Slots': '4', 'Gigabit Ethernet': 'Yes', 'Number of SATA Interfaces': '4', 'Number of PCI Express x1 Slots': '2', 'Onboard Video': 'CPU Dependent Video', 'RAID Supported': 'Yes', 'Number of PCI Express x16 Slots': '1', 'HDMI': 'Yes', 'DisplayPort': 'Yes', 'Total Number of USB Ports': '6', 'Total Number of Onboard USB Ports': '6', 'Total Number of PCI Express Slots': '3', 'Memory Form Factor': 'DIMMUDIMM', 'Total Number of Expansion Slots': '3.0', 'Number of M.2 Interfaces': '2', 'Intel Optane Memory Ready': 'Yes', 'Product Color': 'Sapphire Black', 'Number of Onboard USB 3.2 Ports': '2', 'Color Family': 'Black', 'Energy Efficiency Compliance': 'Energy-related Products Directive Ready (ErP Ready)', 'Environmental Compliance': 'Restriction of Hazardous Substances (RoHS)Waste Electrical and Electronic Equipment Directive (WEEE)China Restriction of Hazardous Substances (China RoHS)', 'Memory Technology': 'DDR4 SDRAM', 'Processor Socket': 'Socket LGA-1700', 'Form Factor': 'Micro ATX', 'Processor Supported': 'Pentium GoldCeleronCore i5Core i7Core i9Core i3', 'Total Processor Supported': '1', 'Controller Type': 'Serial ATA/600', 'Maximum Memory Supported': '128 GB', 'Environmentally Friendly': 'Yes', 'Audio Channels': '7.1', 'Number of Network (RJ-45) Ports': '1', 'Number of USB 2.0 Ports': '2', 'Number of Onboard USB 2.0 Ports': '4', 'Memory Speed Supported': '4800 MHz3200 MHz', 'Number of USB 3.2 Gen 1 Ports': '4', 'Processor Generation Supported': '12th Gen', 'Width': '9.6"', 'Depth': '9.6"', 'Product Model': 'B660M Pro RS', 'RAID Levels': '01510', 'Brand Compatibility': 'Intel', 'Manufacturer': 'ASRock Inc', 'Manuf Part#': 'B660M PRO RS', 'Price': '$90.65', 'Availability': 'In Stock'}
