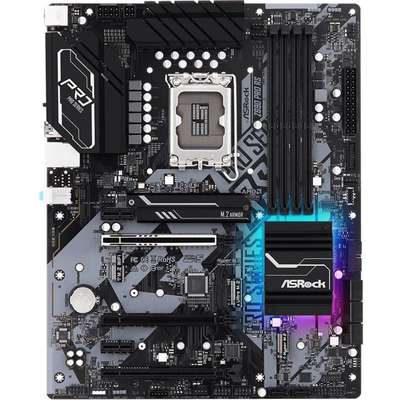

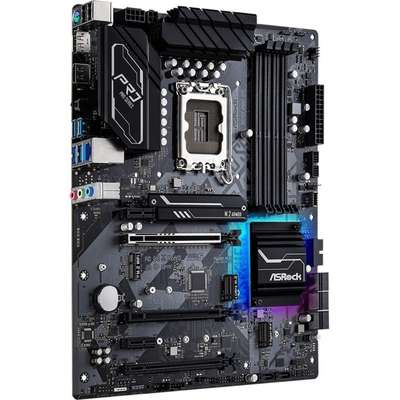

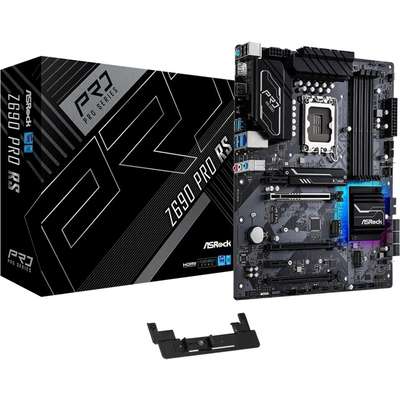

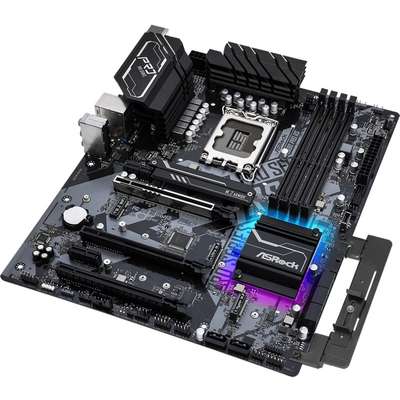

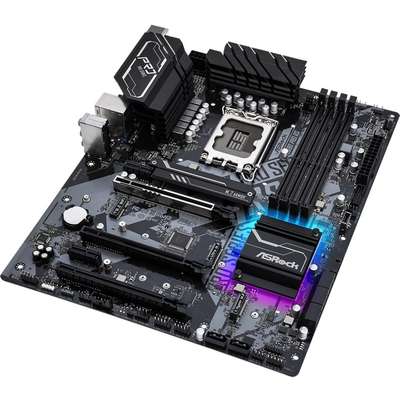

ASRock Inc Asrock MB Z690 Pro RS Z690 S1700 4 Dimms DDR4 ATX

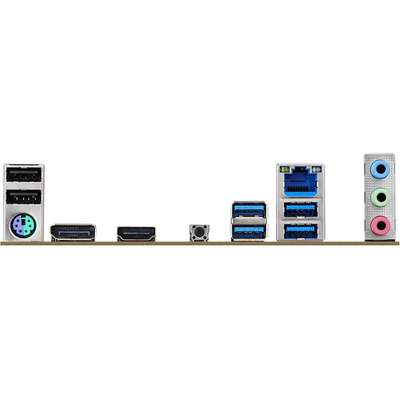

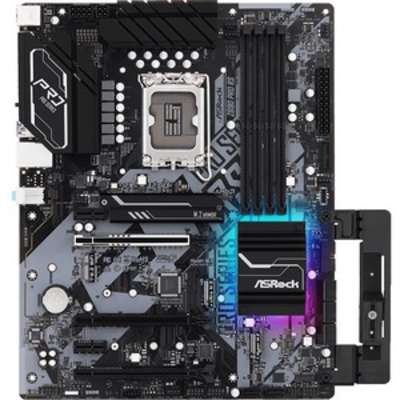

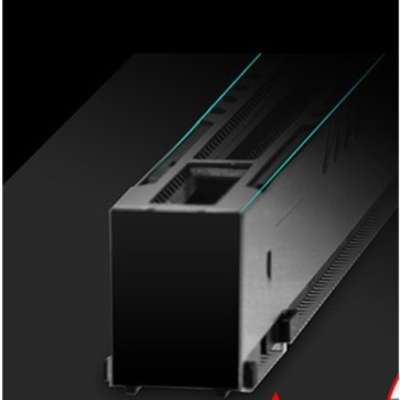

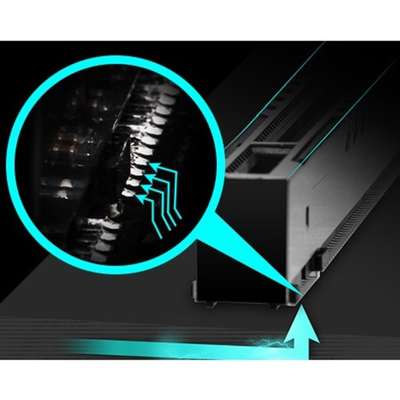

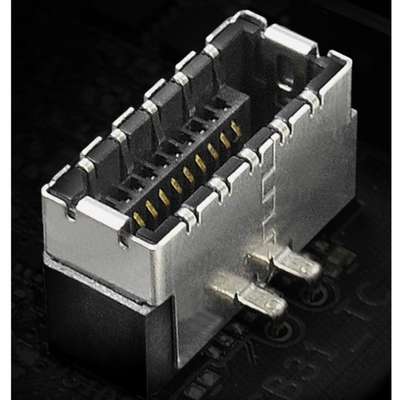

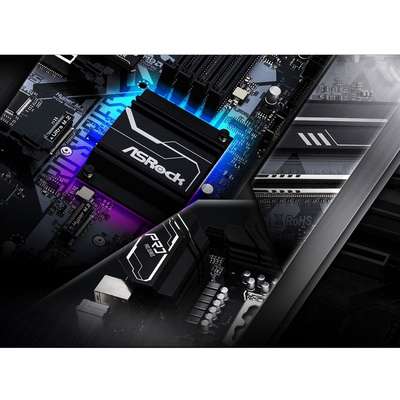

Supports 12th Gen Intel® Core™ Processors (LGA1700) 13 Phase Dr.MOS Power Design Supports DDR4 5000MHz (OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x11 M.2 Key-E for WiFi Graphics Output Options: HDMI, DisplayPort Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 8 SATA3 2 Hyper M.2 (PCIe Gen4 x4)1 Ultra M.2 (PCIe Gen3 x4 & SATA3) 1 USB 3.2 Gen2x2 Front Type-C2 USB 3.2 Gen2 (Rear)6 USB 3.2 Gen1 (2 Rear, 4 Front) Dragon 2.5G LAN ASRock Graphics Card Holder Optimized VRM Design Dr. MOS Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. PCIe 5.0 + Surface-Mount Tech Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards. Nahimic Audio Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. ASRock Graphics Card Holder Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place. POLYCHROME RGB In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. High Speed M.2 Solution This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. Dragon 2.5 Gb/s LAN The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. Front USB 3.2 Gen2x2 Type-C The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. BIOS Flashback Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required. M.2 (KEY E) For WiFi Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
{'Product Name': 'Asrock MB Z690 Pro RS Z690 S1700 4 Dimms DDR4 ATX', 'Product Type': 'Desktop Motherboard', 'Chipset Manufacturer': 'Intel', 'Chipset Model': 'Z690', 'Number of Memory Slots': '4', 'Multi GPU Supported': 'CrossFireX', 'Number of SATA Interfaces': '8', 'Number of PCI Express x1 Slots': '2', 'Onboard Video': 'CPU Dependent Video', 'RAID Supported': 'Yes', 'Number of PCI Express x16 Slots': '3', 'HDMI': 'Yes', 'DisplayPort': 'Yes', 'Total Number of USB Ports': '6', 'Total Number of Onboard USB Ports': '9', 'Total Number of PCI Express Slots': '5', 'Memory Form Factor': 'DIMMUDIMM', 'Total Number of Expansion Slots': '5.0', 'Number of M.2 Interfaces': '3', 'Intel Optane Memory Ready': 'Yes', 'Number of USB 3.2 Ports': '2', 'Number of Onboard USB 3.2 Ports': '5', '2.5Gigabit Ethernet': 'Yes', 'Energy Efficiency Compliance': 'Energy-related Products Directive Ready (ErP Ready)', 'Environmental Compliance': 'Waste Electrical and Electronic Equipment Directive (WEEE)Restriction of Hazardous Substances (RoHS)China Restriction of Hazardous Substances (China RoHS)', 'Memory Technology': 'DDR4 SDRAM', 'Processor Socket': 'Socket LGA-1700', 'Form Factor': 'ATX', 'Processor Supported': 'Core i5Core i7Core i9', 'Total Processor Supported': '1', 'Controller Type': 'Serial ATA/600', 'Maximum Memory Supported': '128 GB', 'Environmentally Friendly': 'Yes', 'Audio Channels': '7.1', 'Number of Network (RJ-45) Ports': '1', 'Number of USB 2.0 Ports': '2', 'Number of Onboard USB 2.0 Ports': '4', 'Memory Speed Supported': '5000 MHz3200 MHz', 'Number of USB 3.2 Gen 1 Ports': '2', 'Processor Generation Supported': '12th Gen', 'Width': '12"', 'Depth': '9.6"', 'Product Series': 'PRO', 'Product Model': 'Z690 PRO RS', 'RAID Levels': '01510', 'Brand Compatibility': 'Intel', 'Manufacturer': 'ASRock Inc', 'Manuf Part#': 'Z690 PRO RS', 'Price': '$136.11', 'Availability': 'In Stock'}
