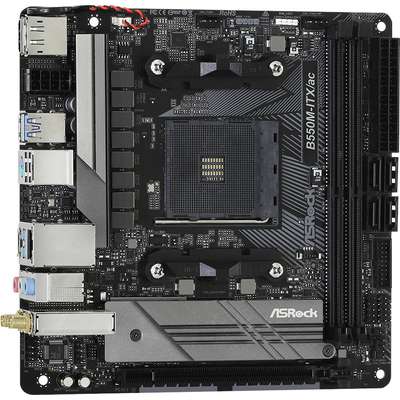

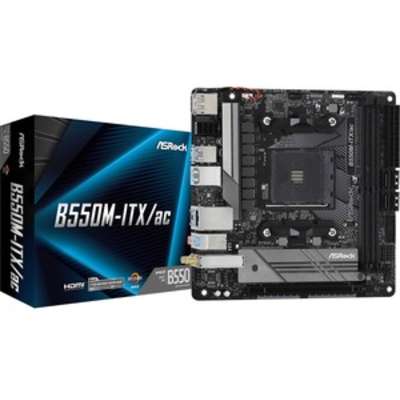

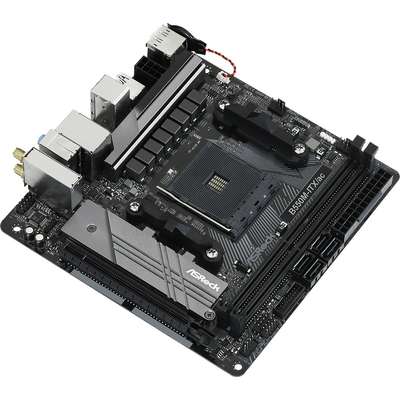

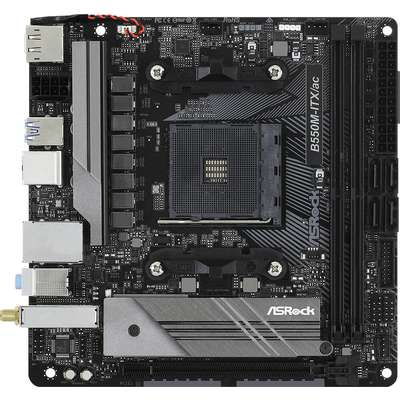

ASRock Inc Asrock MB B550M-ITX AC AMD AM4 Ryzen B550 MAX64GB DDR4 Mini-ITX

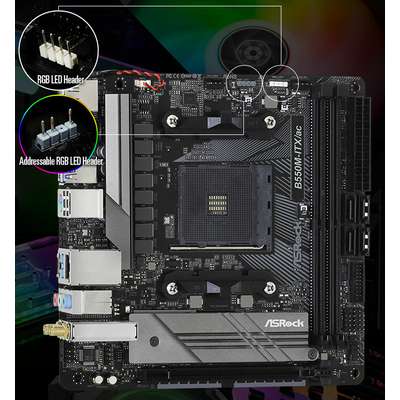

8 Power Phase Design Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Premium 60A Power Choke Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. *The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters. Dual Band 802.11ac WiFi No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2. Hyper M.2 (PCIe Gen4 x4) Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. M.2 ArmorsGood M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature. Dual USB 3.2 Gen1 (Type-A + Type-C) This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen1 ports built on the rear i/o for supporting next generation USB 3.2 Gen1 devices and to deliver up to 5 Gbps data transfer rates. Dual Graphics Outputs Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now. HDMI 4k @60Hz Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. AMD StoreMI Technology A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology "combines" these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds. Premium 60A Power Choke Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Dr. MOS Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance. Sapphire Black PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
{'Product Name': 'Asrock MB B550M-ITX AC AMD AM4 Ryzen B550 MAX64GB DDR4 Mini-ITX', 'Product Type': 'Desktop Motherboard', 'Chipset Manufacturer': 'AMD', 'Chipset Model': 'B550', 'Number of Memory Slots': '2', 'Bluetooth': 'Yes', 'Gigabit Ethernet': 'Yes', 'Number of SATA Interfaces': '4', 'Wireless LAN Standard': 'IEEE 802.11a/b/g/n/ac', 'Onboard Video': 'CPU Dependent Video', 'RAID Supported': 'Yes', 'Number of PCI Express x16 Slots': '1', 'HDMI': 'Yes', 'DisplayPort': 'Yes', 'Total Number of USB Ports': '6', 'Total Number of Onboard USB Ports': '4', 'Total Number of PCI Express Slots': '1', 'Memory Form Factor': 'DIMMUDIMM', 'Total Number of Expansion Slots': '1.0', 'Number of M.2 Interfaces': '2', 'Number of USB 3.2 Ports': '4', 'Number of Onboard USB 3.2 Ports': '2', 'Memory Technology': 'DDR4 SDRAM', 'Processor Socket': 'Socket AM4', 'Form Factor': 'Mini ITX', 'Processor Supported': 'Ryzen 3Ryzen 5Ryzen 7Ryzen 3 PRORyzen 5 ProRyzen 7 PRORyzen 9', 'Total Processor Supported': '1', 'Controller Type': 'Serial ATA/600', 'Maximum Memory Supported': '64 GB', 'Audio Channels': '7.1', 'Wireless LAN': 'Yes', 'Number of Network (RJ-45) Ports': '1', 'Number of USB 2.0 Ports': '2', 'Number of Onboard USB 2.0 Ports': '2', 'Memory Speed Supported': '4733 MHz4666 MHz4600 MHz2667 MHz3200 MHz2933 MHz2400 MHz2133 MHz4533 MHz4466 MHz4333 MHz4200 MHz3800 MHz3466 MHz3600 MHz3733 MHz3866 MHz4000 MHz4133 MHz4266 MHz4400 MHz', 'Width': '6.7"', 'Depth': '6.7"', 'Product Model': 'B550M-ITX/ac', 'RAID Levels': '0101', 'Brand Compatibility': 'AMD', 'Manufacturer': 'ASRock Inc', 'Manuf Part#': 'B550M-ITX/AC', 'Price': '$110.13', 'Availability': 'In Stock'}
