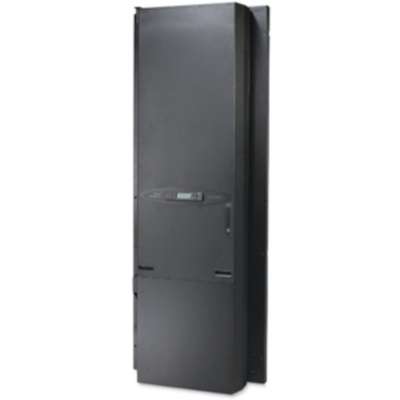

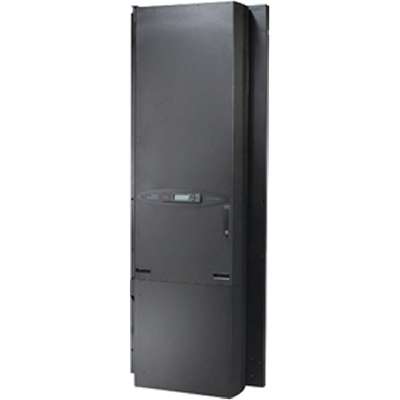

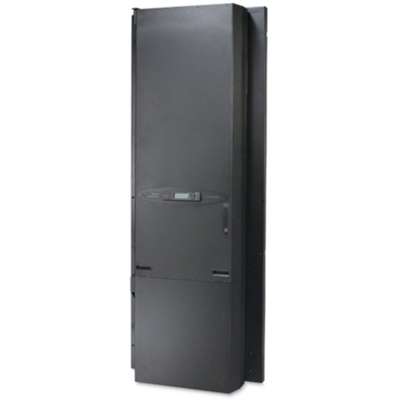

APC Rack Air Removal Unit 100-240V 50/60Hz for NetShelter SX 750mm

The "NetworkAIR Air Distribution Unit" is a unique 2U rack-mounted fan tray product that works with an existing precision air conditioning system to deliver cool air to the equipment contained in a rack enclosure. The Air Distribution Unit connects into the raised floor and pulls supply air directly into the enclosure thereby preventing the conditioned air from mixing with warmer room air before it reaches the equipment. In environments without raised floors, the Air Distribution Unit pulls supply air from around the bottom of the enclosure where the air is the coolest. With dual fans, the unit works to eliminate dangerous hot spots by boosting airflow within the enclosure and improves air delivery in poor static pressure areas, solving many of the heat issues today's data center manager faces.
See all products
ACF402 Air Cooling System
Documentation CD
Installation Guide
Operations and Maintenance Manual
Product Name: Rack Air Removal Unit 100-240V 50/60Hz for NetShelter SX 750mm
Product Type: Airflow Cooling System
Product Color: Black
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Application / Usage: IT
Additional Warranty Information: 1 year (parts only)
Environmentally Friendly: Yes
Maximum Air Flow: 1600 CFM
Cooling Power Consumption: 16.50 kW
Color Family: Black
Height: 75.5"
Width: 29"
Depth: 10"
Product Model: ACF402
Power Consumption: 1200 W
Input Voltage: 100 V AC120 V200 V AC208 V AC230 V AC
Limited Warranty: 1 Year
Receptacle Type: IEC 60320 C14
Plug Type: NEMA 5-15P
Green Premium: Yes
REACH Declaration URL: https:// checkaproduct.se.com / DistantRequestDispat cher.aspx?action=exp ortPdfReach&pid=6503 3146&lang=en-us
EU RoHS Declaration URL: https:// checkaproduct.se.com / DistantRequestDispat cher.aspx?action=exp ort&pid=65033146&lan g=en-us
Environmental Profile Availability: https:// download.schneider- electric.com/ files?p_enDocType=En vironmental+Disclosu re&p_Doc_Ref=ENVPEP1 512008
End of Life Manual Availability: https:// download.schneider- electric.com/ files?p_enDocType=Ci rcularity+Profile&p_ Doc_Ref=ENVEOLI15120 08_EN
REACH free of SVHC: Yes
Lead Free: Yes
Indicators & Controls: Multi-function LCD status and control console
Certifications & Standards: cUL Listed|CE|UL Listed|VDE
Manufacturer: APC
Manuf Part#: ACF402
Price: $3155.50
Availability: Special Order
