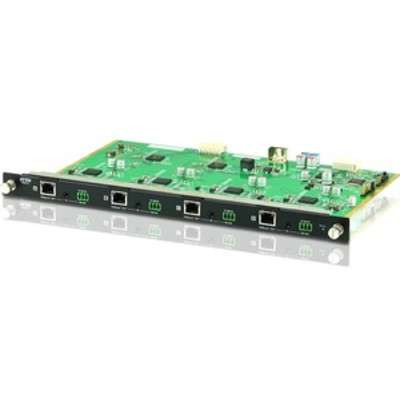

ATEN 4-Port HDBaseT Output Board

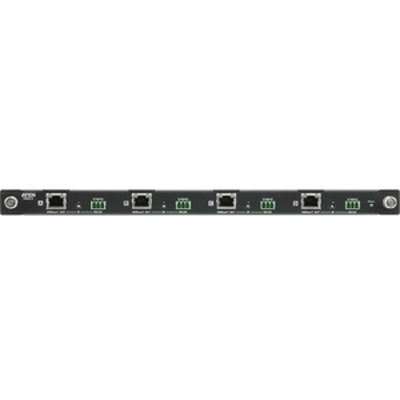

Front View
4-port HDBaseT Output Board that is compatible with the VM1600/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
HDBaseT Connectivity - extends 4 HDBaseT connections up to 100 meters via single Cat 5e/6 cable
HDBaseT Anti-jamming - resists signal interference during video transmission using HDBaseT technology
Connected to VE805R:Seamless Switch™ - features close-to-zero-second switching, continuous video streams, real-time switching and stable signal transmissions, Video Wall - features configurable video wall profiles for custom layouts via point-n-click web GUI
Bi-directional IR channel - IR transmission is processed one direction at a time
Hot-swappable design for easy integration of I/O boards
4-Port HDBaseT Output Board
4 x Terminal Block Connectors
1 x IR Transmitter
1 x IR Receiver
1 x User Instructions
Product Name: 4-Port HDBaseT Output Board
Product Type: HDBaseT Output Board
Environmental Compliance: Restriction of Hazardous Substances (RoHS)Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
Product Model: VM8514
Environmentally Friendly: Yes
Product Material: Metal
Height: 0.9"
Width: 9.4"
Form Factor: Rack-mountable
Length: 13.9"
Packaged Quantity: 1
Limited Warranty: 3 Year
Material Details: Metal - Housing
Manufacturer: ATEN
Manuf Part#: VM8514
Price: $1655.10
Availability: Special Order
